Viscount Ensign Compact 45

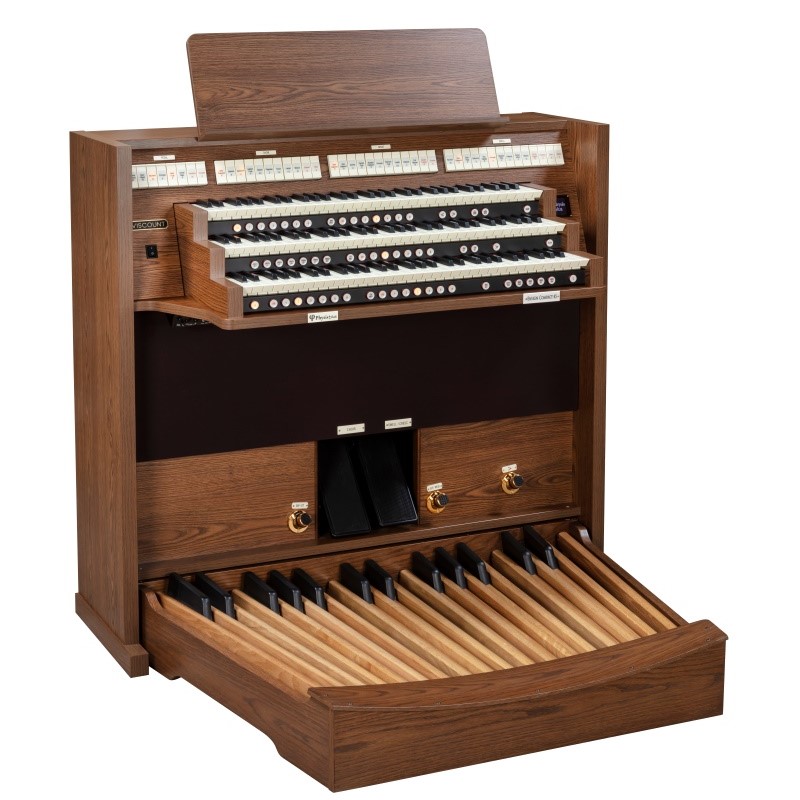

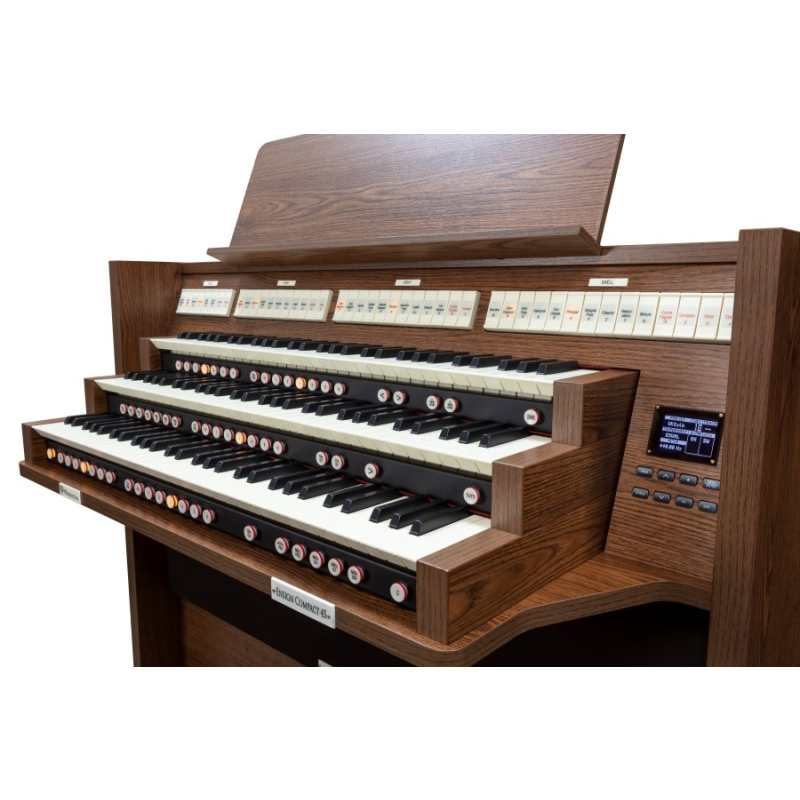

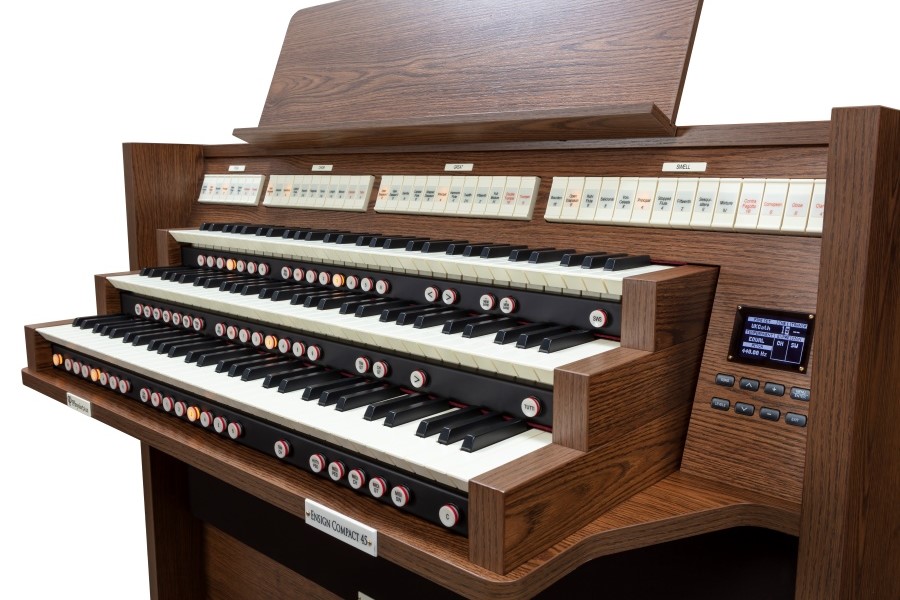

The Ensign Compact 45 is a high specification, yet compact 3-manual organ with 30-note pedal board.
With a comprehensive English stop list of 45 speaking stop tabs it combines great versatility but with the smallest 3-manual footprint possible.
Using our Physis Plus modelling technology, the Ensign Compact 45 benefits from a larger internal audio system which includes 2 x 10” woofers for an exceptional bass response.
It is available in Dark & Light oak simulated wood finishes.
Features

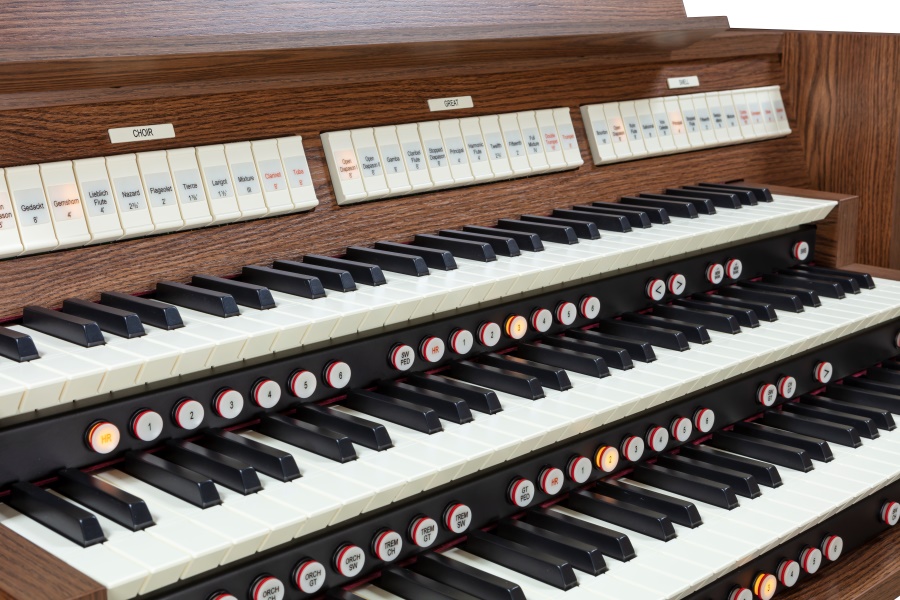

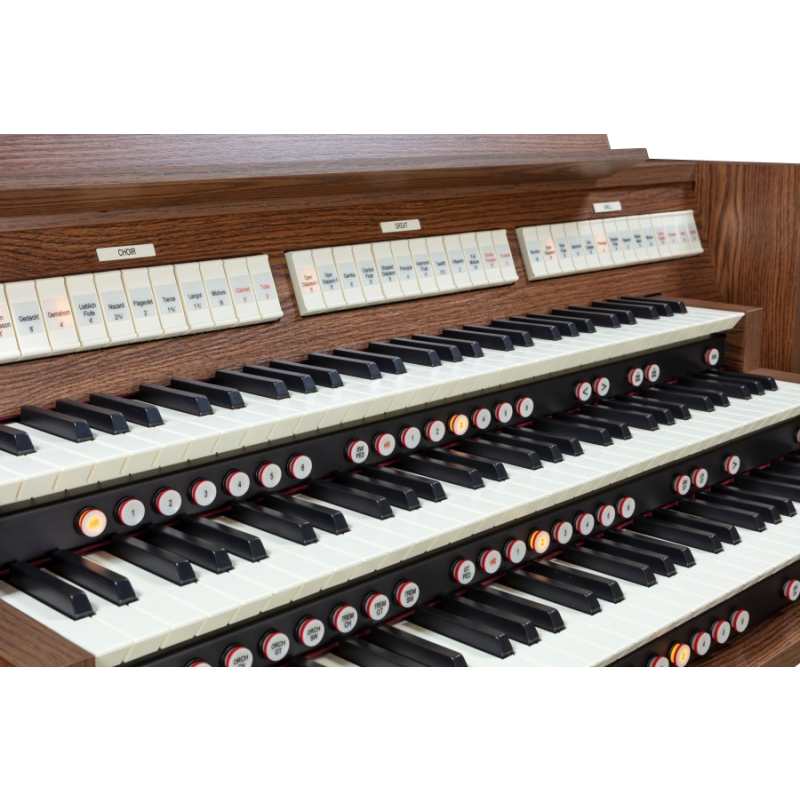

3 x 61 note tracker touch keyboards, velocity sensitive for MIDI & orchestral voices

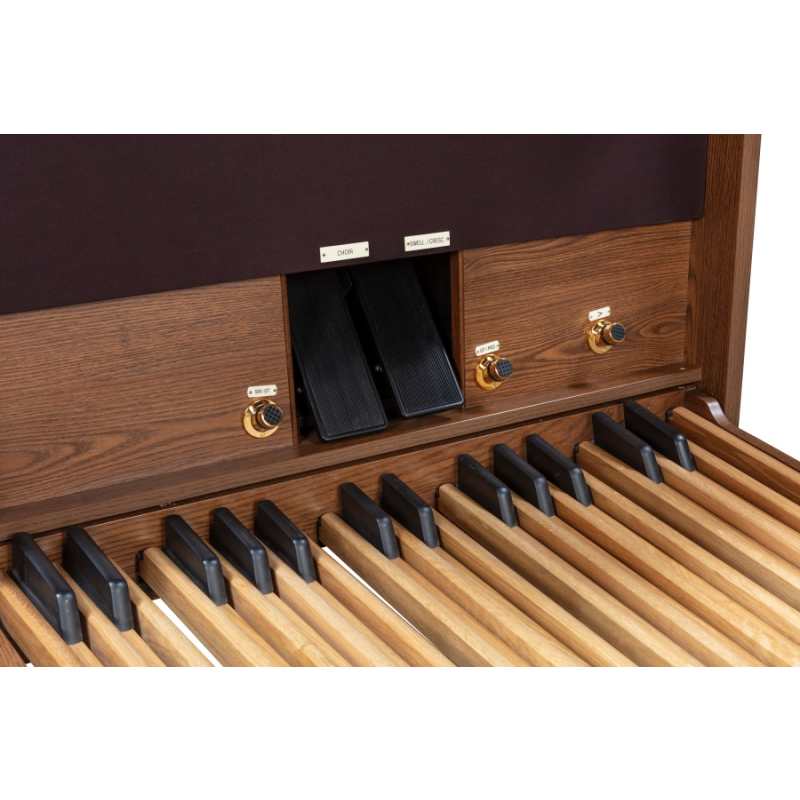

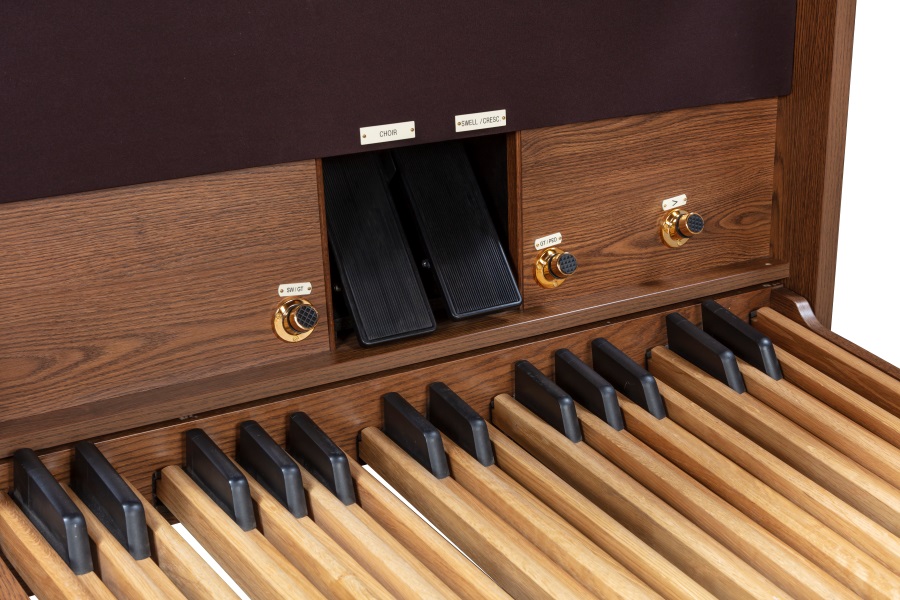

30 note radiating concave pedal board

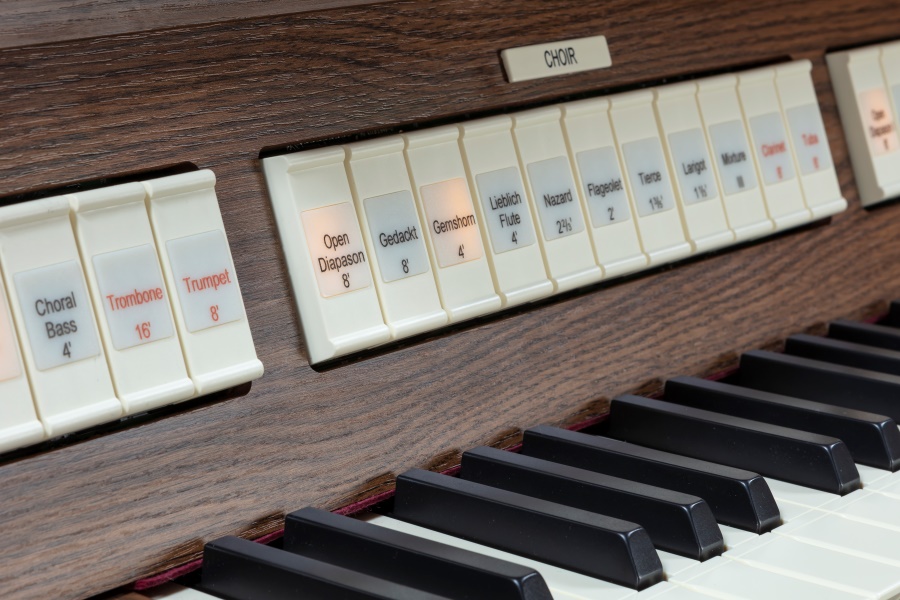

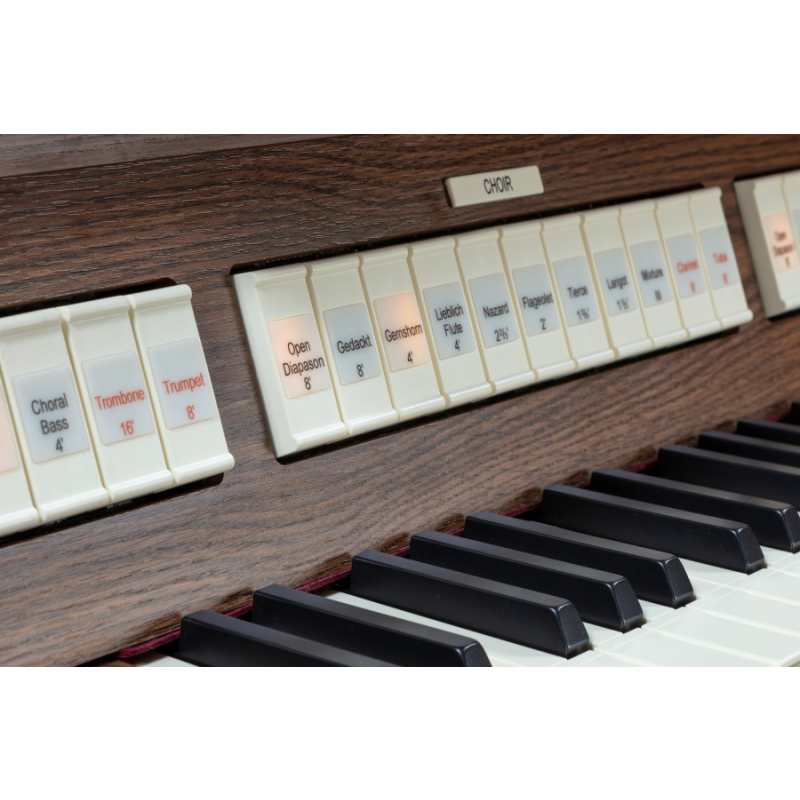

45 tilt-tab speaking stops and 4 orchestral pistons
Alternative organ voices on each tab
English, Baroque, Romantic & Symphonic pipe sets + 3 user sets
19 alternative temperaments + 4 user programmes
Playing Aids
Swell & Choir expression pedals

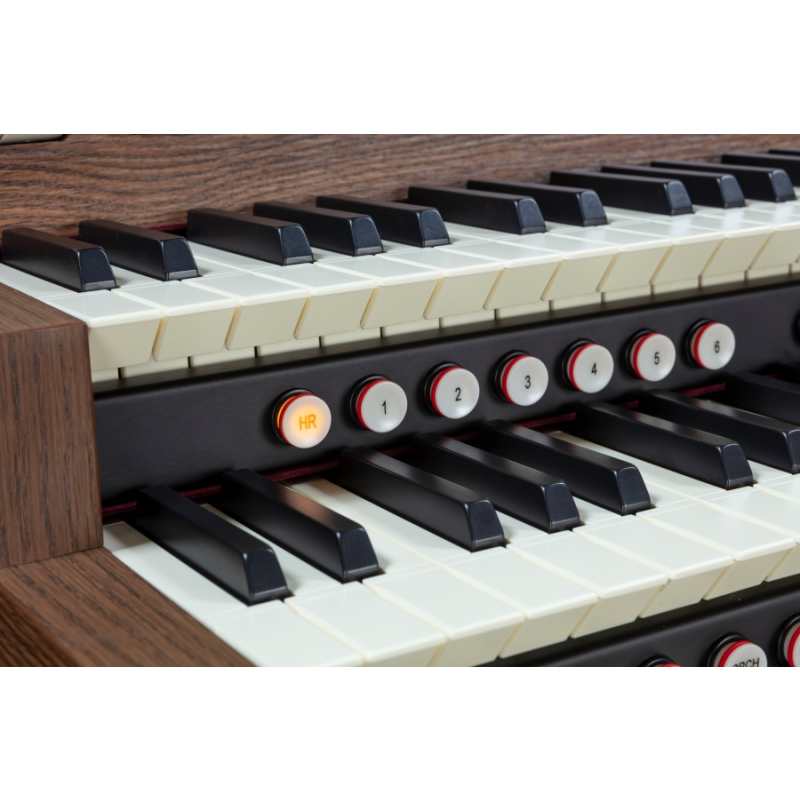

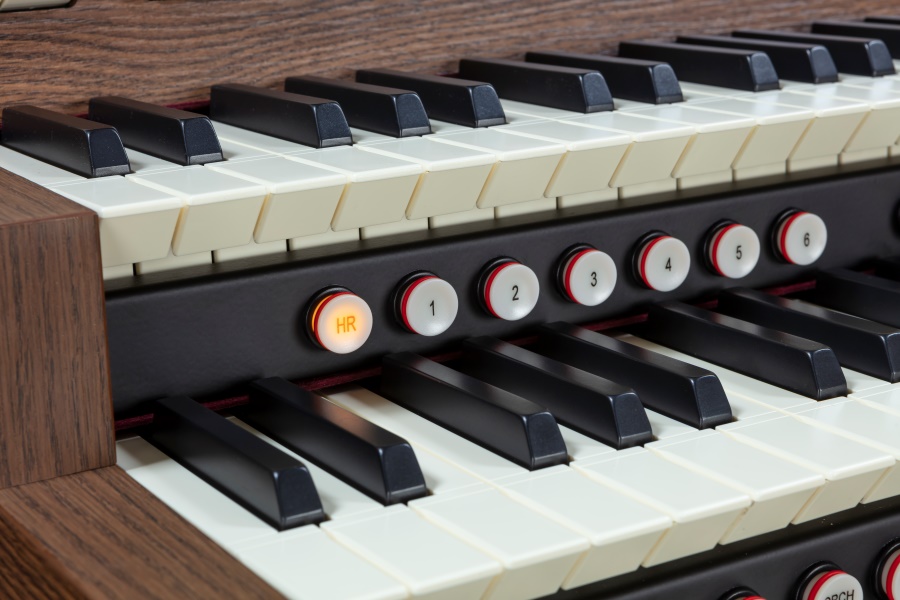

6 general pistons
6 divisional pistons to Sw/Gt/Ch/Ped
< > stepper pistons
Sw/Gt, Gt/Pd, Next toe pistons
99 Capture memories
Auto pedal piston
2 Independent tremulants per division
Transposer + temperaments
Keyboard inversion
Dimensions
126cm (W) x 118cm (H) x 113.5cm (D) with pedal board (63cm without pedal board)
Weight 119KG
Audio
Stop by stop voicing
Independent volume adjustment of each division and stop
6 internal speakers (2 tweeter, 2 mid-range, 2 x 10′ sub-woofer)
4 x 150W per channel amplifiers
5 band graphic EQ
8 reverb types – fully adjustable
Stereo headphone socket
External outputs to 4 channels
Audio inputs L/R
MIDI in/out
USB type A & B
Pedal | Great | Swell | Choir | ||||
---|---|---|---|---|---|---|---|
Contra Violone | 32 | Open Diapason I | 8 | Bourdon | 16 | Open Diapason | 8 |
Open Wood | 16 | Open Diapason II | 8 | Open Diapason | 8 | Gedackt | 8 |
Bourdon | 16 | Gamba | 8 | Rohr Flute | 8 | Gemshorn | 4 |
Principal | 8 | Claribel Flute | 8 | Salicional | 8 | Lieblich Flute | 4 |
Bass Flute | 8 | Stopped Diapason | 8 | Voix Celeste | 8 | Nazard | 2-2/3 |
Choral Bass | 4 | Principal | 4 | Principal | 4 | Flagelot | 2 |
Trombone | 16 | Harmonic Flute | 4 | Stopped Flute | 4 | Tierce | 1-3/5 |
Trumpet | 8 | Twelfth | 2-2/3 | Fifteenth | 2 | Larigot | 1-1/3 |
Fifteenth | 2 | Sesquialtera | II | Mixture | III | ||
Full Mixture | IV | Mixture | IV | Clarinet | 8 | ||
Double Trumpet | 16 | Contra Fagotto | 16 | Tuba | 8 | ||
Trumpet | 8 | Cornopean | 8 | ||||
Oboe | 8 | ||||||
Clarion | 4 | ||||||
Great to Pedal | Tremulant | Tremulant | Tremulant | ||||
Swell to Pedal | Swell to Great | Swell to Choir | |||||
Choir to Pedal | Choir to Great |
