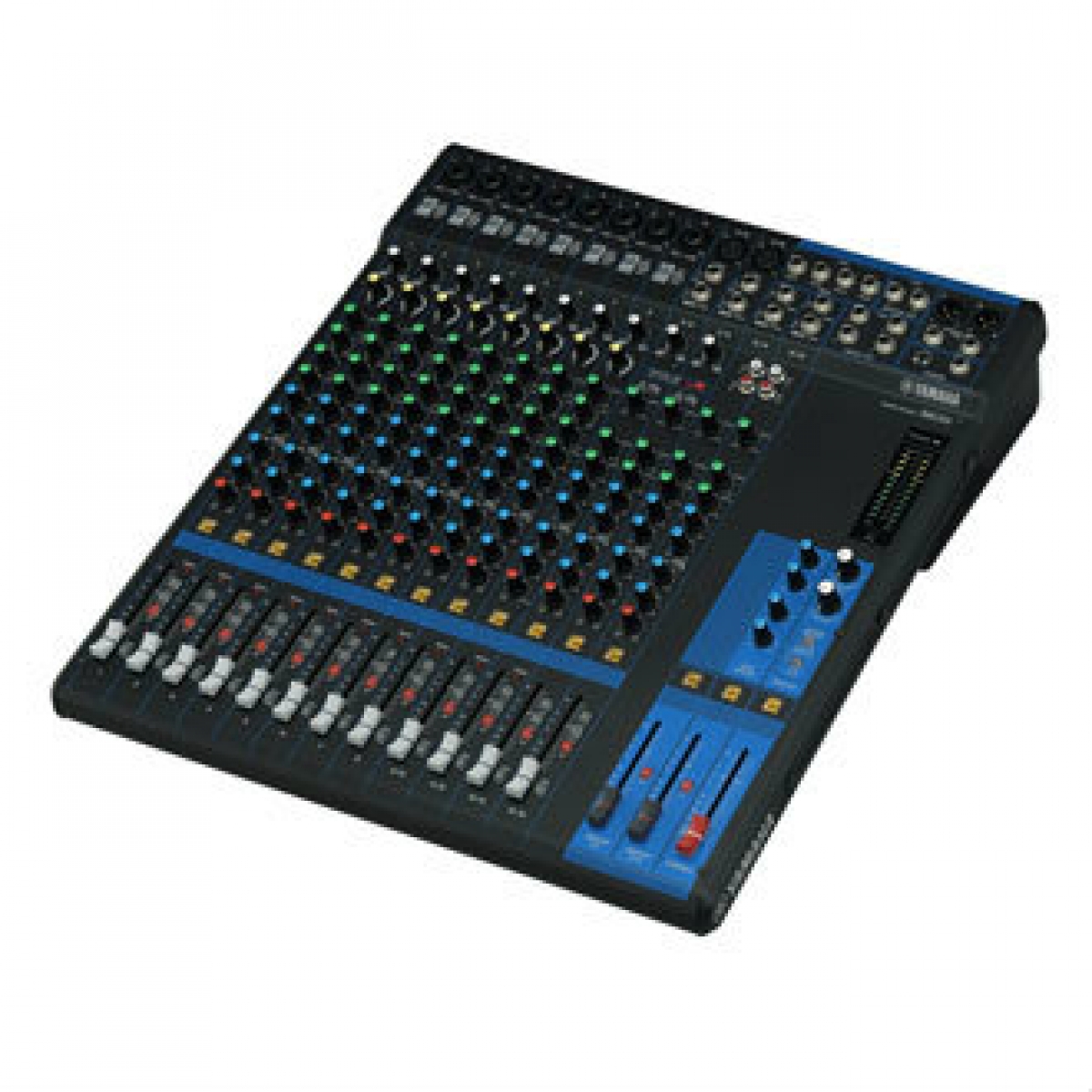

Yamaha MG16 Mixer

Yamaha MG16 Mixer


16 Chanel Mixing Console.
Key Points
  • 16 Channels
  • 4 AUX (incl. FX)
  • 10 Mic/16 Line Inputs
  • 4 Group Buses


Manufacturer: Yamaha
Availability: In Stock
Normally: £432.00
Discount Price: £366.00
Share |

Normally £432.00
Saving you £66 (15% Off)
BUY IT NOW FOR £366.00 Add to Cart

Yamaha MG16 Mixer

16 Chanel Mixing Console.

  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • 6.6 kg (14.6 lbs.)



Outline

I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 8
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4
Bus Stereo: 1, GROUP: 4, AUX: 4
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping

General specifications

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 30 W
Dimensions W 444 mm (17.5")
H 130 mm (5.1")
D 500 mm (19.7")
Net weight 6.6 kg (14.6 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
Others Operating Temperature: 0 to +40˚C



Important Note
Price errors and omissions excepted - An order is considered finalised on dispatch. No monies are debited from your card until the item is in stock or by prior arrangement.

#
