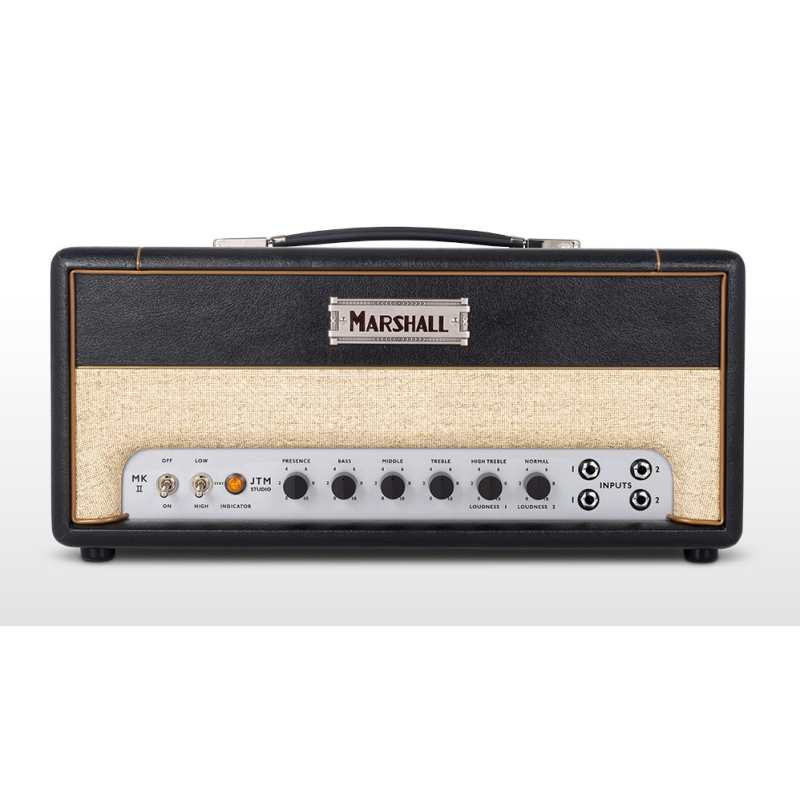

Marshall JTM ST20H 20 Watt Amp Head Made in the UK
The unrivalled number one is here, just smaller. Reproducing the legendary, warm and smooth tones of the original Marshall JTM, the Studio JTM packs a punch. Swap between 20W and 5W at the flick of a switch and let the era-defining sound of the JTM steal the show, whether it’s playing at home, or on stage. Make sure to pair the ST20H with one of our Studio cabinets for a small but perfectly formed Marshall rig.
KEY FEATURES
OUTSTANDING MARSHALL SOUND
An unmistakable sound that is recognised all over the world, the ST20H is a loving homage to the amp that responded to the rock’n’roll revolution. From its legendary warm and smooth tone to blending the voices for a combination of crunch and clean, the ST20H brings the outstanding sound that Marshall is so well known for.
POWER REDUCTION
Whether you’re playing at home or an intimate gig, swap between 20W and 5W at the flick of a switch thanks to built-in power reduction technology. The 5W mode allows playing at a lower wattage without compromising on tone.
COMPACT WITHOUT COMPROMISE
Accurately recreating the iconic look seen across thousands of stages over the years, the ST20H has the power of a classic Marshall amp in a new, more compact design. Packed with the same vintage tones you know and love, just in a smaller package. Features such as a DI out and FX loop have been added, bringing the JTM into the present day.
UK-MADE AND ALL-VALVE
Handmade in the same UK factory that has been manufacturing Marshall amps since the late 60s, the ST20H is built on decades of experience with expert craftsmanship at the very heart. Loaded with two ECC83 preamp valves, two 5881 power amp valves and one ECC83 phase splitter, the ST20H takes you right back to the renaissance of rock’n’roll.
TECHNICAL SPECIFICATION
GENERAL
Model
ST20H
Range
Studio
Technology
Valve
Channels
1 with 2 voicings
ELECTRONICS
Output wattage
20W (with power reduction option to 5W)
Outputs
5 x 1/4” jack sockets (16Ω load / 8Ω load / 4Ω load)
Inputs
4 x 1/4″ jack instrument inputs (high/low sensitivity)
Controls
Treble, Middle, Bass and Presence
Effects
None
Effects loop
Yes, send/return
VALVES
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x 5881
ACCESSORIES
Cable
Detachable power cable included
Cable
Speaker cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
9.25kg / 20.4lbs
Width
500mm / 19.7″
Height
240mm / 9.4″
Depth
230mm / 9.1″
