Viscount Cantorum Duo
The new Cantorum Duo is a 2 manual portable organ by Viscount. The last addition of the world acclaimed Cantorum line, offers 30 voices, convenient stop tab arrangement and built in amplification, providing everything at your fingertips to experience the latest sampled sound technology available in a digital organ.The superb sound and the contemporary aesthetic make this genuine Viscount organ a remarkable yet affordable instrument. Whether you are a quality-conscious church or an organist on a limited budget, the Cantorum Duo is now available in any situation. The compact but sturdy cabinet is easy to move and allows you to use the instrument in a fully multifunctional way.
SPECIFICATIONS
Technology ARTEM technology
Manuals 2 x 61 notes
Keyboard Midi Velocity ●
Pedalboard style –
Register Control Tilt Tab
Internal Amplification 2 x 40 Watt
Speakers 4
STOPS & VOICES
Pedal 5
Great 10
Swell 12
Orchestral Voices 3
Total Voices 30: 27 classic, 3 orchestral
Styles 4 (Baroque, North German Barock, Romantic, Symphonic)
Orchestral Alternative Voices ●
General Pistons 6
Memory Bank 16
Total Memories 96 General
Piston Sequencer Prev – Next Thumb Pistons
ACCESSORIES
Toe Pistons no
Automatic Pedal ●
Enclosed Piston ●
Couplers 3 : I/P, II/P, II/I
Transposer -6/+5 semitone
General and Reverb Volume ●
Orchestra and Midi Sustain Input Jack for sustain pedal
DISPLAY
Display 128 x 64 dots Graphic with Backlight
Voice Balancing ●
Divisional Volume ●
Tremulant 2 Independent
Reverb 8 Types
Adjustable Ensemble Effect ●
Historic Temperaments 17
Short Octave ●
Keyboards Inversion ●
Piston Combine –
Programmable Output Routing ●
External Output Volume Control ●
7 Bands Equalizer on External Outputs 2 independent for OUT1 and OUT2
7 Bands Equalizer on Internal Amplification ●
Midi Programmable ●
Sequencer ●
Demo Songs ●
File Management Load, Save
Lock Organ With Password
INTERFACE
Midi In, Out
Stereo Headphone Output ●
Stereo Aux Input ●
External Output 4 (2 stereo)
USB for Pen Drive ●
CONSOLE
Cabinet Features Elegant wooden console , music rack
Colours / Finishes Light oak simulated wood
Dimensions without music desk and pedalboard (WxHxD) 90 x 19 x 48 cm / 35.4″ x 7.5″ x 18.9″
Weight 19,7 Kg / 43.43 Lbs
Cabinet
Fine Italian Craftsmanship at an Exceptional Price

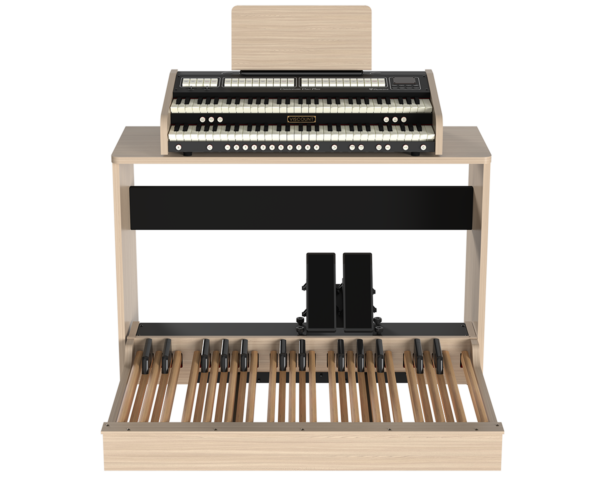

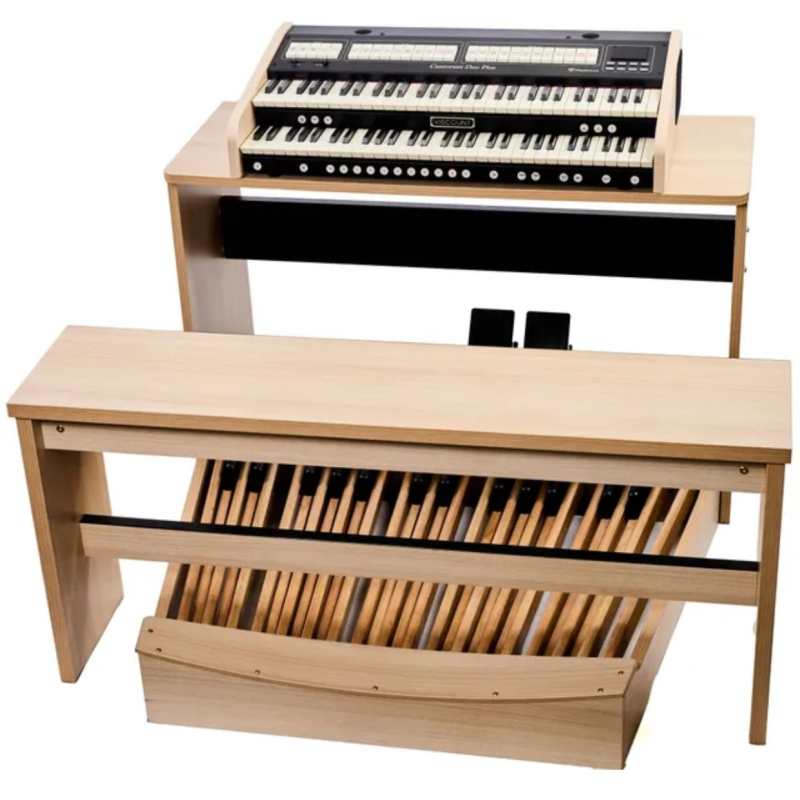

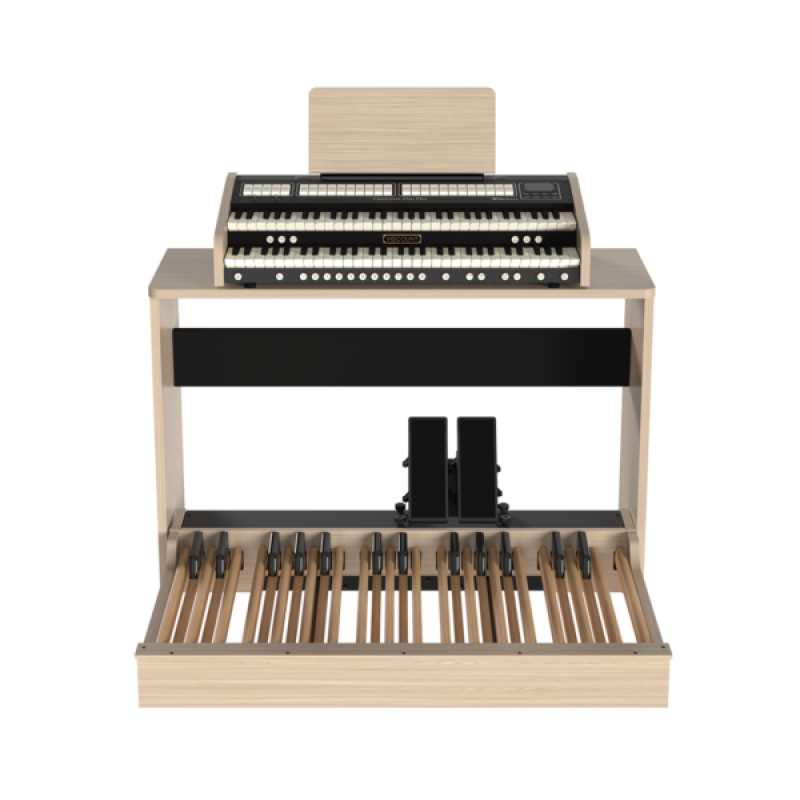

The Cantorum Duo’s compact portable organ comes with a lightweight-but-sturdy cabinet, cleverly designed to make the instrument aesthetically convincing and easy to carry on. Wooden stand and expression pedals are available as option.
User Interface
The rocker tabs, pistons and display provide effective control over the entire instrument.
The thumb pistons and rocker tabs that are used to control the organ’s voices have been ergonomically designed to respond quickly and easily to the demands of the player. The display is conveniently located on the right of the instrument with its own set of easy to use controls. There are six pistons available for general memories which are carefully positioned on the instrument to allow a wide range of possibilities and personalisation, all at your fingertips.
Keyboard
High-Quality Tracker Action Keyboards
The Cantorum Duo is equipped with 2 x 61 notes “Tracker Action” keyboards. We understand the importance of having the right feel to the organ keyboard so have taken the utmost care in using the very best components. The feel of the keys conveys the touch of a true Tracker Action. When using MIDI and Orchestral Voices, the keys instantly become touch sensitive and give the player the ability to be more expressive musician that you are.
Sound Generation
Powered by Viscount’s newly designed ARTEM Sampling Technology
The Cantorum Duo uses proprietary ARTEM technology (Advanced Real TEchnology Music).
– Advanced, we have advanced our sampling and computation capabilities.
– Real, the resulting sound is exactly like a real pipe organ.
– TEchnology, we use state of the art digital sound generation technology.
– Music, for more than 100 years music has been our passion.
This powerful sampled sound generator has been designed by Viscount in Italy to faithfully reproduce the authentic sound and performance of a traditional pipe organ.
The Cantorum Duo is equipped with 108 sampled stops and 15 orchestral voices arranged in four banks, each with 27 own unique set of voices. These enable you to choose between Baroque, North German Baroque, Romantic and Symphonic. You can easily select the various styles as well as create your preferred acoustic environment.
The Cantorum Duo offers a choice of eight different acoustic room models. You can therefore select the optimum ambience for your style of playing by matching the acoustic environment to the historic organ of your choice.
Amplification
High Fidelity Amplification
The internal amplification of the Cantorum Duo has been designed to give you an incredibly large and robust sound right out of the box. It’s also designed to give you remarkable sonic excellence right down to the lowest frequencies, even whilst set at the lowest volumes for small spaces. The 4 speakers are driven by a 2 channel amplification system: 2 x 40 Watt.
Audio outputs are available to connect additional external amplification, should this organ be installed in a church, or to give an even more pipe-like experience in the home. The Cantorum Duo also includes a headphone socket should you ever need to play in total silence.
Connections
Extensive Connections
An extensive selection of external connections is located on the rear of the instrument. In addition to the standard connections, MIDI In-Out, headphones and mini-jack stereo inputs, dual audio output, there is also USB pen drive to save and upload sound settings, and for MIDI song recording and playback. The external audio can be adjusted with independent 7-band audio equalizers for each channel.
Master volume and reverb controls are conveniently located on the left of the front panel.
Colours / Finishes
Light oak simulated wood
Dimensions
Footprint of the full set up is W 123cm x D 109cm (without bench)
