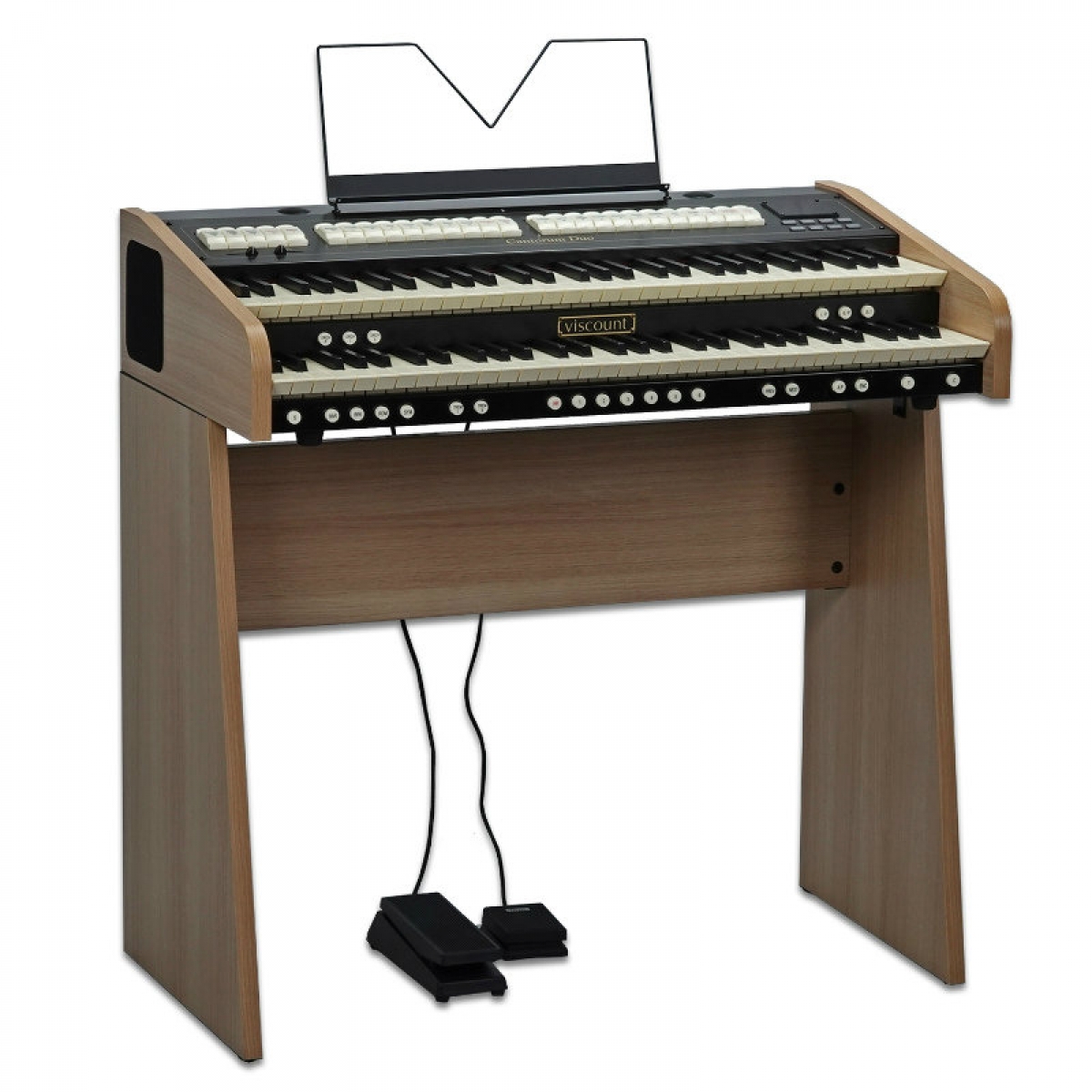

Viscount Cantorum Duo PLUS & Stand & Volume Pedal
CANTORUM DUO PLUS
Cantorum Duo Plus is a portable two-manual organ, powered by Viscount’s patented Physis Plus technology . It features 27 registers and 3 orchestral voices with integrated amplification that guarantees unique sound quality. These features, combined with contemporary aesthetics, make it the perfect portable solution, without having to give up the quality that distinguishes Viscount products.
DESCRIPTION
Cantorum Duo Plus is a fully portable 2-manual organ, with 27 stops and 3 orchestral voices.
It features the patented Viscount Physis Plus technology , the natural and powerful evolution of the well-known Physis (Physical modeling) technology, capable of faithfully reproducing the authentic sound and performance of a traditional pipe organ.
The organist can choose between three different pipe sets (Baroque, Romantic and Symphonic) and create their own preferred audio environment through acoustic modeling.
The organ’s settings are easily accessible, modifiable and memorized through the enhanced graphic display located on the front panel; while the free Editor allows you to modify, adjust and customize the Cantorum Duo Plus providing numerous functions for organ voicing, routing and much more.
To increase the flexibility and mobility of the Cantorum Duo Plus you can add a wide range of optional accessories, such as stands, benches, pedal boards, pedals and powerful external amplifiers.
SPECIFICATIONS
CHARACTERISTICS
Technology Physis Plus Physical Modelling
Manuals 2
Total logs 27 Organ Stops + 3 Orchestral Voices
Pedal 5
HANDS 10
MAN II 12
Alternative organ voices 5 for each scale
Alternative orchestral voices More than 30 in total
Unions 3
General memoirs 1000 (000 – 999)
Memory Sequencer Two pistons
Pipe Sets Baroque, Romantic, Symphonic
DIMENSIONS
Height (excluding music stand) 19 cm – 7.5″
Height (including music stand) 43 cm – 16.9″
Length 90 cm – 35.4″
Depth (Pedalboard excluded) 48 cm – 18.9″
CABINET
Laminated wood Light oak
DISPLAY
Display dimensions 128 x 64 dot graphics with backlight
Sound recordings Available
Divisional Volume Available
Tremolo 2 independent for each division
Reverb 8 presets
Ensemble effect Adjustable
Temperaments 19 historical + 4 programmable
Short Eighth Available
Keyboard inversion Available
Internal Routing Programmable for each register
Internal Equalizer 5 Band Graphic EQ
MIDI Sequencer Available
File Manager Load, Save, Backup, Restore
MUSIC STAND
Wooden lectern Metal and laminated wood
MANUALS – KEYBOARDS
Standard Keyboards Available
Black Plastic Keyboard Covered in Solid Wood Optional
PEDAL BOARD
32 Notes Straight Concave or Flat, Radial Concave Optional
30 Notes Straight Concave or Flat, Radial Concave Optional
EXTERNAL EXITS
Channels 4 programmable
Assignable Channel Voice, General, Reverb
Equalizer 5 Band Graphic EQ for each channel
Routing Programmable for each register
Volume Adjustable for each channel
REVERB SYSTEM
Reverb 8 new unique presets
Additional Parameters Dry/Wet
Early reflections
Decay Time
Left right Assignable for each external output
SOUND AMPLIFICATION
Internal Amplifiers 2 channels Class-D amplifier 2x40W
Internal Speakers 2 tweeters | 2×5” woofers
