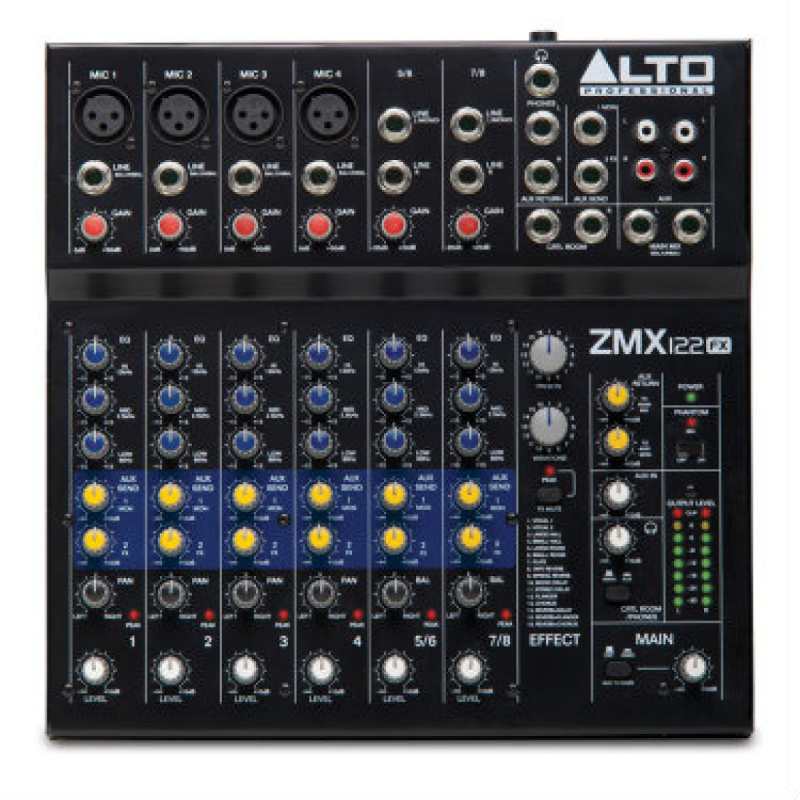

Alto Zephyr ZMX122FX 8 Channel Mixer

Alto Zephyr ZMX122FX 8 Channel Mixer


Features four microphone inputs with balanced TRS jacks (two Phantom Power), three-band EQ, two AUX sends and more.
Includes Power Supply

Key Points
  • 8 Channel Digital Mixer
  • 12 Total Inputs
  • 265 Onboard Effects
  • Versatile Inputs & Outputs


Manufacturer: Alto
Availability: Check Availability 01524 410202
Discount Price: £119.00
Share |

BUY IT NOW FOR £119.00 Add to Cart

Alto Zephyr ZMX122FX 8 Channel Mixer

Features four microphone inputs with balanced TRS jacks (two Phantom Power), three-band EQ, two AUX sends and more.

8-Channel Compact Mixer with Effects

  • 12 total inputs
  • 4 mic input channels with gold plated XLR and balanced line inputs
  • 2 stereo input channels with balanced TRS jacks
  • Extremely high head room offering extra dynamic range
  • 3-band EQ on each channel
  • Integrated 24-bit Alesis digital effects processor with 256 choices (16 presets × 16 variations)
  • 2 AUX sends pre-channel for external effects and monitoring
  • Main output, control room, and headphone outputs

    Professional Mixing Features
    The ZEPHYR ZMX122FX is an 8-channel, 2-bus mixer with the right amount of inputs, outputs, routing, EQ, and effects for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for things such as audio playback. The ZEPHYR ZMX122FX is the perfect compact take-anywhere professional mixer.

    265 Onboard Effects
    Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit Alesis DSP effects designed in partnership with Alesis. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorusus and more. The ZEPHYR ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound.

    Versatile Inputs and Outputs
    The ZEPHYR ZMX122FX is the swiss army knife your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE inputs. But you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, TV screen, or any number of sources. Choose the ZEPHYR ZMX122FX as the audio central command for your live performances, home studio, or video suite.

    Specs

    • Electronically Balanced, Discrete Input Configuration
    • Frequency Response: 20Hz to 22kHz, +/-1dB
    • Distortion (THD&N): ≦0.005% At + 4dBu, 1kHz
    • Gain range: 0 dB to 50 dB (MIC)
    • Maximum Voltage Gain: 70 dB CH MIC INPUT→MAIN MIX OUT & TAPE OUT, 80 dB CH MIC INPUT→CTRL ROOM & PHONES, 60 dB CH MIC INPUT→AUX SEND
    • SNR (Signal to Noise Rate ): ≧110 dBu
    • Phantom power (Mic Pin2/Pin3 And Pin1): +45V~+49V with switch control
    Line Input:
  • Electronically Balanced (SW to LINE)
  • Frequency Response: 20Hz to 22kHz, +/-1dB
  • Distortion (THD&N): ≦0.005% At + 4dBu, 1kHz
  • Gain Range: 15 dBu to 35 dBu

Stereo Channels: (CH5-8)
Line Input:

  • Electronically Balanced (SW to LINE)
  • SNR (Signal to Noise Rate ): ≧110 dBu
  • Frequency Response: 20Hz to 22kHz, +/-1dB
  • Distortion (THD&N): ≦0.005% At + 4dBu, 1kHz
  • Gain range: -20 dBu to +20 dBu, 60 dB CH LINE→MAIN MIX OUT
  • Maximum Voltage Gain: 20 dB FX RETURN→MAIN MIX OUT, 20 dB RCA TAPE INPUT→MAIN MIX OUT



Impedance



Microphone Input: 3.9k Ohms
All Other Inputs: 10k Ohms or Greater
Tape Out: 1k Ohms
All Other Outputs: 120 Ohms

Equalization
Mono Channels: High ±15 dB @12 kHz, Mid ±15 dB @2.5 kHz, Low ±15 dB @80 Hz
Stereo Channels: High ±15 dB @12 kHz, Mid ±15 dB @2.5 kHz, Low ±15 dB @80 Hz

Alesis DSP Section
A/D And D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Hall, Room, Vocal & Plate REVERBS Mono & Stereo DELAY (max DELAY TIME 650ms) Chorus, Flanger & Reverb MODULATIONS REVERB+DELAY, REVERB+CHORUS, REVERB+FLANGER combinations
Presets: 256
Controls: 256-Posistion PRESET Selector
Crosstalk: Adjacent Input ≦-80 dB @ 1KHz (CH1-6) , Input to Output ≦-75 dB @ 1KHz (STEREO L/R,CH1-4,PAN:panned hard left or right)

Main Mix Section
Tape, Aux, Phones Output
Output level: 0dBu Unbalanced, 1/4" Jacks, Max out +22dBu Unbalanced, 1/4" Jacks Noise (Bus noise): ≦-90dB @ 20Hz~22KHz (channel & MAIN level at 0dB,other at minimum,DSP mute)

Power supply: 18V ~ 1500mA
Rated Power Consumption: 27W
Physical Dimension (W/D/H): 256mm/250mm/72mm
Net Weight: 2.3 kg

Dimensions (WxLxH): 256mm x 250mm x 72mm
Weight: 5.07 lb
