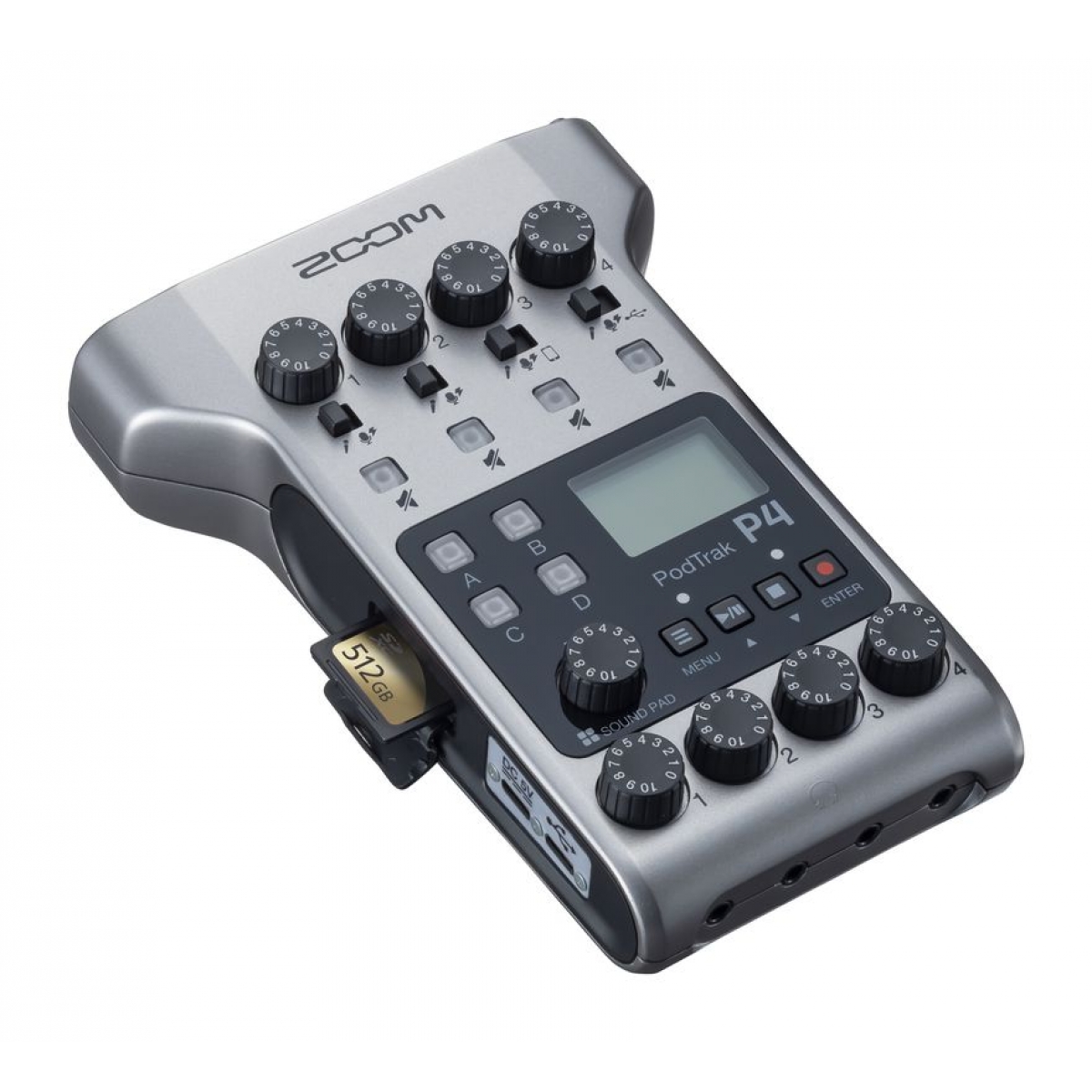

Zoom The PodTrack P4
THE ULTIMATE RECORDER FOR PODCASTING
Compact, affordable, and loaded with features, the PodTrak™ P4 makes it easy to capture professional audio wherever you’re recording your podcasts.
PODTRAK P4 FEATURES
Four mic inputs with XLR connectors
Four headphone outputs with individual volume control
Gain control knobs and mute buttons for each input
Phantom power for all XLR inputs
Automatically prevent feedback from call audio using the Mix-Minus function
Easily connect your phone using the TRRS connection
Trigger sound effects using four assignable Sound Pads with 11preset sounds
All input sources can be recorded on separate tracks
16-bit /44.1kHz audio WAV
Records directly to SD, SDHC and SDXC cards up to 512 GB
2-input, 2-output USB audio interface
Class-compliant mode for iOS compatibility
Up to four hours of use with just two AA batteries or a USB power supply

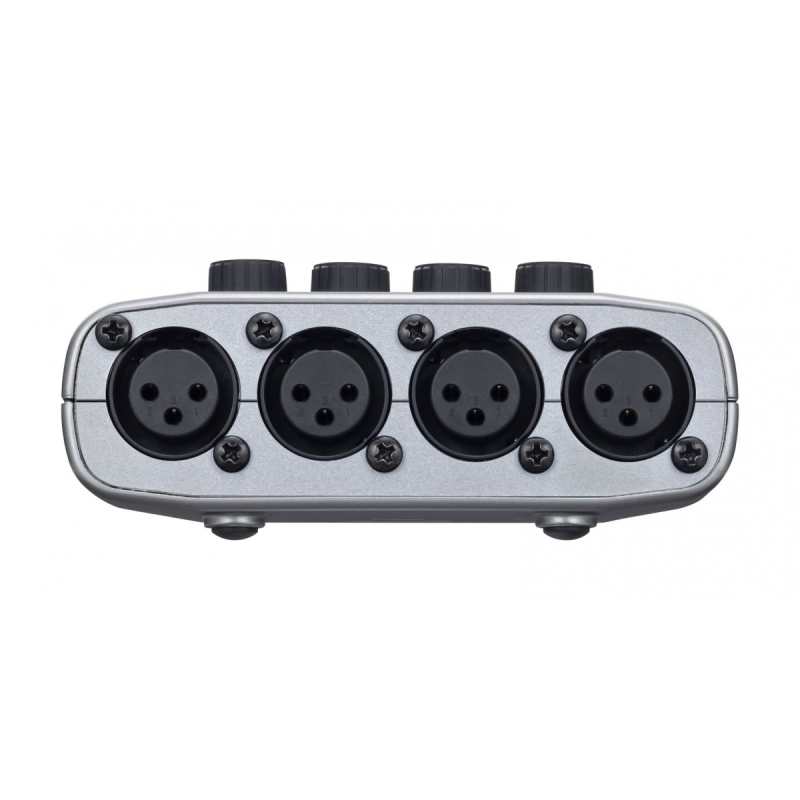

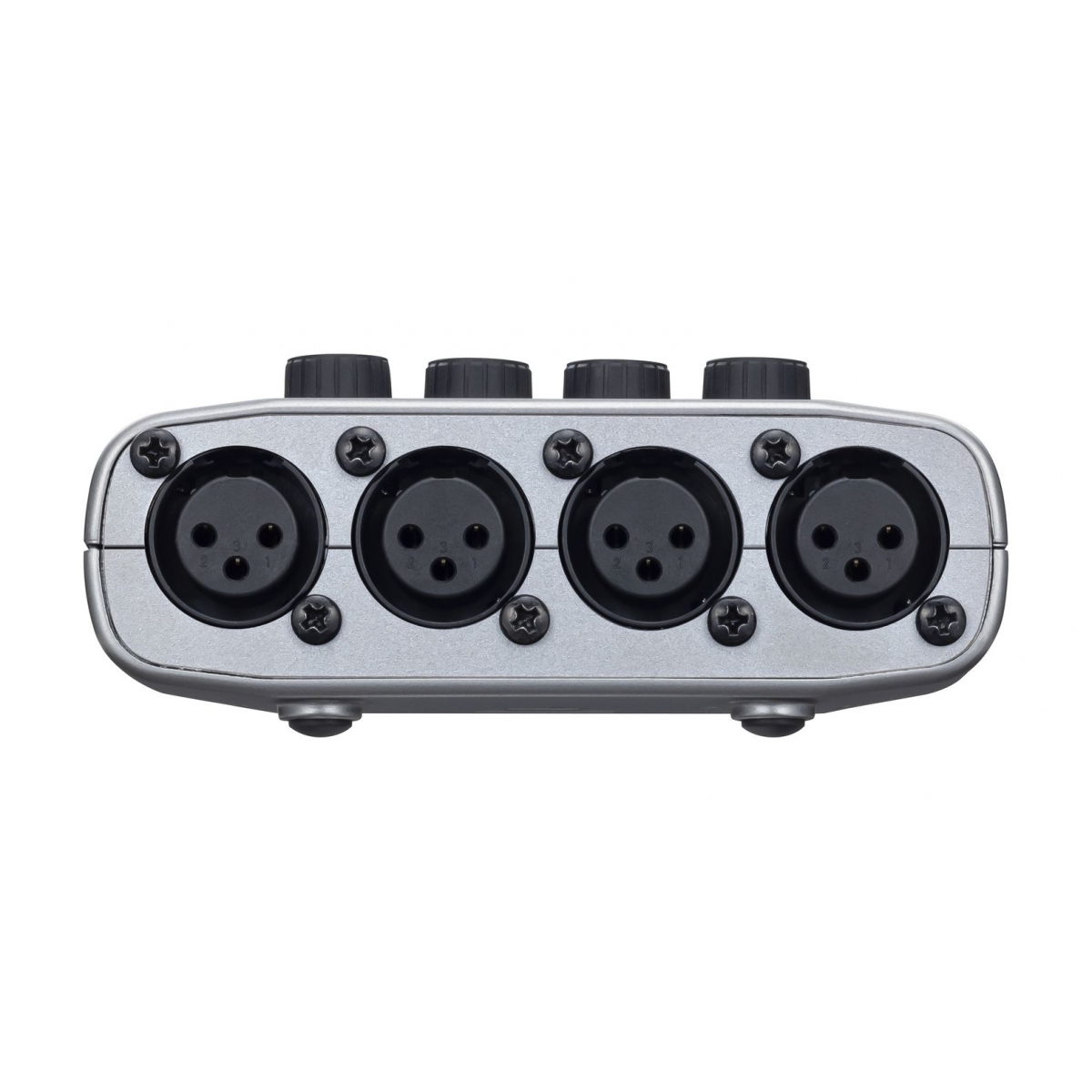

XLR INPUTS
INPUT GAIN CONTROLS
PHANTOM POWER SWITCHES / TRRS INPUT SWITCH / USB AUDIO SWITCH
MUTE BUTTONS
SOUND PADS & SOUND PAD VOLUMN CONTROL
TRANSPORT CONTROLS
HEADPHONE VOLUMN CONTROLS
HEADPHONE INPUTS
TRRS INPUT / BTA-2 INPUT
POWER BUTTON
SD CARD SLOT
USB POWER DC 5V / USB PORT
Tour the PodTrak P4
SPECS
INPUTS & OUTPUTS
NUMBER OF INPUT CHANNELS 4 (mono/stereo)
NUMBER OF OUTPUT CHANNELS 1 (headphone Å~ 4)
CONNECTORS
MIC XLR jacks (2: HOT)
SMARTPHONE CONNECTION JACK TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
USB USB Type-C (audio interface and mass storage functions)
Note: Use a USB cable that supports data transfer. USB bus power is supported.
DC 5 V USB Type-C (for power supply)
HEADPHONES 3.5 mm stereo mini
PHANTOM POWER
PHANTOM POWER +48 V
RECORDER
RECORDER Formats: WAV 44.1 kHz, 16-bit, mono/stereo
Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
64 GB−512 GB SDXC-compliant cards (Class 10 or higher)
AUDIO INTERFACE
AUDIO INTERFACE 44.1 kHz, 16-bit, 2-in/2-out
POWER
POWER 2 AA batteries (alkaline, NiMH or lithium)
• We recommend using NiMH
AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)
EST. CONTINUOUS OPERATION TIME USING BATTERIES Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 9 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
MISC.
EXTERNAL DIMENSIONS 112 mm (W) Å~ 155 mm (D) Å~ 47 mm (H)
WEIGHT (UNIT ONLY) 290 g
