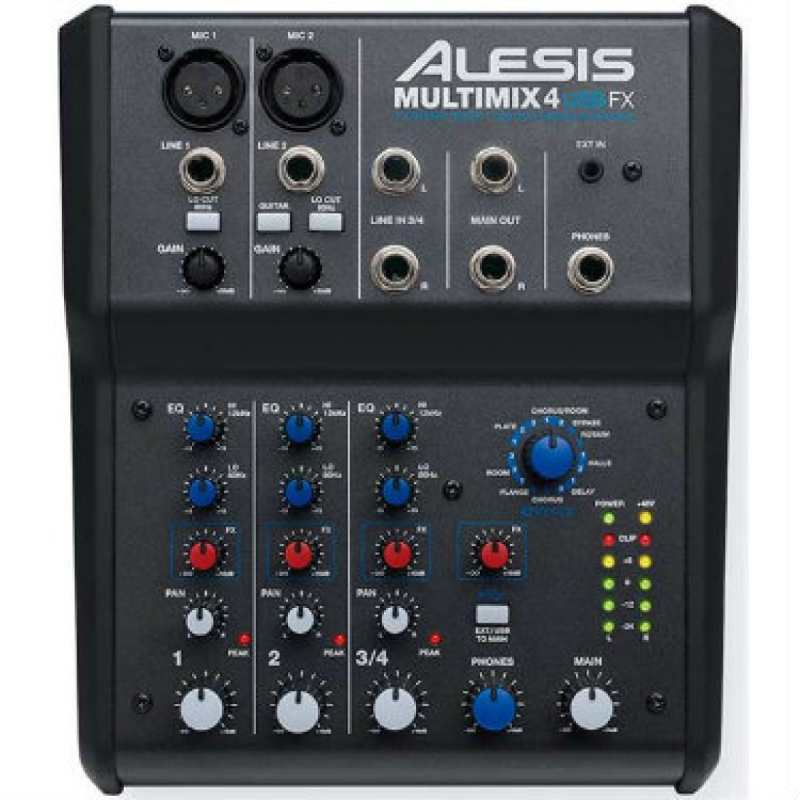

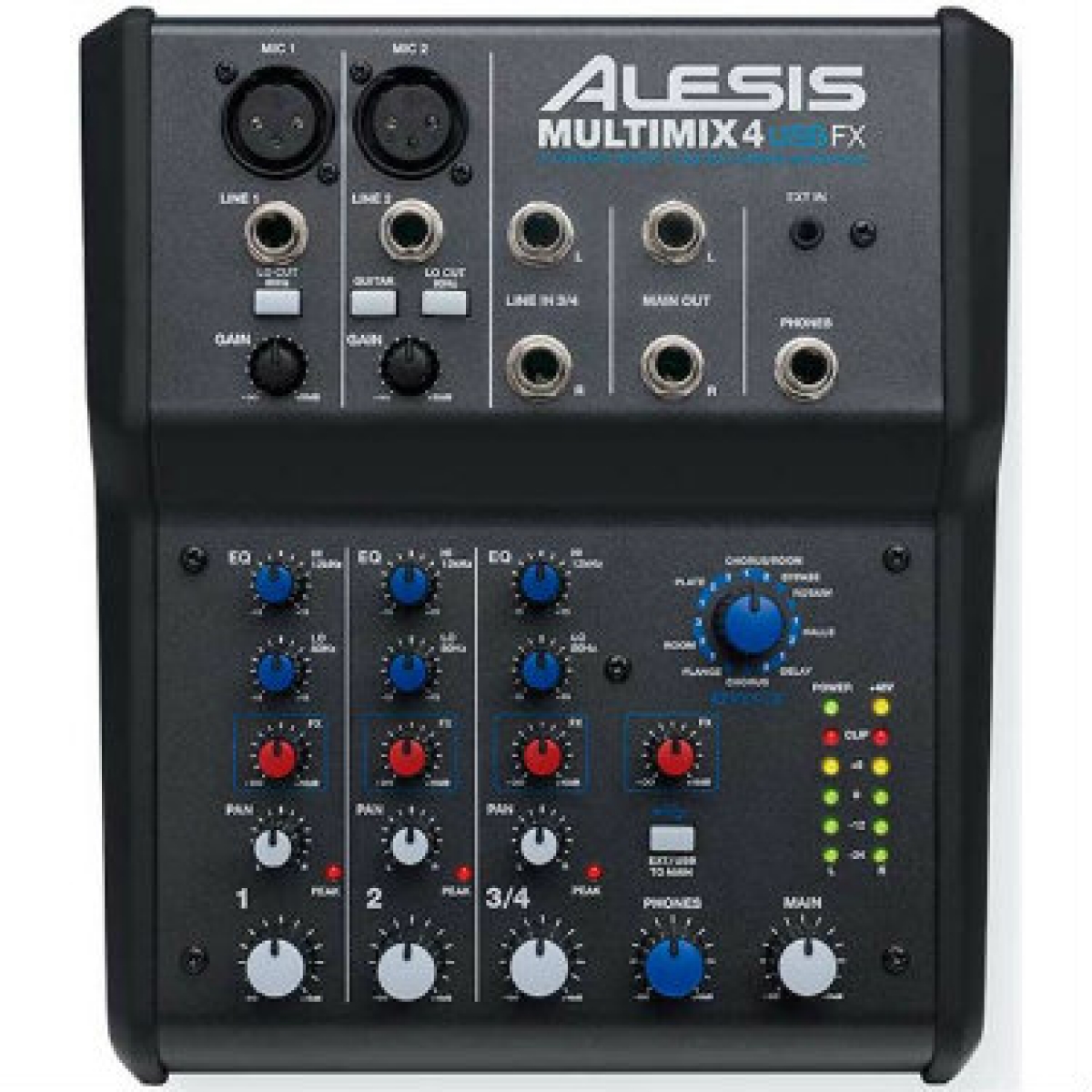

Alesis Multimix 4 USB FX Audio Mixer/Interface


4 Channel Mixer with Effects & USB

Mix live, in the home studio, and record audio directly to a computer.

  • 4 Channel Mixer
  • USB Digital Audio Interface
  • Built-in Effects
  • Compact Size
Out of Stock - 01524 410202
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout

Please note, delivery charge (for UK Mainland Shipping) is £7.67

Desktop audio, solved.

MultiMix 4 USB FX is a four-channel desktop mixer with a USB digital audio interface that lets you mix live, in the home studio, and record audio directly to a computer. This compact mixer is perfect for using in computer-recording setups, intimate live-sound environments, video-editing and production studios, and portable podcasting setups. It outputs line-level analog audio and stereo 16-bit, 44.1/48 kHz digital audio over USB for recording low-noise, CD-quality mixes directly to your Mac or PC.


The MultiMix 4 USB FX mixer has four input channels, all of which can accept a 1/4" line input. You can plug XLR microphones into channels one and two, including condensers thanks to the selectable 48V-phantom power supply. You can also plug a guitar or bass directly into channel one's switchable high-impedance input. A stereo, 1/4" headphone output has its own level control for private monitoring.

* Software package – MPC beats,


Ideal for live sound engineering or home recording, MultiMix 4 USB FX features onboard volume, pan, and EQ controls for making quick, accurate adjustments to your mix. The MultiMix 4 USB FX mixer has a two-channel, five-stage, multicolor LED meter for visual monitoring the main output level. Channels one and two offer switchable high-pass filtering at 75Hz to reduce low-frequency rumble, handling, and wind noise. Channels one and two provide high- and low-shelving EQs, independent gain trims, and have independent pan controls. For convenient stereo mixing and recording, channels three and four are configured as a stereo pair at the level and pan controls.



MultiMix 4 USB FX contains a complete USB recording interface. Plug the MultiMix 4 USB FX’s class-compliant USB connection into your Mac or PC without the need for software drivers and enjoy a digital-direct stereo connection with virtually any audio software application. The MultiMix 4 USB FX enables bidirectional stereo playback, so you can record the stereo Main output into your computer and listen back using the mixer as an interface from software to headphones and monitoring loudspeakers. Cubase 7 LE comes bundled with MultiMix 4 USB FX and gives you a powerful software environment to record, edit, and bounce down your mixes. Plus, you can record stereo audio directly to your iPad with the Apple iPad Camera Connection Kit (sold separately).



MultiMix 4 USB FX comes with high-quality Alesis DSP effects that include spacious reverbs, delays, phasers, and much more. For lush mixes, the internal effects processors enables you to add extra depth to live sound–say, a long delay on the vocalist's channel–or beef up dry recordings with some extra ambiance. Now, you can use professional audio effects with your mixer whether you're out mixing the live gig or at home recording at your desktop.
Otras características:
Balanced line output level: 7 V
Channels quantity: 4
Depth: 19.7 cm
Digital sound processing: 16 bit
Height: 5.08 cm
Input impedance: 10000 Ω
Maximum input level: 4.9 V
Microphone input impedance: 600 Ω
Sample rate: 48 kHz
USB 2.0 ports quantity: 1
Video capability: No
Weight: 680 g
Width: 15.2 cm


        Line (CH 1, 2): 10 KΩ input impedance 5.5 mV ~ 4.9 V RMS sensitivity for max output
        Mic (CH 1, 2): 600 Ω input impedance balanced 700 mV RMS sensitivity for max output
        Line (CH 3, 4): 700 mV RMS sensitivity for max output
        HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB)

        Line: 7 V RMS max
        Headphone: 0.5 W into 47 Ω

    Signal-to-Noise Ratio:
        Line: > 92 dB
        (max output; JIS A-weighted) Mic: > 62 dB

    Distortion: <0.02%
    Frequency Response: Line: 20 Hz – 20 kHz (± 0.5 dB), Mic: 20 Hz – 15 kHz (± 0.5 dB)
    Channel Equalizer: Bass: ± 14 dB @ 80 Hz, Treble: ± 14 dB @ 12 kHz
    Channel Fader Kill: > 90 dB @ 1 kHz
    Crosstalk: > 85 dB @ 1 kHz
    Interface: USB 1.1 or higher (stereo in and stereo out)
    Power Adapter: 18 VDC, 800 mA
    Weight: 1.5lb
    Dimensions: 7 3/4 L x 6 W x 2" H


    Computer not required for mixer operation
    Mac: OS X 10.7 and up*
    PC: Windows 7 and up*
    USB port
    For Software Requirements: Visit
