The Classic CUBE, Evolved for Maximum Flexibility
For over four decades, CUBE amplifiers have brought exceptional value to musicians everywhere, offering great sound and versatile features in portable, go-everywhere designs. The DUAL CUBE LX Guitar Amplifier carries on this long tradition, evolved with the latest BOSS advancements for unmatched flexibility. This desktop powerhouse is the ultimate guitar amp for home practice and jamming with friends. And with a generous array of connectivity options, its range extends to performing, recording, and many other applications.
Standard Features
- Ultra-portable stereo guitar amplifier with professional sound and features
- Two custom-designed 4-inch speakers
- 10-watt stereo power amp (5 watts x 2)
- Eight newly developed guitar amp types plus one mic preamp type
- Seven onboard effects with deep editing via the DUAL CUBE LX Editor app
- Stereo input mode with wide, immersive sound for modelers and stereo pedals
- Three-band equalizer
- Store amp and effects settings in 27 memories (3 memories for each amp type)
- Powered via AC adaptor (included) or eight AA batteries
- Stereo line output with mic’d cab emulation
- Phones/Rec jack with support for an inline headphones microphone
- USB audio for direct recording and livestreaming
- Control jack for up to two external footswitches
- i-CUBE Link/Aux In jack for audio playback
- Selectable Loopback function for USB and i-CUBE Link/Aux In
- Onboard looper (requires optional footswitch)
- Connector for optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL)
Meet the Moment
With its compact size and authentic BOSS tones, the DUAL CUBE LX delivers instant gratification for everyday playing at home. And its ultra-flexible design lets you go much further when you want, providing advanced features that reach well beyond the capabilities of other desktop amps.
Practice and Jam Anywhere
Indoors and out, enjoy big, immersive sound with custom-designed stereo speakers and versatile power with the included AC adaptor or eight AA batteries.
Perform On Stage
Use the stereo Line Out jacks to directly connect to a PA system and perform with pro BOSS amp sounds, complete with mic’d cab emulation and expansive stereo effects.
Record to Your Favorite DAW
Use the DUAL CUBE LX to capture mix-ready sounds in music software on a computer or mobile device via USB or i-CUBE-Link.
Elevate Your Livestreams
With the Phones/Rec jack and mic volume control, you can capture your voice with a headphones mic and send it to the USB and i-CUBE Link outputs along with your guitar sounds.
Play Along with Backing Music
The DUAL CUBE LX offers many ways to play along with backing music from a mobile device or computer, including a stereo aux input, USB and i-CUBE Link Loopback, and an optional Bluetooth® adaptor.
SPECIFICATIONS
Rated Power Output10 W (5 W+5 W)
Nominal Input LevelGUITAR/STEREO IN L, R: -10 dBu (1 M ohm)
i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)
Nominal Output LevelLINE OUT L/MONO, R: -10 dBu
Speakers10 cm (4 inches) x 2

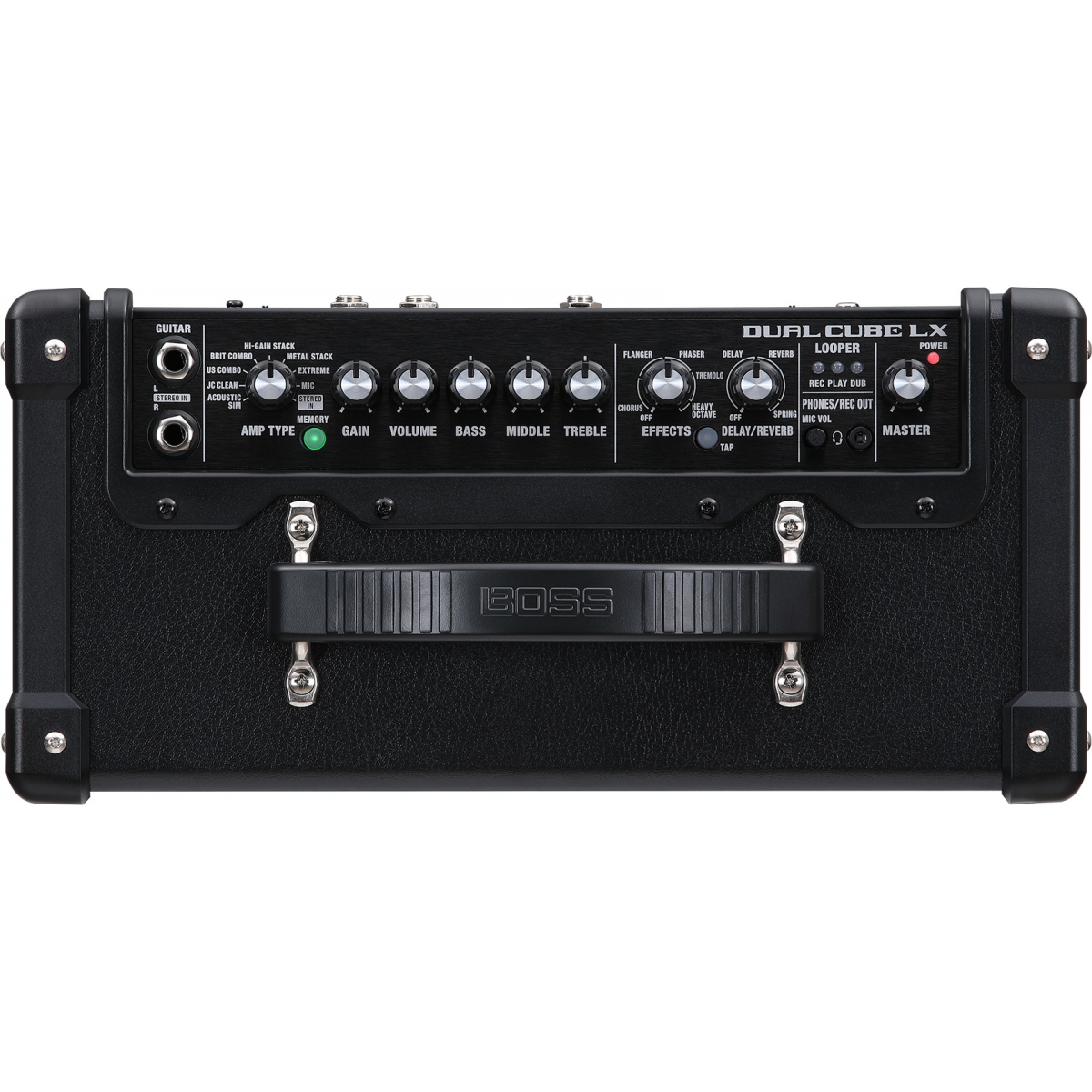

Controls
POWER switch
AMP TYPE knob (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN)
MEMORY button
GAIN knob
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
EFFECTS knob (CHORUS, FLANGER, PHASER, TREMOLO, HEAVY OCTAVE)
DELAY/REVERB knob (DELAY, REVERB, SPRING)
TAP button
MIC VOL knob
MASTER knob
LOOPBACK switch (i-CUBE LINK/AUX IN)
LOOPBACK switch (USB)IndicatorsPOWER
MEMORY
TAP
REC
PLAY

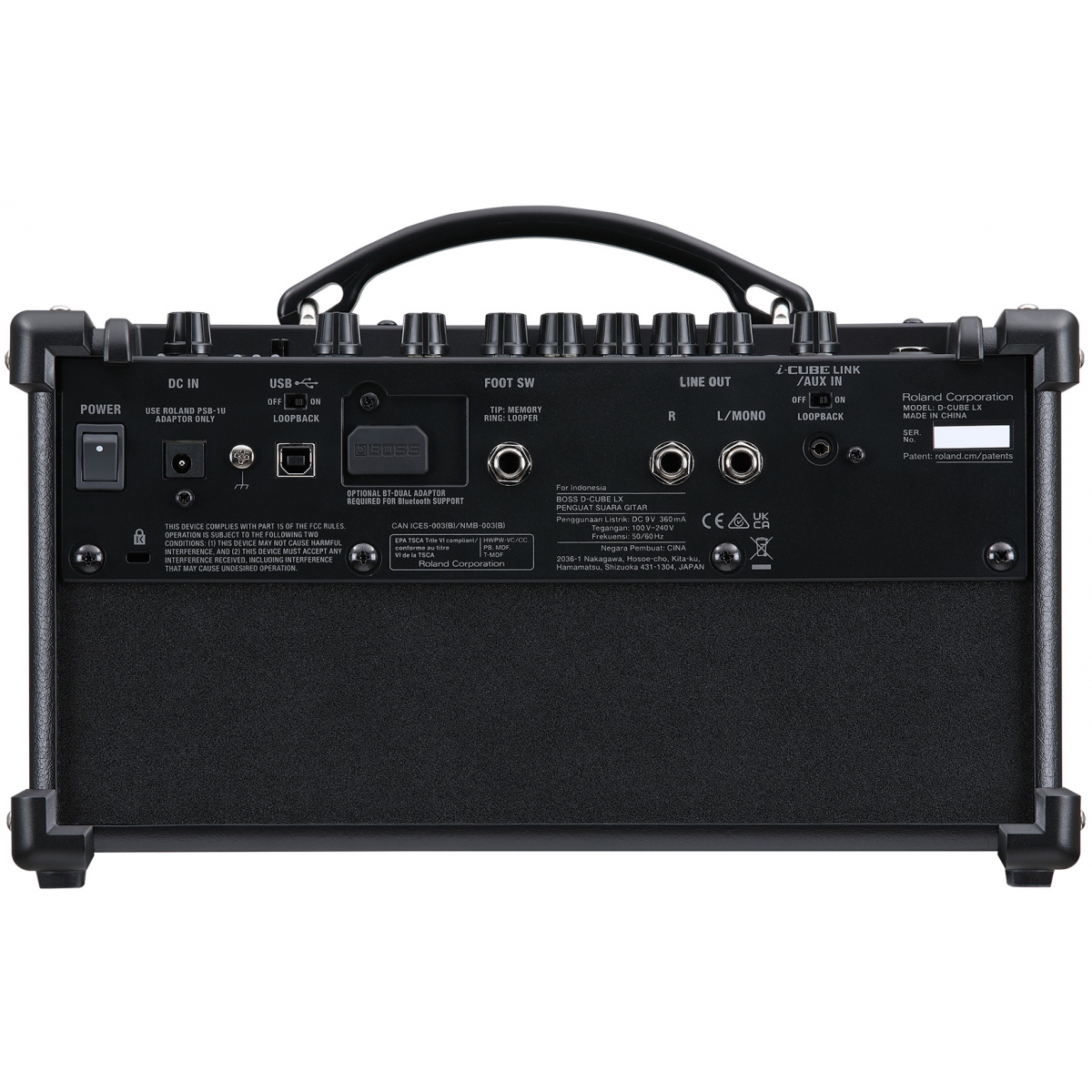

DUBConnectorsGUITAR jack/STEREO IN L, R jacks: 1/4-inch phone type
PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA)
i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA)
LINE OUT L/MONO, R jacks: 1/4-inch phone type
FOOT SW jack: 1/4-inch TRS phone type
Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B type
DC IN jackPower SupplyAC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8Current Draw360 mAExpected battery life under continuous useAlkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)
*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's Manual
Leaflet USING THE UNIT SAFELY
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)Options (sold separately)Footswitch: FS-5U, FS-6, FS-7
Bluetooth® Audio MIDI Dual Adaptor (MODEL BT-DUAL)
Wireless MIDI Expression Pedal: EV-1-WLSIZE AND WEIGHTWidth341 mm
13-7/16 inchesDepth162 mm
6-7/16 inchesHeight215 mm
8-1/2 inchesWeight (excluding AC adaptor)3.3 kg
7 lbs 5 oz
