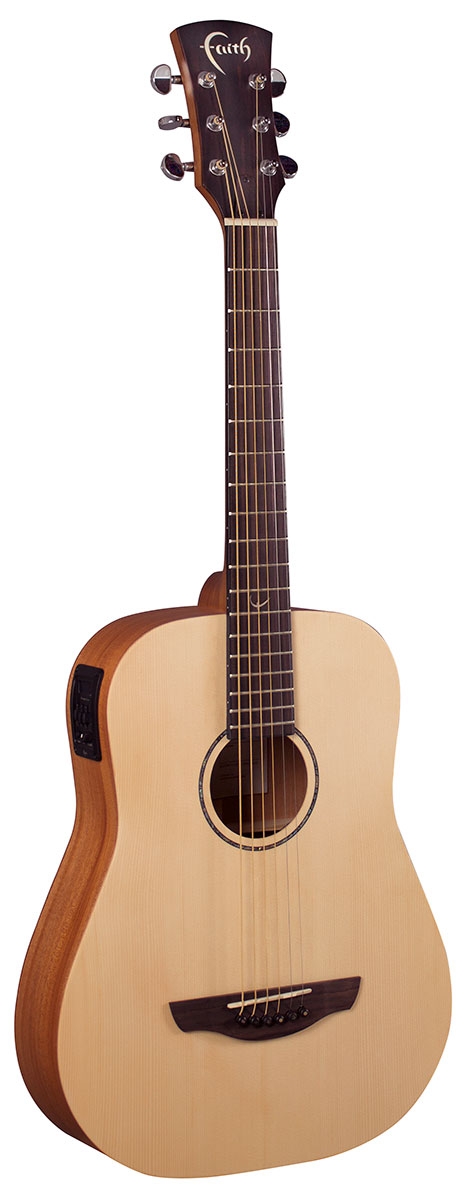

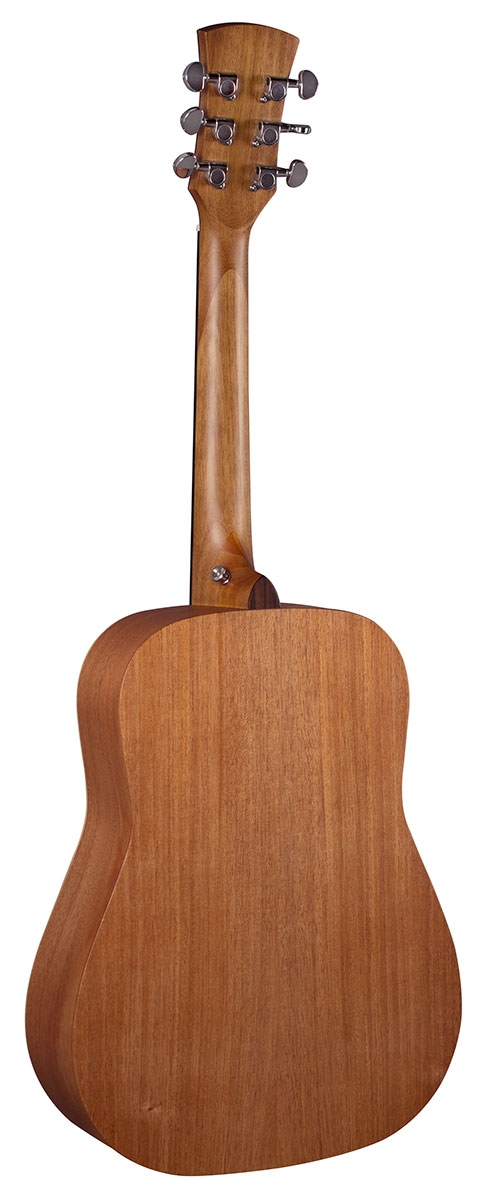

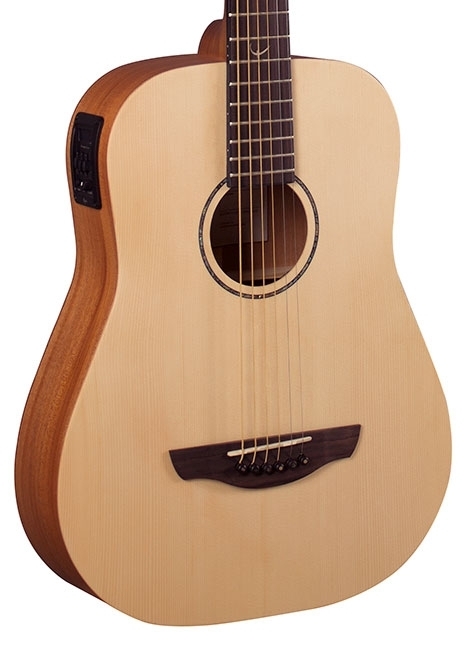

FAITH NOMAD MINI-SATURN ELECTRO FDS
OVERVIEW
Small-scale powerhouses with a scale length of 590mm, Faith Nomad models are designed for those players who want and need to travel frequently with their guitar, but dont want to compromise on sound quality. Faith Nomad guitars still use solid tonewoods for the top, back and sides of each instrument. ensuring the tonal richness for which Faith are known. And to finish the whole thing off, each Nomad guitar comes complete in a specially made gigbag. Faith CnR3 Preamp System Faith Nomad guitars are equipped with the CnR3 proprietry preamp and pickup system. This excellent system offers 3 band EQ, a phase button to combat feedback, and a fully featured tuner with high-visibility digital display. The piezo pickup strip is located beneath the bridge saddle, with the output jack and battery compartment housed separately at the base of the instrument.
This Faith Guitar is fitted with a Fishman Isys-T preamp (named Presys-T from 2019), and sonicore pickup. The output jack is combined with the strap button with a battery box fitted to the base of the guitar. The preamp features a Tuner, a contour button – choosing a flat EQ or a scooped EQ , and a phase button.
Includes Gigbag.
ELECTRONICS
FISHMAN PRE-AMP / PICKUP
This Faith Guitar is fitted with a Fishman Isys-T preamp (named Presys-T from 2019), and sonicore pickup. The output jack is combined with the strap button with a battery box fitted to the base of the guitar. The preamp features a Tuner, a contour button – choosing a flat EQ or a scooped EQ , and a phase button.
JUST ONE TREE
PLANTING TREES FOR EVERY FAITH GUITAR SOLD
Faith Guitars are delighted to partner with JUST ONE Tree, pledging to plant trees every time a new Faith guitar is sold, anywhere around the world.
JUST ONE Tree is a not-for-profit organisation based in the UK who plant trees in areas severely affected by deforestation to maximise the effect on reducing global warming. In the process they help to provide agricultural education and sustainable incomes to local communities.
Specification
Scale Length 590mm
Top Wood Solid Spruce (Satin)
Back Wood Solid Mahogany (Satin)
Side Wood Solid Mahogany (Satin)
Binding N/A
Bracing Material Hand-Scalloped Quarter-Sawn Spruce
Bracing Pattern X-Brace Design
Rosette 2mm Abalone & Fibre Border
Neck Mahogany
Neck Finish Satin
Neck Joint Set Neck
Fingerboard Indonesian Ebony (2017 Models onwards)
Fingerboard Radius 16″
Fingerboard Inlays ‘F’ at 12th Fret
Machine Head Precision Chrome
Trussrod 2 Way
Nut / Saddle NuBone
Nut Width Nut 43mm / String Spacing 55mm
Bridge Macassan Figured Ebony
Bridge Pins Indian Ebony with Abalone Dots
Preamp / Pickup Fishman Sonicore Pickup and Isys T preamp
Dimensions
Upper bout 263mm
Lower bout 357mm
Depth at neck 82mm
Depth at base 92mm
Body Length 443mm
Soundhole Diameter 85mm
Scale Length 590mm
Fingerboard Radius 16 inch
Total Length (Top to Bottom) 905mm
