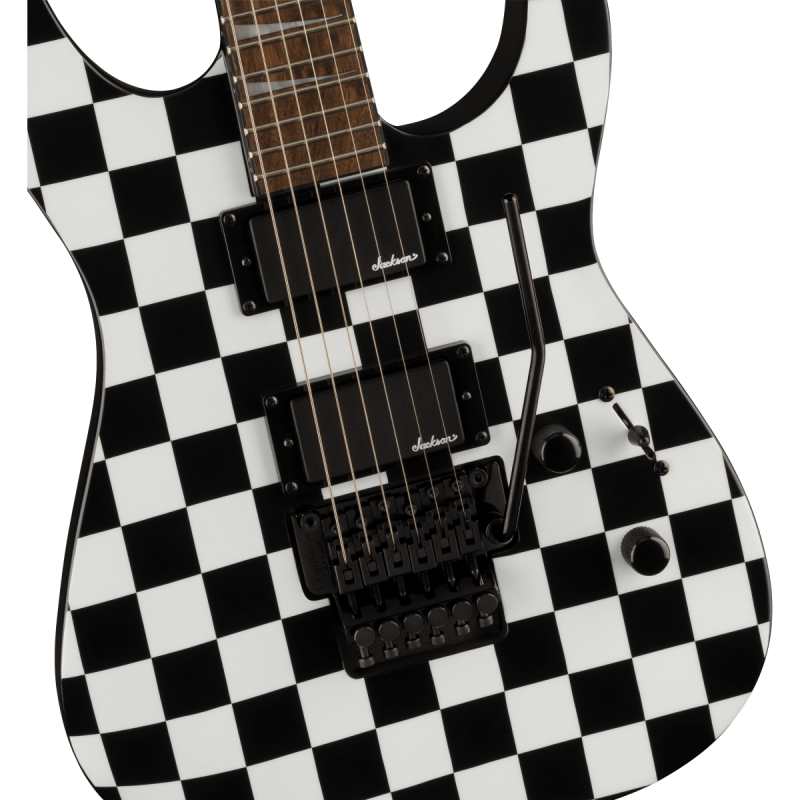

Jackson X Series Soloist™, SLX DX, Laurel Fingerboard, Checkered Past
MODEL #: 2916342577
UPC #: 717669902179

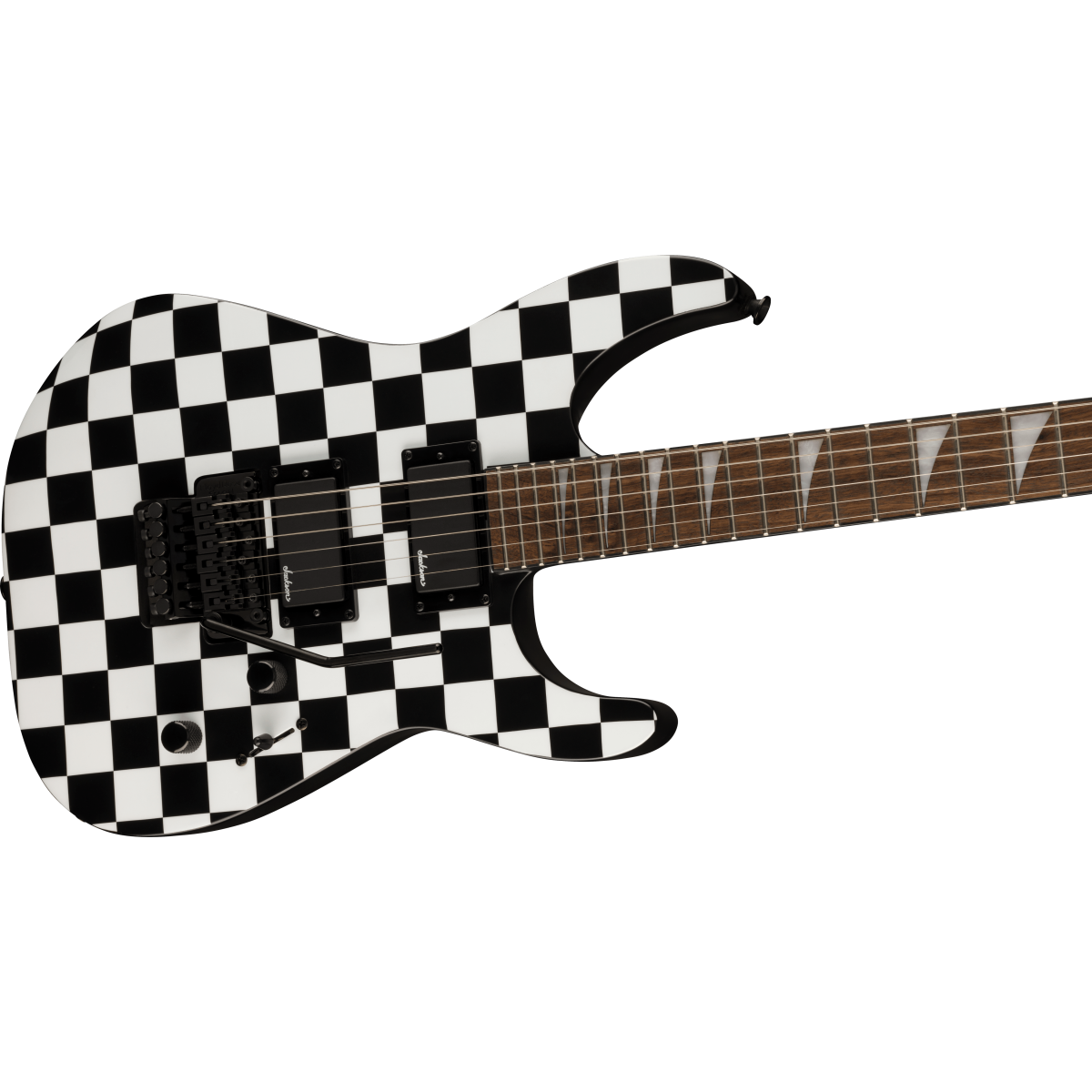

ACTIVE JACKSON COVERED HIGH-OUTPUT HUMBUCKING PICKUPS
Active Jackson covered high-output humbucking bridge and neck pickups are painstakingly voiced for full, rich tone while providing maximum overdrive and sustain.
X SERIES SOLOIST™, SLX DX
Model #: 2916342577

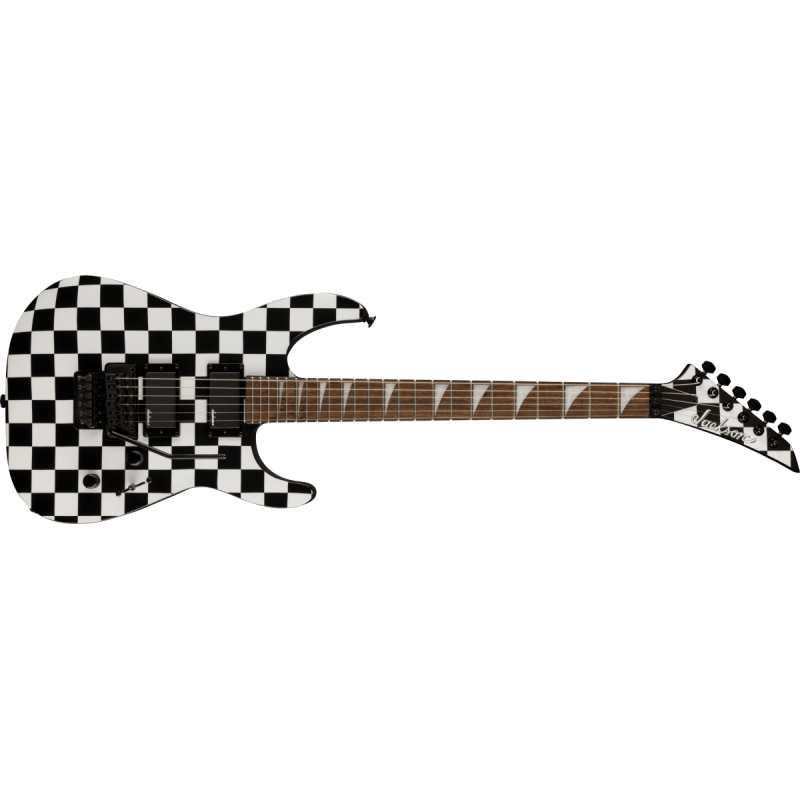

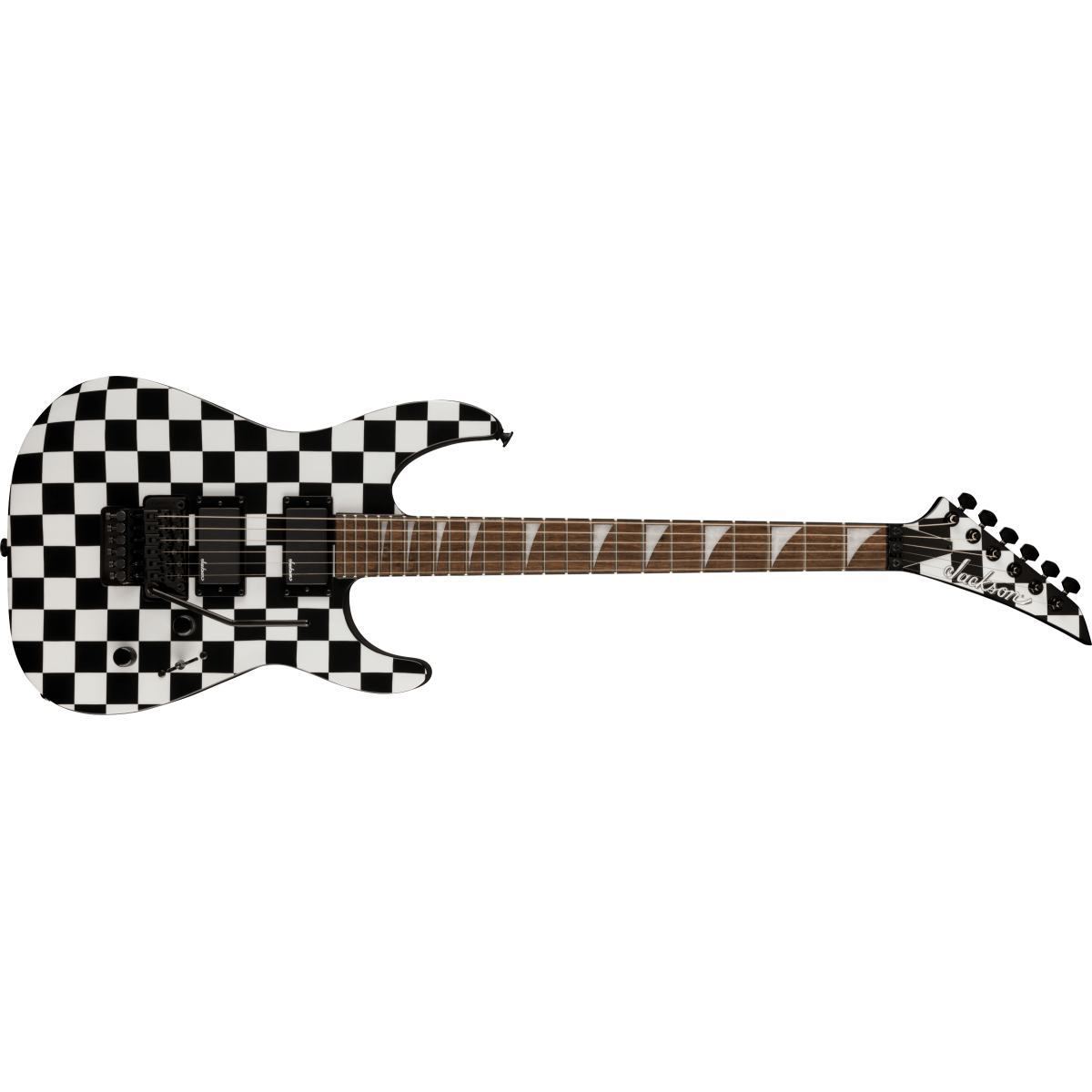

Distinctive and affordable, Jackson’s X Series Soloist models are built for speed and comfort! The Jackson® X Series Soloist™ SLX DX is a venerable double-cutaway workhorse that offers many fine features desired by today's shredders.
FEATURES
- 25.5” scale length
- Nyatoh body

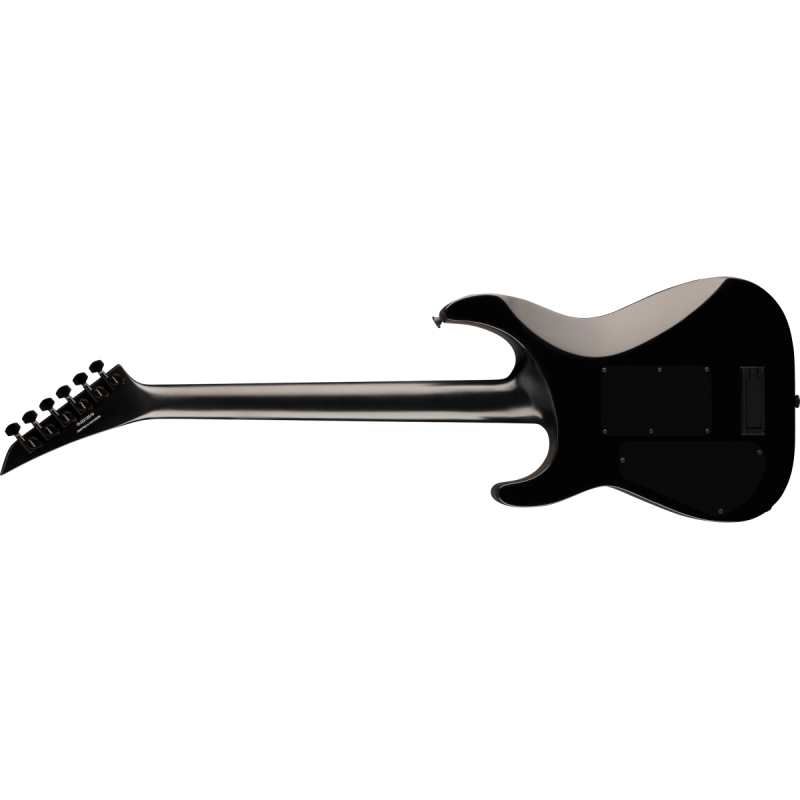

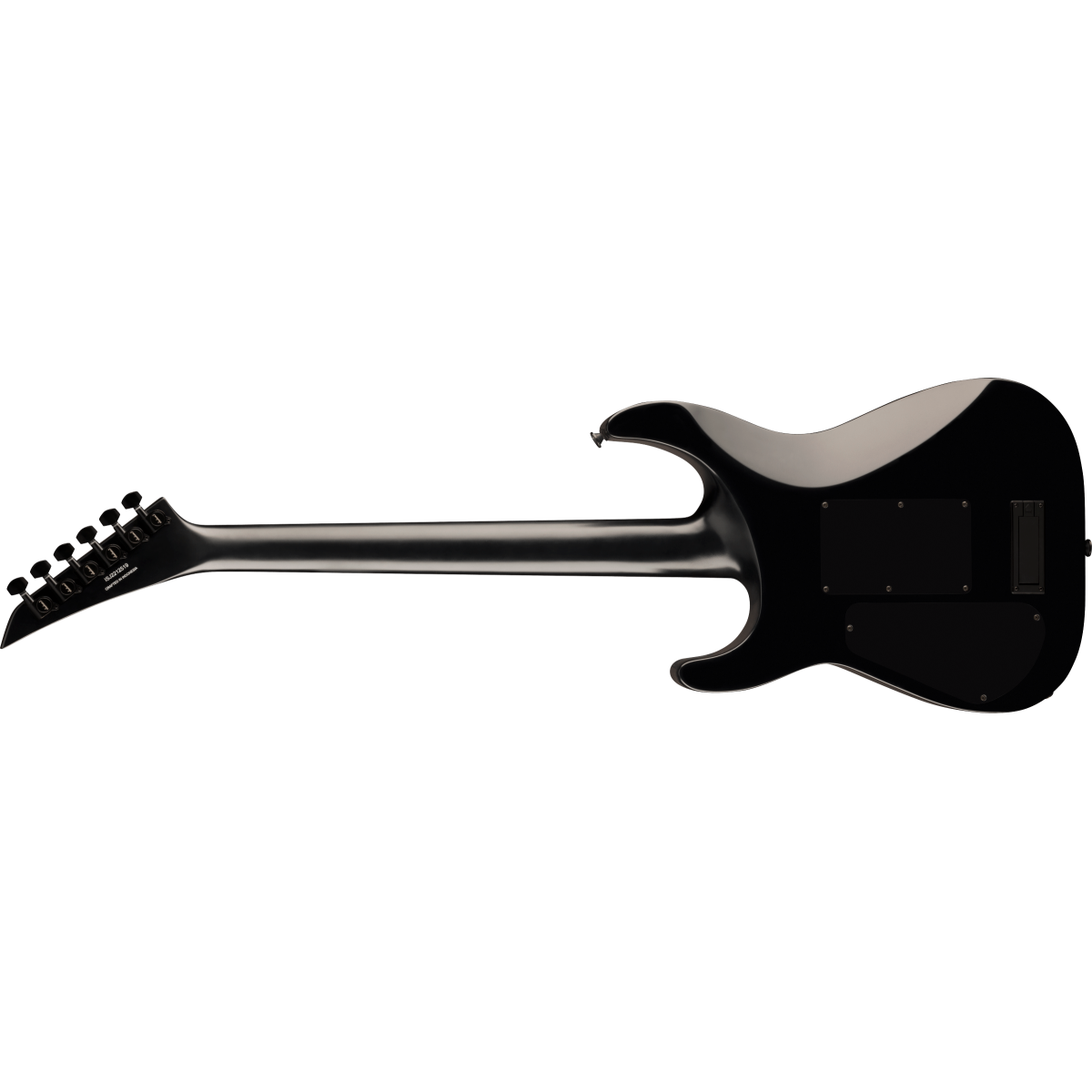

- Through-body maple neck with graphite reinforcement, scarf joint and painted black back finish
- 12”-16” compound radius bound laurel fingerboard with 24 jumbo frets and pearloid sharkfin inlays
- Active Jackson covered high-output humbucking pickups
- Three-position pickup blade switch, single volume control and single tone control
- Floyd Rose® Special double-locking tremolo bridge system
- Jackson sealed die-cast tuners and standard strap buttons

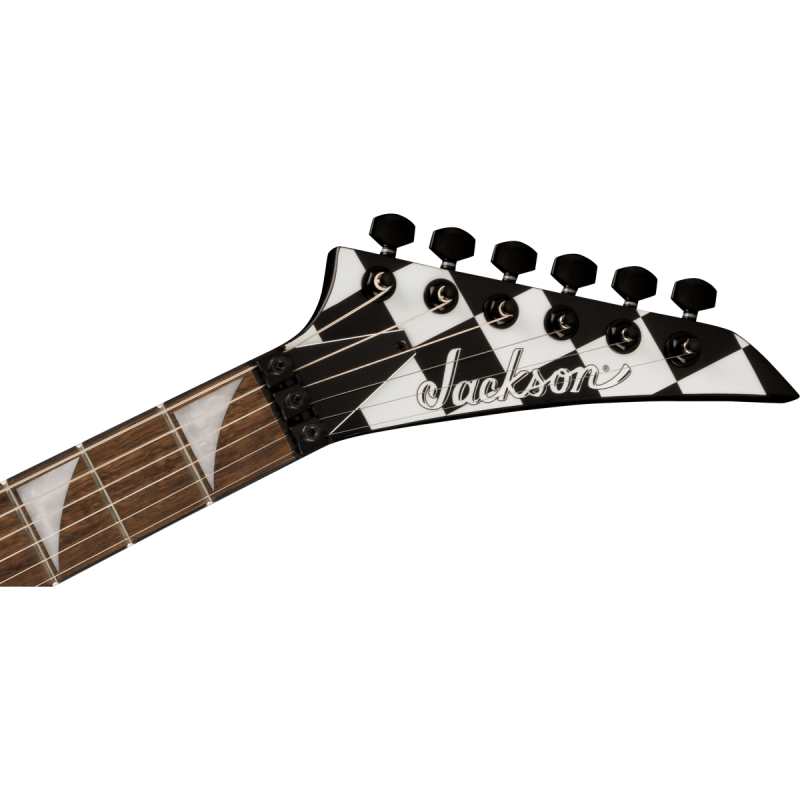

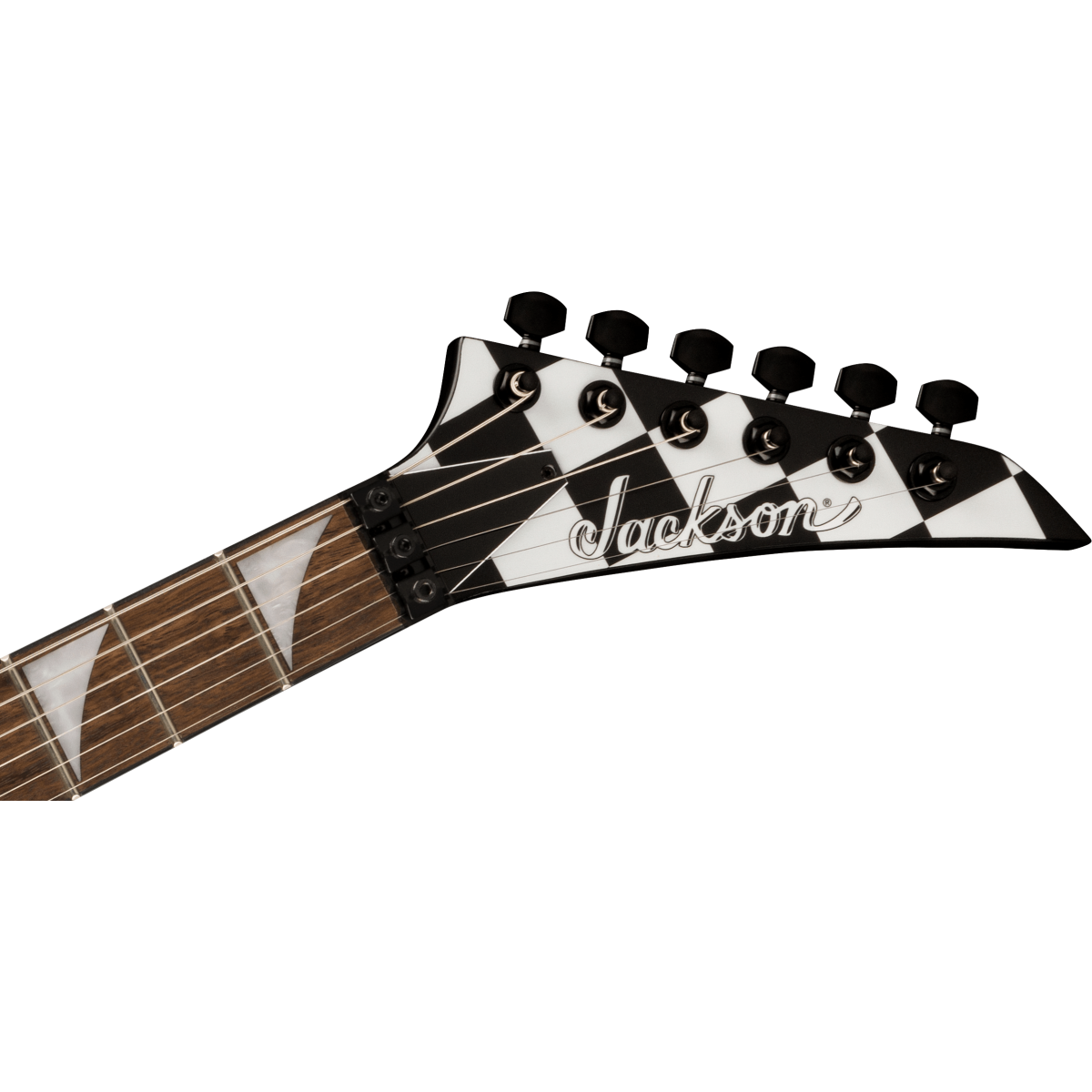

THROUGH-BODY MAPLE NECK WITH GRAPHITE REINFORCEMENT AND SCARF JOINT
Extending the piece of wood used for the neck through the entire length of the guitar’s body allows for greater playability and sustain across the whole instrument. Graphite-reinforcement rods flanking the truss rod provide even more neck stability to help the instrument withstand the rigors of the road, while scarf joint for an angled back headstock increases the tension behind the nut that eliminates the need for string trees and/or string retainer bars.
BODY
BODY MATERIAL
Nyatoh
BODY FINISH
Satin
BODY SHAPE
Soloist™
NECK
NUMBER OF STRINGS
6
NECK MATERIAL
1-Piece Maple
NECK CONSTRUCTION
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
NECK BINDING
White
NECK FINISH
Satin Color Matched
SCALE LENGTH
25.5" (64.77 cm)
FINGERBOARD MATERIAL
Laurel
FINGERBOARD RADIUS
12" to 16" Compound Radius (304.8 mm to 406.4 mm)
NUMBER OF FRETS
24
FRET SIZE
Jumbo
NUT MATERIAL
Floyd Rose® Special Locking
NUT WIDTH
1.6875" (42.86 mm)
POSITION INLAYS
Pearloid Sharkfin
SIDE DOTS
White
TRUSS ROD
Dual-Action Head Adjust
TRUSS ROD NUT
Truss Rod Adjustment at Nut
ELECTRONICS
BRIDGE PICKUP
Jackson® Covered High-Output Humbucking
NECK PICKUP
Jackson® Covered High-Output Humbucking
CONTROLS
Volume, Tone
SWITCHING
3-Position Blade: Position 1: Neck Pickup, Position 2: Neck and Bridge Pickup, Position 3: Bridge Pickup
CONFIGURATION
HH
HARDWARE
BRIDGE
Floyd Rose® Special Double-Locking Tremolo (Recessed)
HARDWARE FINISH
Black

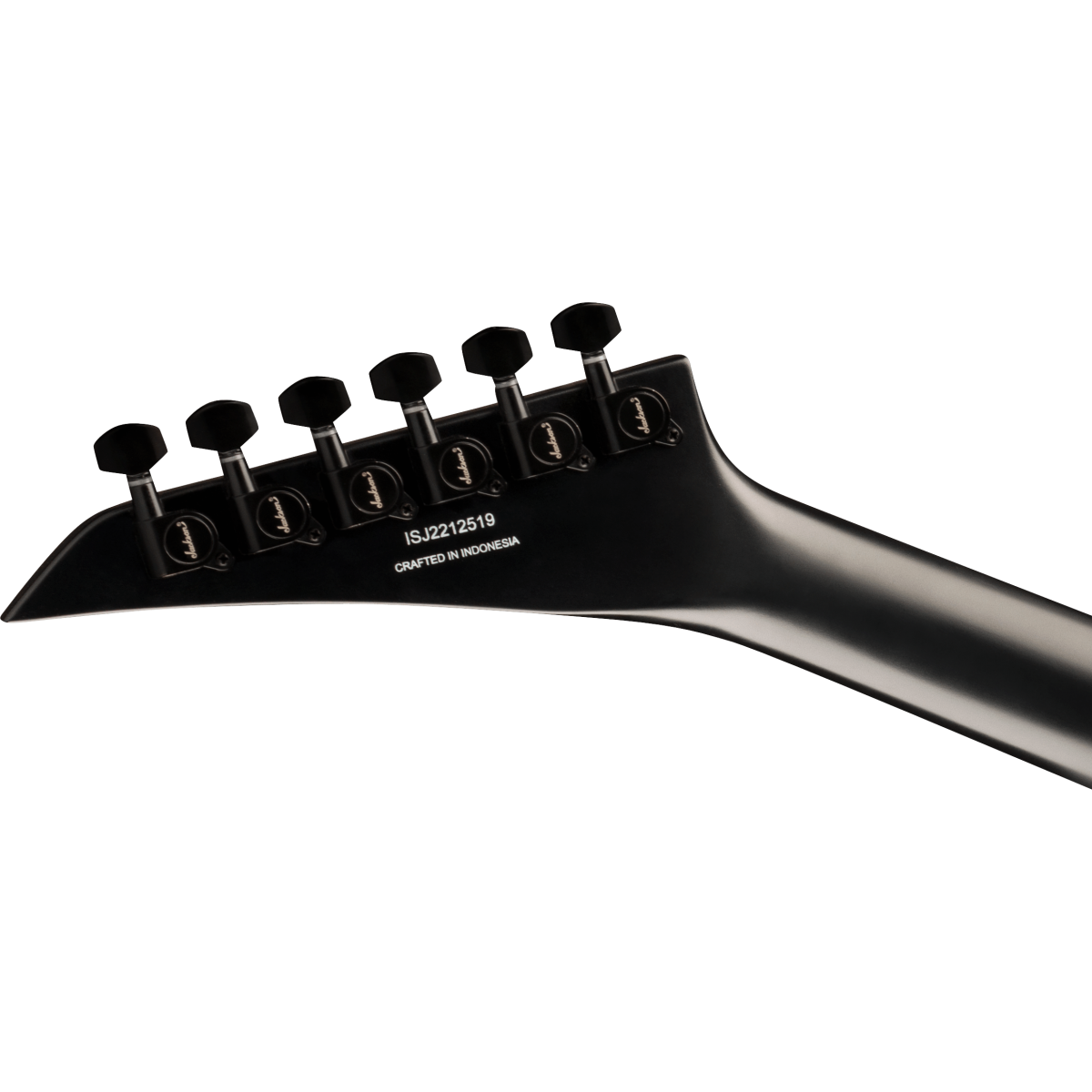

TUNING MACHINES
Jackson® Sealed Die-Cast
CONTROL KNOBS
Dome-Style
SWITCH TIP
Black
MISCELLANEOUS
STRINGS
Nickel Plated Steel (.009-.042 Gauges)
