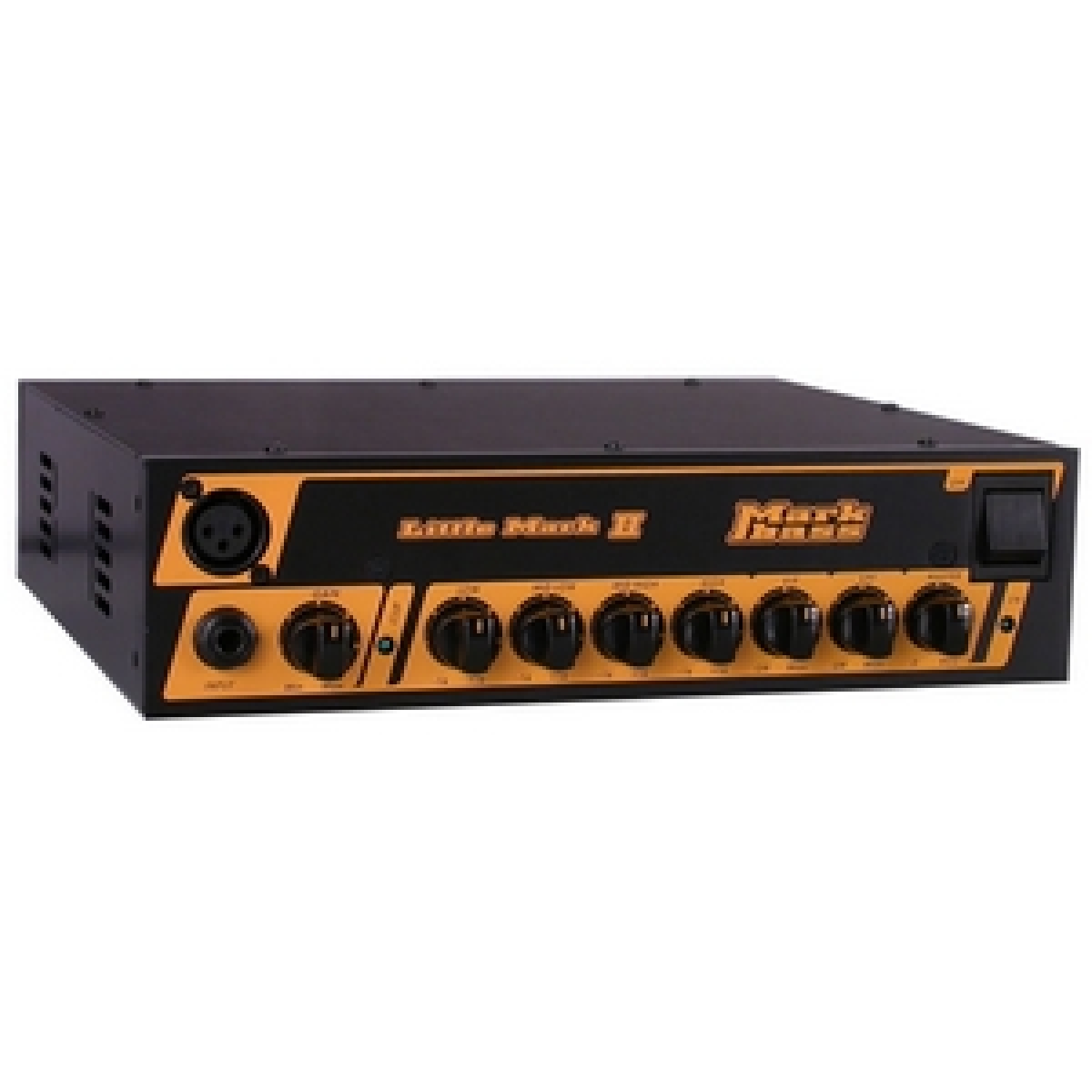

The incredible international success of the Mark Bass Little Mark II has inspired this new, updated and upgraded version! The new DI output features a pre-post EQ switch and output level control, so you can optimize the signal you send to the mixer or recording unit. All this with the same compact size and weight of its famous predecessor!
The MarkBass Little Mark 3 features:
INPUTS
INPUT
impedance 500 Kohm, max. voltage 15 Vpp
BALANCED INPUT (XLR)
impedance 100 Khom, max. voltage 25 Vpp
EFFECT RETURN
impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
GAIN
-60 dB to +23 dB range
MASTER VOLUME
LINE OUT LEVEL
GROUND LIFT
switch on rear panel
PRE/POST EQ
switch on rear panel
EQUALIZATION
LOW
center frequency: 40 Hz; level: ±16 dB
LOW MID
center frequency: 360 Hz, level: ±16 dB
HIGH MID
center frequency: 800 Hz, level: ±16 dB
HIGH
center frequency: 10 kHz, level: ±16 dB
VPF (Variable Pre-shape Filter)
center frequency 380 Hz (cut)
VLE (Vintage Loudspeaker Emulator)
frequency range 250 Hz-20 kHz (cut)
OUTPUT
LINE OUT
balanced XLR, max. voltage 20 Vpp
EFFECT SEND
unbalanced, max. voltage 20 Vpp (pre-EQ)
TUNER OUT
unbalanced, max. voltage 2 Vpp
SPEAKER OUT
speakon/1/4" combo, 1/4"
OTHER
WEIGHT
6.39 lbs / 2.9 kg
DEPTH
10.1 in. / 25.6 cm
WIDTH
10.87 in. / 27.6 cm
HEIGHT
2.8 in. / 7.1 cm
OUTPUT POWER
300W RMS @ 8 ohm, 500W RMS @ 4 ohm
POWER REQUIREMENT
100/120V; 230V; 240V
50/60Hz
