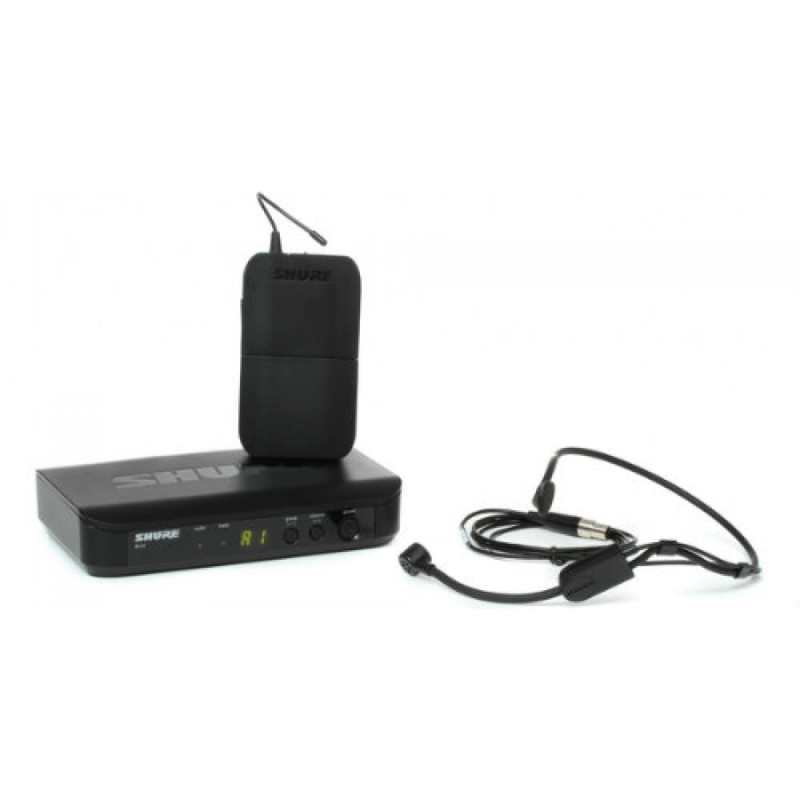

The PGA31 cardioid condenser microphone features Shure quality and improved design for long-wearing comfort at a price that doesn’t break the bank.
Main Features
Available Transmitter Form factors: Bodypack
Operating range (up to): 100 m (Under typical conditions)
BLX1
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)
BLX4
Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open frequency
¼" and XLR audio outputs
Two color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
PGA31
Wearable wireframe headset fits securely for multi-instrumentalists and active performers
Permanently-charged electret condenser element for detailed, crisp vocals
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
Included windscreen tames plosives for clean and intelligible sound reproduction
TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
Included windscreen tames plosive, breath and wind noise for clean and intelligible sound
Tailored frequency response primed for great sound on vocals
Legendary Shure precision engineering for durability and performance
PGA31
Wireless headset microphone for general use
BLX4
Analogue Wireless Receiver for up to 12 compatible channels per group with group and channel scan for easy set-up.
BLX1
Analogue wireless bodypack for BLX and BLX-R Analogue Wireless Systems
Specs
Technical specifications
hide
BLX14/PGA31 Specifications
Set Type:
Headset
Amount of Bodypacks:
1
Amount of TQG Mics:
1
Number of compatible systems per frequency band:
12
BLX4 Specifications
Weight:
241 g
Height x Width x Depth:
40.0 × 188.0 × 103.0 mm
Transmission:
Analog
Type of Power Supply:
External
Receiver Housings:
Molded ABS
Active Antenna Possible:
No
Bias via BNC:
No
High Density Mode:
No
Interference Detection:
No
Remote Control:
No
Number of compatible systems per frequency band:
12
DANTE Audio Network Interface:
No
Scan Features:
Quick Scan
Sync Features:
None
Detachable Antennas:
No
Network ability:
No
Software control :
No
Logic:
No
Cascade:
No
Rack Hardware:
Optional: URT2
Receiver Displays:
LEDs
Receiver type:
Single
Line Mic Switch:
No
Image Rejection:
50 dB, typical
RF Sensitivity:
-105 dBm, for 12dB SINAD, typical
Phantom Power Protection:
No
BLX1 Specifications
Weight:
75 g
Height x Width x Depth:
110.0 × 64.0 × 21.0 mm
Battery life alkaline:
14 h
Form Factor:
Bodypack
Operating Range (up to):
100 m (Under typical conditions)
Transmitter housings:
Molded ABS
Audio Mute:
No
Detachable Antennas:
No
Switchable RF power:
No
Batteries:
AA
Battery Status:
Multi-Color LED
Connectors:
TQG
Frequency Diversity:
No
Functionality:
Transmitter
Gain adjustment range:
26 dB
High Density Mode:
No
Included antenna:
1/4 wave
Input impedance:
1000 kΩ
PGA31 Specifications
Weight:
60 g
Frequency Response:
60 Hz – 20 kHz
Frequency Response:
Tailored
Sensitivity:
-50.00 dBV/Pa – 3.20 mV/Pa
Equivalent Selfnoise:
28 dB(A)
Sound Pressure:
145 dB
Transducer Type:
Condenser
Polar Pattern:
Cardioid
Switchable low cut:
No
Connectors:
TA4F
Attenuator:
No
Interchangeable Capsule:
No
Main Functionality:
Performance
Headphone Output:
No
Requires Phantom Power:
5V DC (nominal), 10 V maximum (DC bias) VDC
Cartridge:
Fixed
