Tascam
32-bit float Portable Audio Recorder
Portacapture X6
New generation high-res Multi-track Handheld Recorder

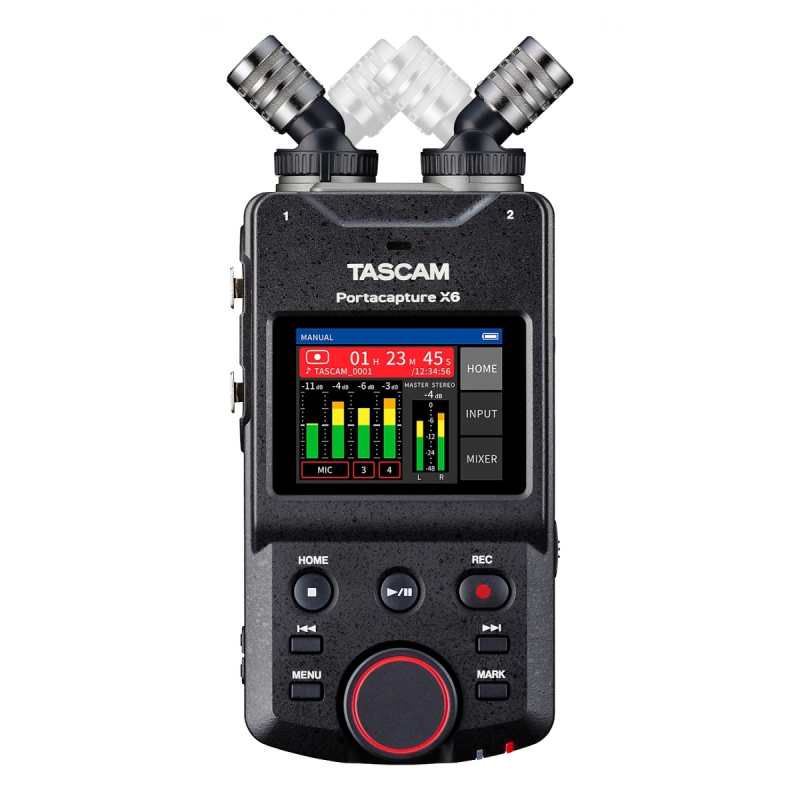

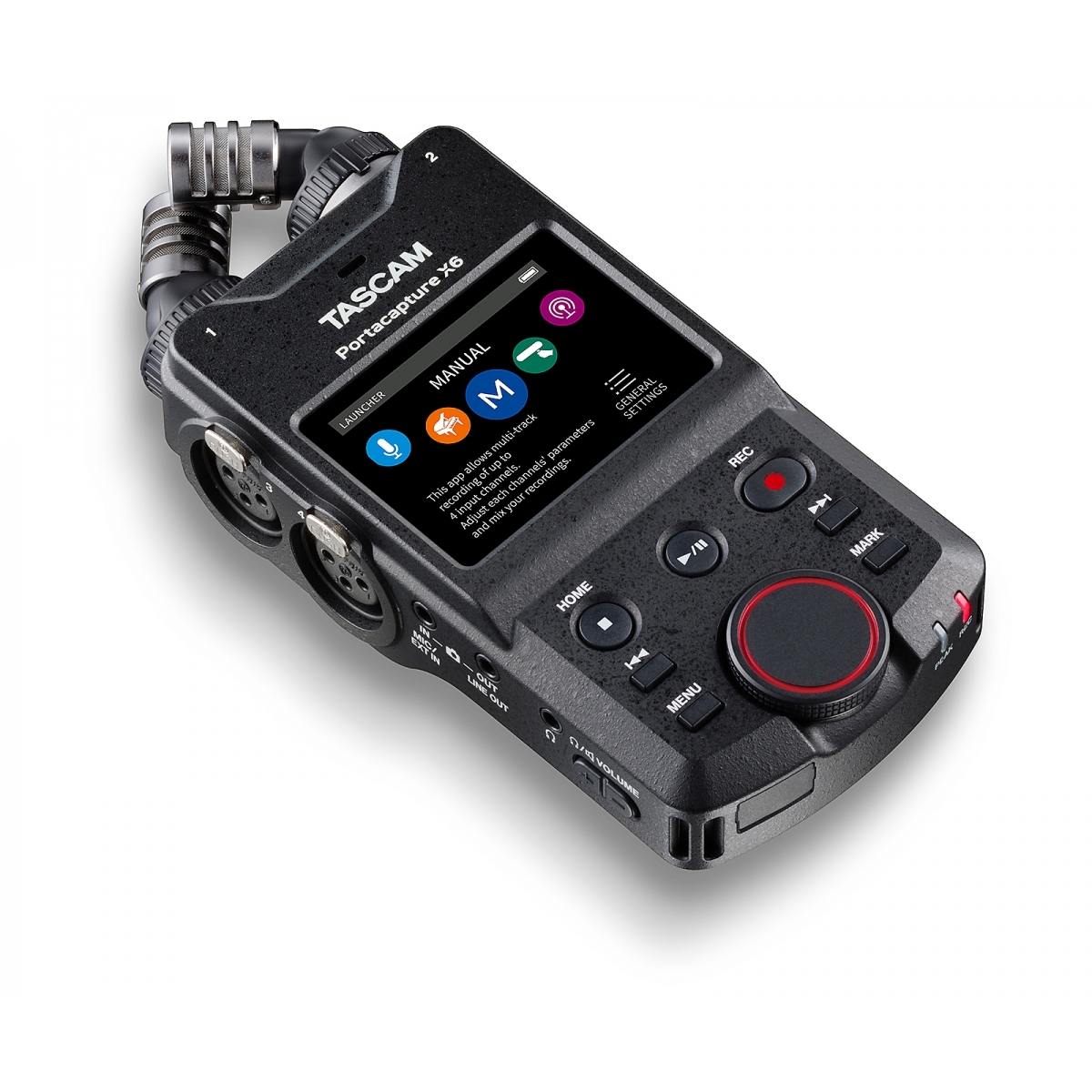

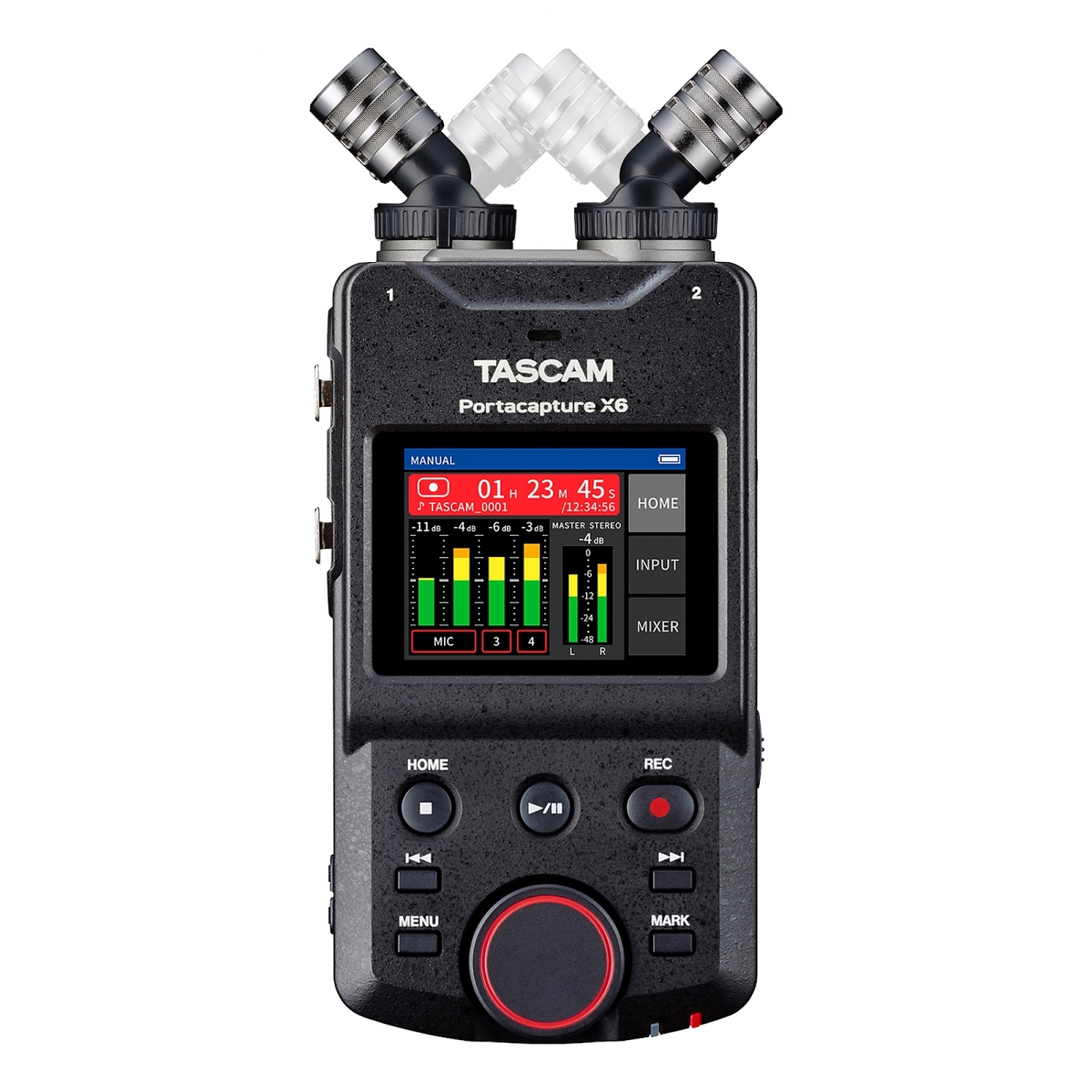

Never miss a moment. Capture audio anywhere with the Portacapture X6. The intuitive app-like operations on its large color screen make it easy to record or sweeten up your audio in post. Record using the X6’s dual built-in microphones or plug in your own mics to its 2 XLR inputs. The recording quality on the Portacapture X6 will be your secret weapon. Its 96 kHz/32-bit float recording technology means that you can capture audio softer or louder than ideal, assuring that you will never miss that moment.
Quickly access your settings and adjustments on the Portacapture X6’s large (2.4-inch) color touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs. Use the Launcher to select from podcast, music, interviews, field recording and 6-track multi-track recording. Start fast, start right and get exactly what you need.
The internal Recording app icons and descriptions:
MANUAL VOICE This is the basic app of the unit. Multitrack recording of up to six channels is possible. VOICE VOICE This recording app is good for capturing interviews, dictation and meetings.
PODCAST PODCAST This is good for recording podcasts with up to two people. MUSIC MUSIC This recording app is good for easily capturing instrumental and vocal performances.
FIELD FIELD This recording app is good for recording outdoors. ASMR ASMR The screen visual effect changes in response to the input sound.
Audio For Video Production
When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user-saved settings save you countless steps. The X6 has your back with its 96 kHz/32-bit float recording technology. Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot. The X6 even gives you a time-code sync option* via Bluetooth® (with optional AK-BT1) allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.
Capture Your Way
The Portacapture X6 is ready to record with a few quick taps. The internal high-quality stereo microphones can instantly rotate from A-B to a true X-Y mic pattern to allow for dialog or spatial music recording.
HDDA
Have your own mics? Use those thanks to the two included XLR inputs or line level inputs. The mic preamplifiers are TASCAM HDDA (High Definition Discrete Architecture) – providing ultra-low noise and clean transparent audio based on over 50 years of TASCAM know-how.
Record 6 tracks (4 track + 2 mix) simultaneously and even use the X6 as your 6-in/2-out USB audio interface to connect to your computer.
Capture Every Bit
It would be great if every time you need to capture audio, everything is perfect. Not too loud, not too soft. Of course that is not the reality for most of us. Sometimes the voice or sound that you need to capture will be really soft and in other cases it is blasting. Even in these extremes, you are expected to capture the sound and deliver well- finished audio. The 32-bit float point recording technology in the Portacapture X6 gives you a much lower floor and higher ceiling to achieve audio success. You could use another audio recorder and hope not to need this best-in-class recording technology, but should you?
Control The X6 From Your Phone
In those cases where you want to put your audio recorder in one place and operate it from another, the X6 has you covered. With the AK-BT1 Bluetooth® adapter (sold separately) and free Portacapture Control app, it’s easy to remote control your X6 wirelessly from your smartphone or tablet. Imagine the possibilities!
Ready-To-Publish Audio Anywhere
With the Portacapture X6’s your audio will be ready to share. Built-in signal processing, including a compressor, limiter, high pass filter, EQ, and reverb, add that studio polish. Whether you need to tame the wind when recording outside or want to add the ambiance of reverb to your vocals, the X6 has you covered. From smoothing out your input to preventing extreme peaks or eliminating plosives in dialog, you can count on the Portacapture X6.
Your Virtual Audio Engineer
Getting your settings just right for your recording goals can be overwhelming, but not on the Portacapture X6. Select from the pre-perfected settings like Voice, Podcast, Music Recording, ASMR, and Field Recording. Just select the one that applies and start to record. Each setting was carefully tuned by TASCAM audio engineers for the defined use case. They set it all up, so you don’t have to.
Key Features
- Enjoy intuitive app-like controls on the X6, all using the large 2.4-inch touchscreen. Easy-to-use recording, pre-production and postproduction capabilities are just a touch away.
- Capture using up to 96 kHz, 32-bit float recording
- Record 6 tracks (4 track + 2 mix) simultaneously
- Easy-to-use recording pre-sets: Select from music, podcast, interviews, field recording and 6-track multi-track for the ideal recording setup for your needs.
- 2 XLR inputs and dual built-in mics with switchable AB/true-XY patterns
- The 2 XLR input terminals are compatible with phantom power (24V/48V) to support recordings with multiple mic/line inputs
- Undistorted recording processing enables safe recording without lowering the S/N ratio with 32-bit float processing
- Equipped with a 6-in/2-out USB audio interface function
- Wireless remote control from smartphones/tablets is possible with the optional AK-BT1 Bluetooth® adapter (sold separately). Timecode sync is also possible via Bluetooth® (*Timecode sync will be supported from V1.10 firmware update)
Included Items
- Portacapture X6 x 1
- AA alkaline batteries x 4
- Owner’s Manual (including warranty)
- TASCAM ID registration guide
Features at a glance
- New-generation high-resolution PCM audio recorder
- 2.4-inch colour touchscreen for easy operation and perfect readability
- Uncompromised audio quality with sampling rates up to 96 kHz and 32-bit floating point resolution – ideal for later lossless post-editing with DAW software
- Intuitive launcher system with pre-set configurations for a variety of recording scenes such as basic multi-track recording, podcasts, music, voice (interviews, vlogs), field recordings, ASMR or manual settings
- Two adjustable condenser microphones (can be set for A-B or X-Y configuration)
- Built-in USB audio interface with six inputs and two outputs
- Included microphones can be used as USB audio source
- Input signals received via USB can be recorded to SD card
- USB mix-minus on PODCAST app (planned for a future update)
- USB audio transmission in 32-bit float resolution (planned for a future update)
- Two mic/line inputs via XLR locking connectors
- Phantom power (24 V / 48 V) can be set for each microphone input individually
- Additional mic/line input to monitor and record audio sent from a wireless microphone, camera or other device (3.5-mm stereo jack, supports plug-in power)
- Multi-track recording of up to six tracks (four tracks + stereo mix)
- Recording in either WAV (BWF) or MP3 format
- MS decoder, reverb effect (six rooms, can be used with sampling rates of 44.1/48 kHz)
- Pre-recording feature allows a recording to start before the record key is pressed
- Auto-recording function to automatically start recording based on input level
- Dual recording allows to record each track in a different file format
- Slate tones can be added automatically or manually to simplify synchronisation of video files when editing
- Marks can be set automatically (peak, level, time)
- XRI function allows information on recording settings to be stored with a BWF file
- Built-in mixer with audio processing including EQ, low-cut filter, compressor, limiter, auto gain control, noise gate and more
- Input settings can be saved in up to three presets and shared by all recording apps (planned for a future update)
- Unit settings and recording app settings can be saved in up to three presets and recalled with a single tap from the LAUNCHER (planned for a future update)
- Camera/line output with selectable attenuation to send audio to a camera or other external devices
- Audio monitoring through headphones output or the built-in loudspeaker
- Wireless remote control from a smartphone/tablet using an optional Bluetooth dongle (Tascam AK-BT1) and the dedicated Portacapture Control app (free download)
- Wireless timecode synchronisation with Atomos devices and UltraSync Blue (planned for a future update)
- Micro SD cards up to 512 GB can be used as recording media
- Power supply by four AA batteries (Alkaline, Ni-MH, Lithium), USB bus power or optional AC adapter (Tascam PS-P520U)
- Automatic power select to continue on batteries, for example, during a power outage
