CK88 New
With authentic piano, organ and synth sounds, intuitive controls and built-in speakers, the CK88 makes everywhere a stage or studio. https://www.youtube.com/embed/ibVeKNwDUrQ

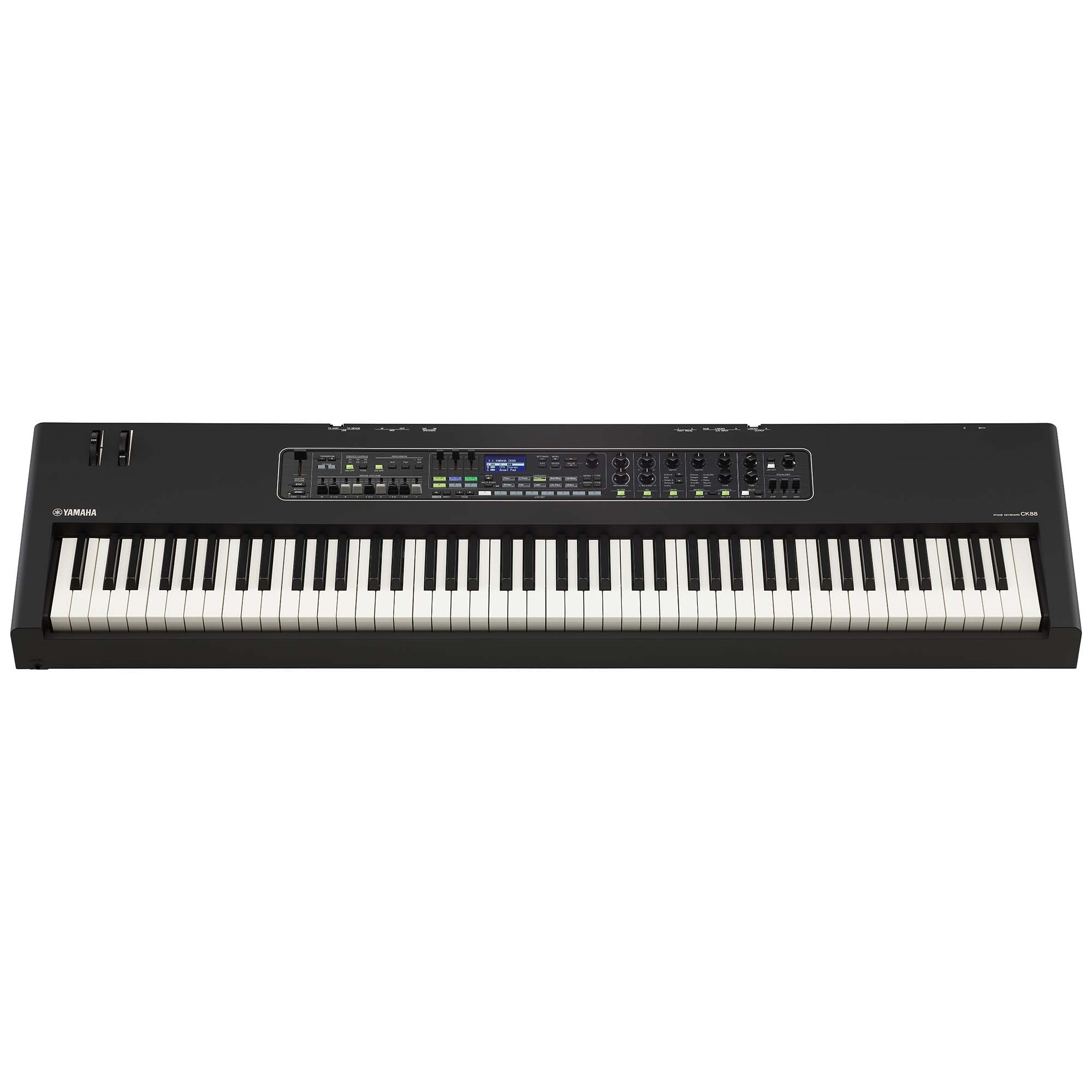

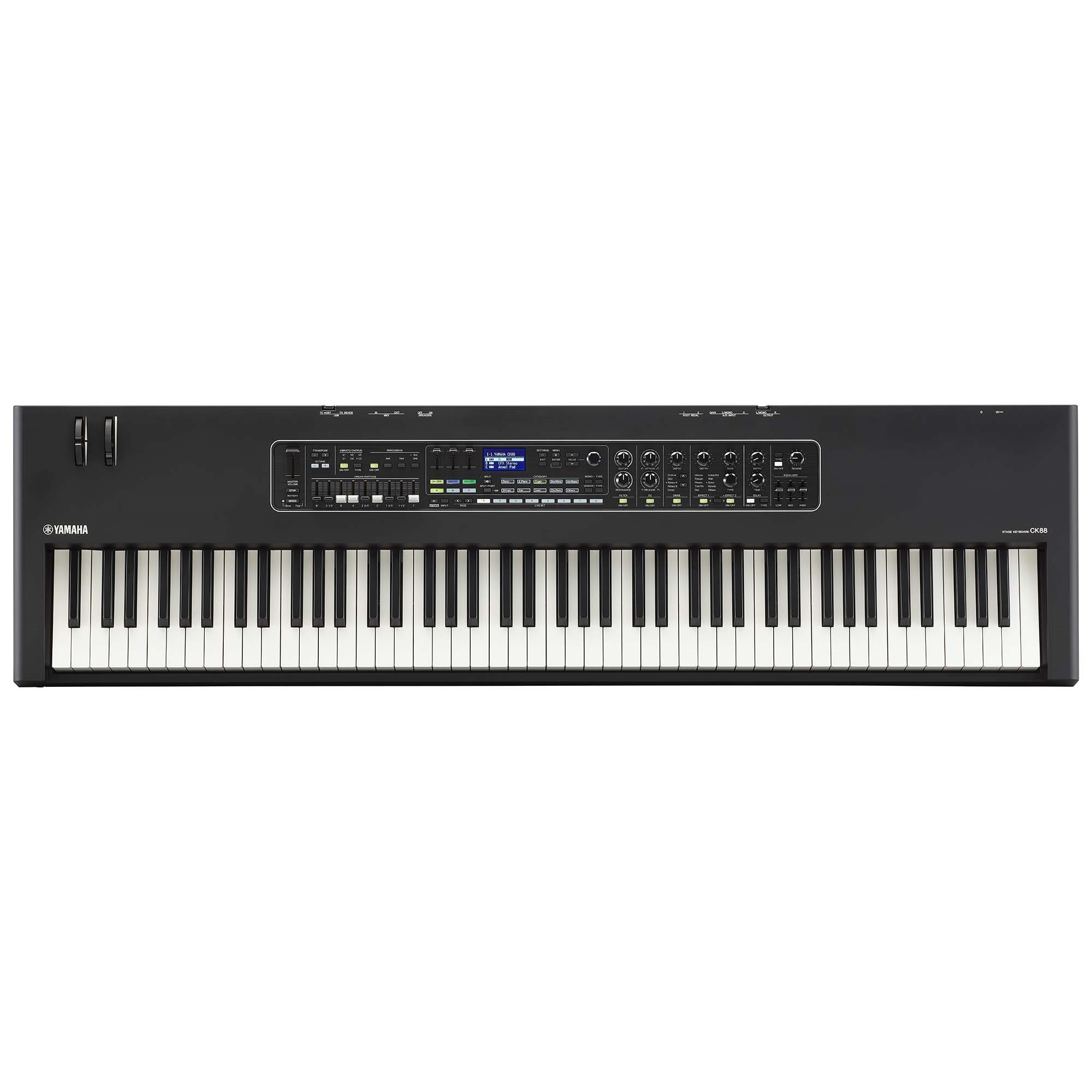

Yamaha CK88 Stage Keyboard Piano
All-rounder for stage, studio – and everywhere else
The new Yamaha CK88 is made to be everything and everywhere: combining sound characteristics of the CP and YC instruments, the CK series specialises in making those sounds available wherever musicians need them. While traditional use on a stage or in a studio the CK88 can operate beyond the usual confines. The new models can be powered with batteries and with a line/microphone input and integrated loudspeakers, which also opens a world of possibilities to play on the move.
Yamaha’s new highly portable CK88 series stage keyboard
Introducing the new Yamaha CK series comprised of two models CK88 and CK61. Building on the success of the stage keyboards from Yamaha’s renowned CP and YC series, the CK instruments feature a wide variety of sounds, intuitive controls, comprehensive sound design capabilities and highly portable formats.
Three parts for versatile sound design
As a descendant of the popular CP and YC series instruments, the Yamaha CK Series employs the wealth of their predecessors’ high-quality sounds to create an even more versatile sound set. Pianos, electric pianos, strings, brass, organs and modern synths – the CK series has it all. What is more, CK88 can layer and split these sounds into three zones or layered with each other to generate vivid, organic and expressive sounds. Each part can individually be edited and processed with the integrated effects, and the mixed sound goes through an additional master effects section for the final touches. From resonant filters and envelopes to various drive and modulation effects to delay, reverb and a master equalizer, the CK series offers every option to finetune sounds.
Intuitive controls for riveting performances
One aspect that has been praised about all Yamaha stage keyboards is the intuitive controls. The Yamaha CK88 continues this tradition, putting all important parameters at the players’ fingertips. The architecture of the three parts makes it possible to easily and quickly switch between sounds and combine them during a performance, adding life to a show. Customisable colour coding of the various switches keeps everything clear, signifying which parameter is active for which part. Dedicated drawbar controls allow for on-the-fly adjustments to the organ for natural expression and a truly “organic” feel. The effect section enables quick setting of parameters, making the effects an integral part of the performative sound design.
Control Interface
Keyboard – Number of Keys : 88
Keyboard – Type : GHS keyboard: matte black keytops
Voices
Tone Generation- Tone Generating Technology : AWM2, AWM (Organ Flutes)
Polyphony – Number of Polyphony (Max.) : 128
Number of Live Set Sound : 160 (Preset Live Set Sounds: 80)
Number of Voices : 363
Effects
Types – Insertion Effect : Drive 1 system (5 types) / Effect 2 systems (1: 36 types, 2: 36 types)
Types – Delay : 4 types
Types – Reverb : 3 types
Types – Master EQ : 3-band
Connectivity
Connectors
Line Out : [L/MONO]/[R] (6.3 mm, standard phone jacks, unbalanced)
A/D INPUT : [L/MONO]/[R] (6.3 mm, standard phone jacks)
Headphones : [PHONES] (6.3 mm, standard stereo phone jack)
Foot Controller : FOOT PEDAL [1]/[2]
MIDI : MIDI [IN]/[OUT]
USB : USB [TO HOST]/[TO DEVICE]
DC IN : [DC IN]
Bluetooth
Bluetooth version : 4.1
Supported profile : A2DP
Compatible codec : SBC
Wireless output : Bluetooth class 2
Maximum communication distance : about 10m
Radio Frequency (Operational Frequency) : 2401–2481 MHz
Maximum output power (EIRP) : 4 dBm
Type of modulation : FHSS
Functions
USB audio interface : [Sampling Frequency = 44.1 kHz] In: 2 channels (1 stereo channel) Out: 2 channels (1 stereo channel)
Sound System
Amplifiers : 6 W × 2
Speakers : (12 cm × 6 cm) × 2, Switchable ON/OFF
Other
Display : Full Dot LCD (128 x 64 dots)
Included accessories : AC adaptor*, Owner’s Manual *May be included depending on your locale
Power Supply
Power Supply – Adaptors : PA-150B or an equivalent recommended by Yamaha (Output: DC 12V, 1.5 A)
Power Supply – Batteries : Eight “AA” size alkaline (LR6) or Ni-MH rechargeable batteries
Power Consumption : 11 W (When using PA-150B AC adaptor)
Size/Weight
Dimensions – Width/Height/Depth :1,333mm (52-1/2″) / 148 mm (5-13/16″) / 354 mm (13-15/16″)
Weight : 13.1kg (28 lb 14oz) (not including batteries)
Packing Box – Width/Height/Depth : 1,520 mm (59-16/16″) / 260 mm (10-1/4″) / 480 mm (18-7/8″)
