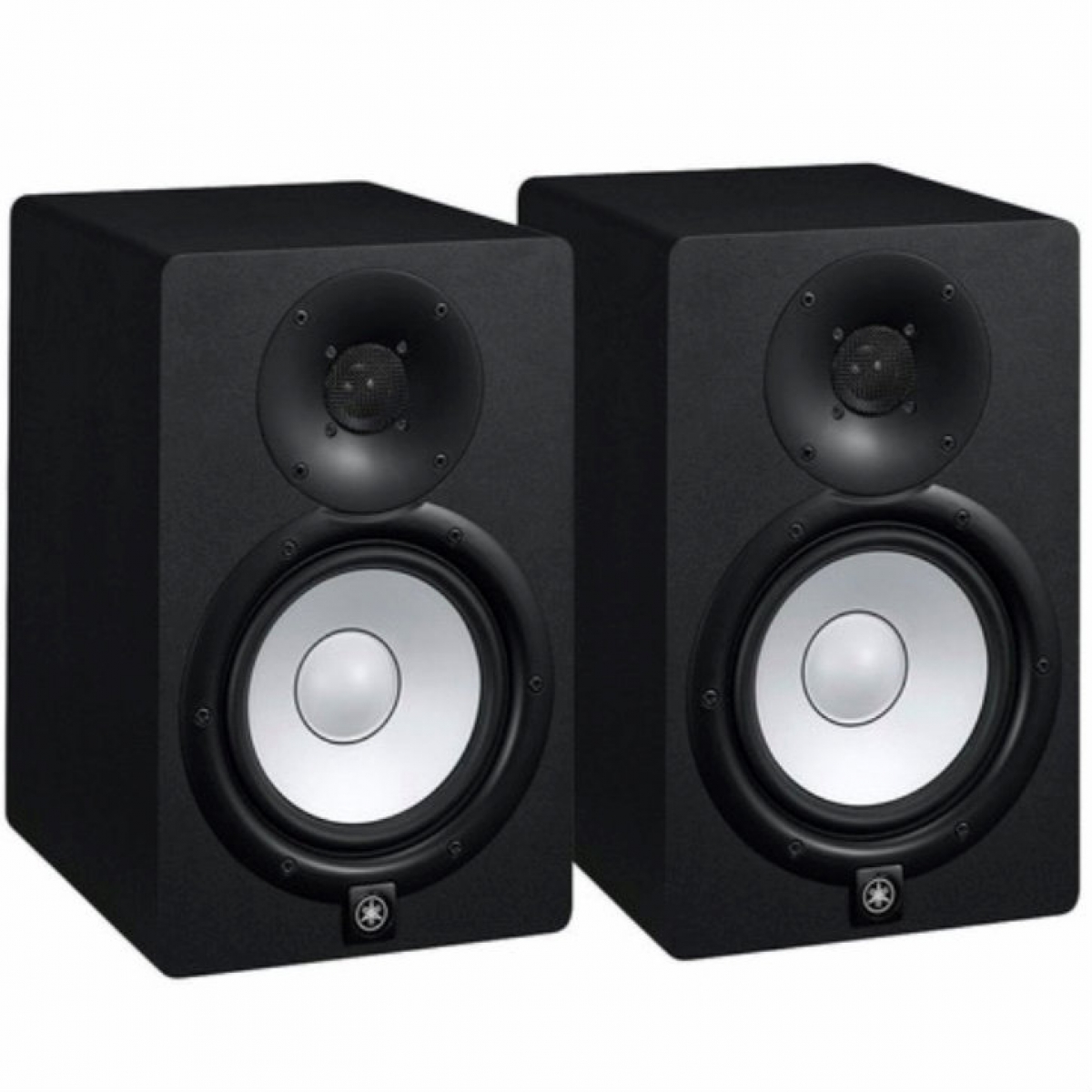

2-way bass-reflex bi-amplified nearfield studio monitor with 5″ cone woofer and 1″ dome tweeter.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 5″ cone woofer and 1″ dome tweeter
- 54Hz – 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
Specs
General specifications
Speaker type | 2-way bi-amp powered studio monitor | |
---|---|---|
Frequency range (-10dB) | 54Hz – 30kHz | |
Components | LF | 5″ cone |
HF | 1″ dome | |
Crossover | 2kHz | |
Output power | 70W (LF:45W, HF:25W) | |
I/O connectors | XLR3-31 type (balanced), PHONE (balanced) | |
Power consumption | 45W | |
Shape | Bass-reflex type | |
Cabinet material | MDF | |
Dimensions | W | 170mm (6.7″) |
H | 285mm (11.2″) | |
D | 222mm (8.7″) | |
Net weight | 5.3kg (11.7 lbs.) | |

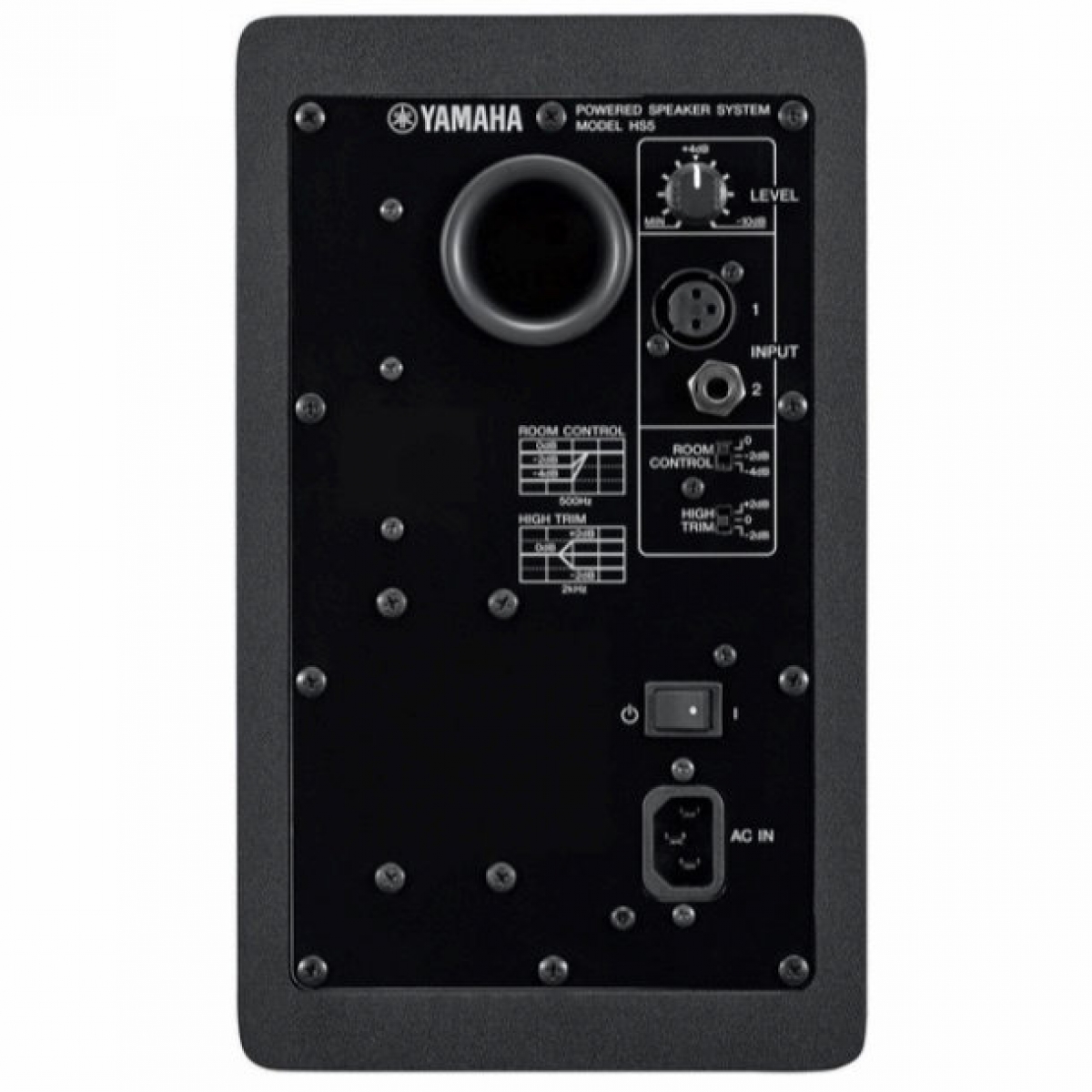

Others | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
