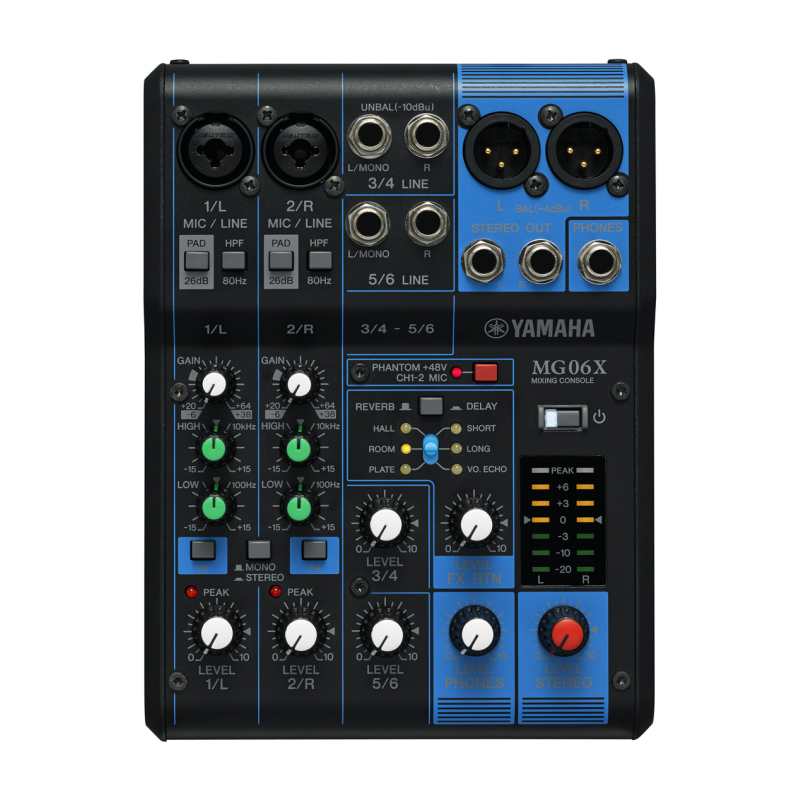

Yamaha MG06X Mixer

£229.00
£248.00

Great Value Mixer

6 Channel Mixing Console.

  • 6 Channels
  • 1 Stereo Bus
  • +48V Phantom Power
  • PAD Switch
In Stock
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout
  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
  • Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9″x 2.4″x 7.9″)
  • Net Weight: 0.9 kg (1.98 lbs.)

Specs

Outline

Mixing capability On-board processors SPX algorithm: 6 programs
I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
PHONES 1
Bus Stereo: 1
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

General specifications

Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -88 dB
Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption 12 W
Dimensions W 149 mm (5.9″)
H 62 mm (2.4″)
D 202 mm (7.9″)
Net weight 0.9 kg (1.98 lbs.)
Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others Operating Temperature: 0 to +40˚C
