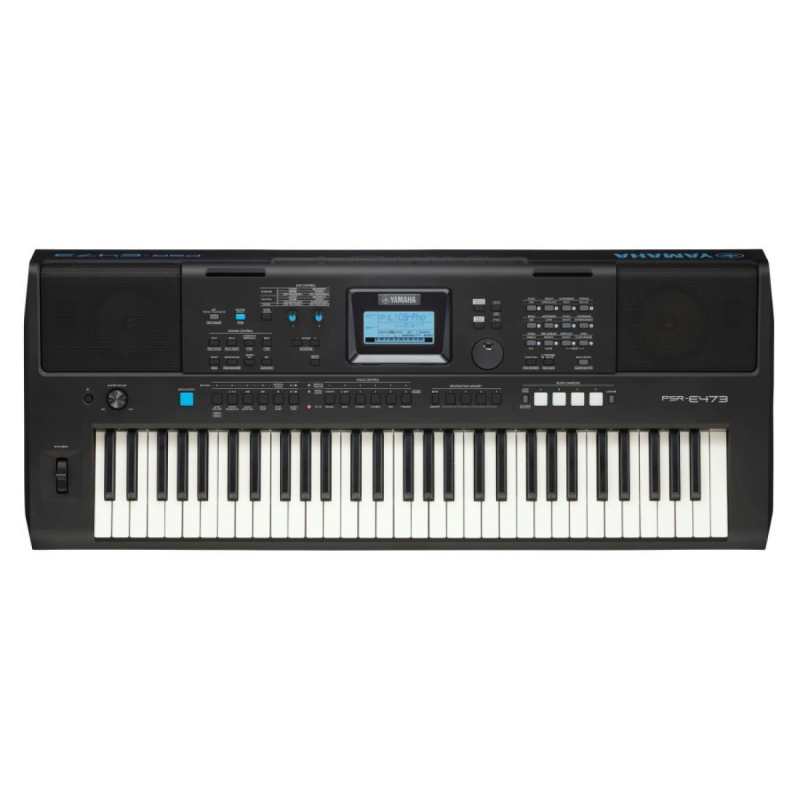

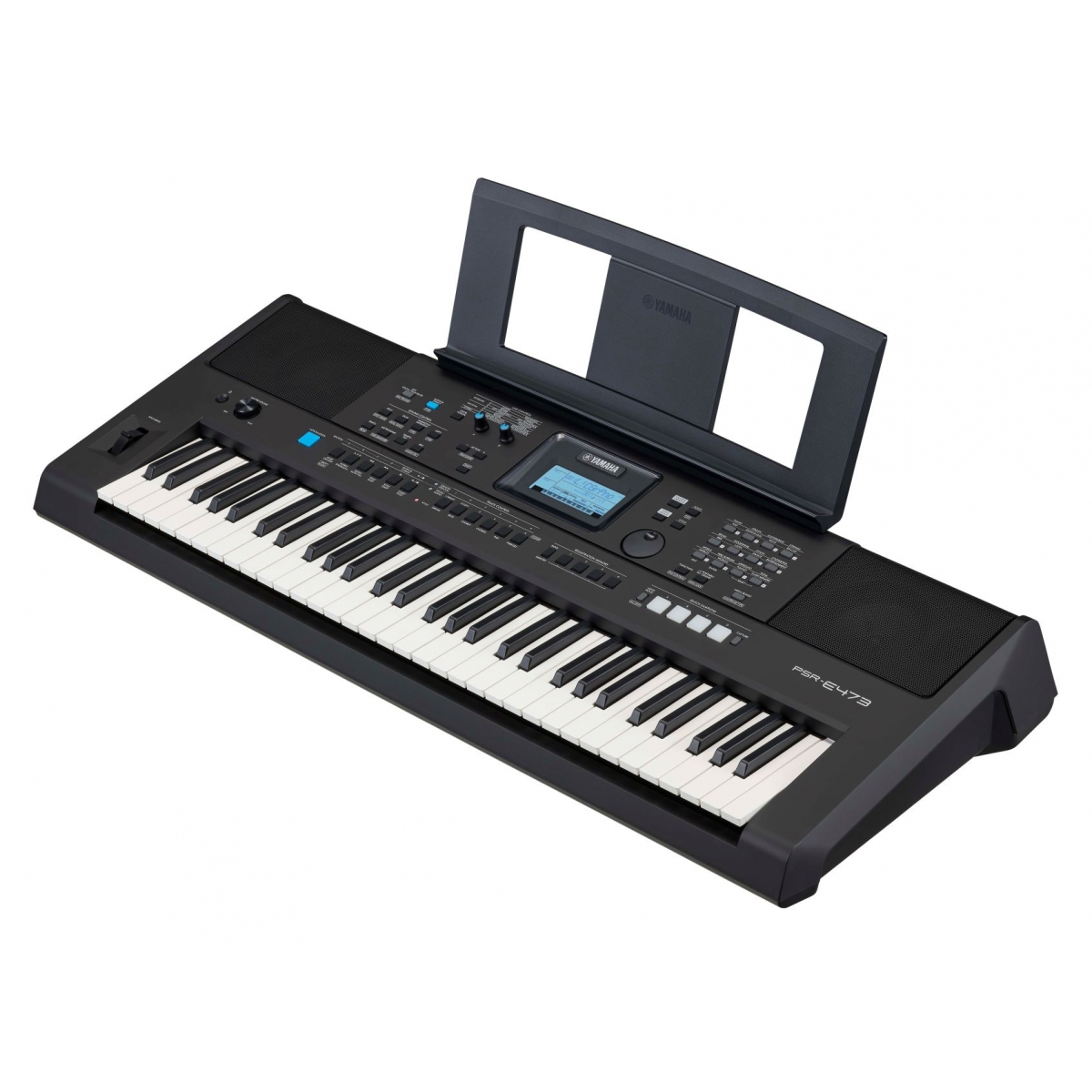

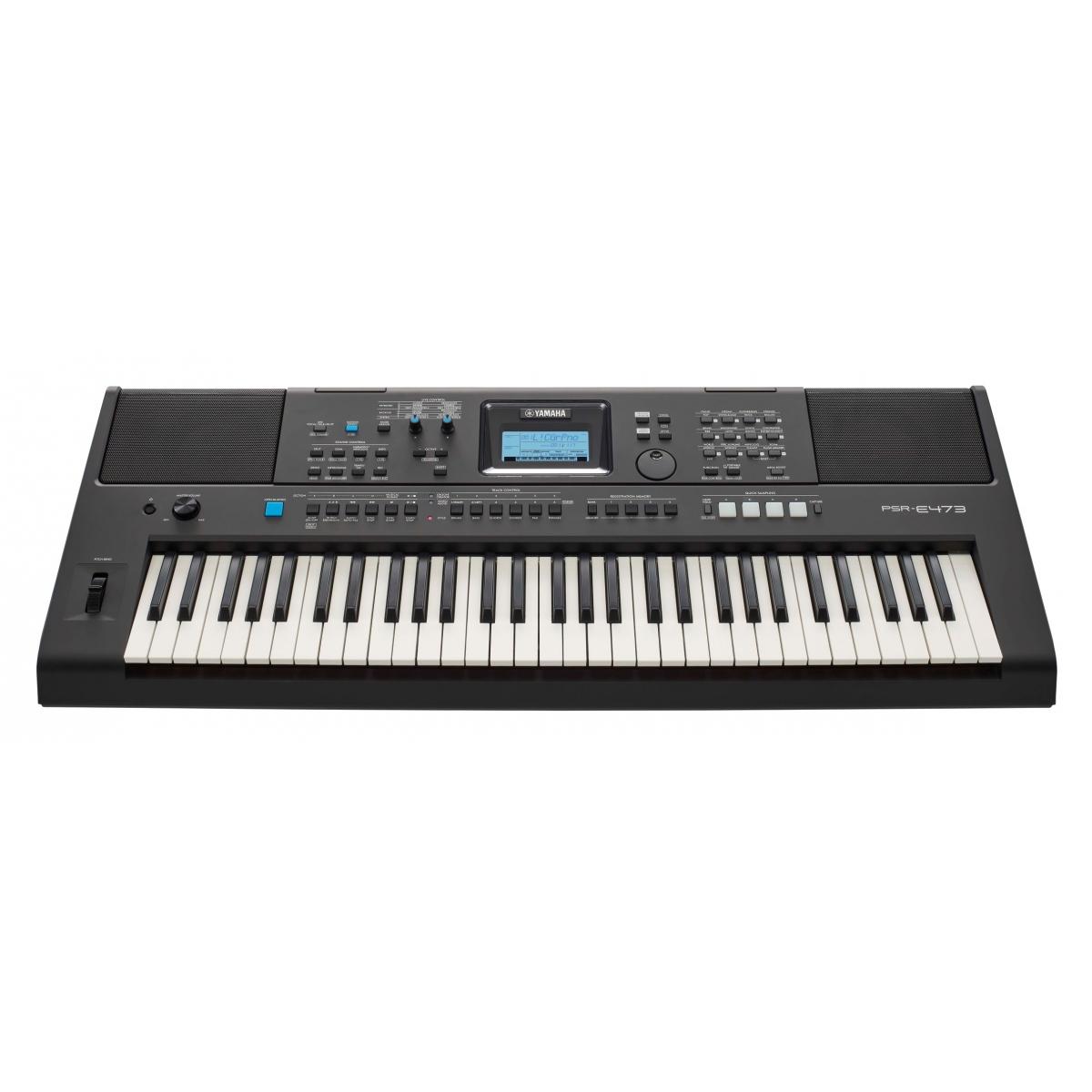

Yamaha PSR-E473
A revolution in portable music
The touch-sensitive keyboard and powerful sound engine of the PSR-E473 bring together superb sound and great feel in an all-new portable instrument.
Sound like a pro!
The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.
Express yourself
Yamaha revamped the control panel and LCD, phased out the numeric keypad, added Direct Category Access buttons.
The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.
With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you’re hearing in your head.
Connect and share
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec’n’Share app to share your music with the world, and hook into PA systems to perform on stage.
PSR-E473 New
The PSR-E400 series is an excellent all-round 61-key keyboard that is ideal as a starter instrument but also represents a robust alternative for experienced players. The latest PSR-E473 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high quality effects such as delays.
820 Voices and Super Articulation Lite Voices
290 Styles
2 channels/41 types of DSP insertion effects
Quick Sampling
Groove Creator
Live Control Knobs, Motion Effect functionality, pitch bend wheel
Mega Boost
Direct Category Access buttons
USB Audio Recording/Interface
Mic input and vocal effects
Individual L/R outputs
Size/Weight
Width: 992mm (39-1/16”)
Height 404mm (15-7/8”)
Depth: 136mm 5-3/8”)
Weight: 7.0kg (15lb, 7oz) not including batteries
Control Interface
Keyboard
Number of Keys: 61
Touch Response: Soft, Medium, Hard Fixed
Other Controllers
Pitch Bend Wheel: Yes
Knobs: 2
Panel
Language: English
Voices
Tone Generation
Tone Generation Technology: AWM Stereo Sampling
Polphony
Number of Polyphony (Max.): 64
Preset
Number of Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Compatibility
XGlite
Effects
Types:
Reverb: 12
Chorus: 5
Master EQ: 4
DSP: DSP1:41 DSP2:12
Accompaniment Style
Preset
Number of Styles: 290
Fingering: Multi-finger, Smart Chord
Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
External Styles: 10
Other Features
One Touch Settings (OTS): Yes
Compatibility: Style File Format (SFF)
Groove Creator
Preset
Number of Grooves: 35
Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
Songs (MIDI)
Preset
Number of Preset Songs: 30
Recording
Number of Songs: 10
Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
Data Format
Playback: SMF Formats 0&1
Recording: Original File Format (SMF 0 conversion function)
USB Audio Recorder
Recording Time (max): 80 minutes (approx. 0.9GB) per song
Format
Playback: WAV(44.1 kHz, 16 bit, stereo)
Recording: WAV(44.1 kHz, 16 bit, stereo)
Quick Sampling
Sampling Type: Oneshot, Loop
Samples (Preset/User): 4
Sampling Time: Approx. 9.6sec
Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format: Original File Format (16 bit, stereo)
Sampling Rate: 44.1kHz
Functions
Voices
Dual Split: Yes
Split: Yes
Harmony: 26
Arpeggio: 152
Articulation: Yes
Registration Memory
Number of Buttons: 9
Control: Freeze
Overall Controls
Metronome: Yes
Tempo Range: 11 – 280
Transpose: -12 – 0 – +12
Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments)
Octave Button: Yes
Scale Type: 5 types
Miscellaneous
PIANO Button: Yes
Demo: Yes
Melody Suppressor: Yes
Crossfade: Yes
USB Audio Interface: 44.1 kHz, 16 bit, stereo
Motion effect: 57
Mega Boost: 2 steps (approx. +3 dB, and +6 dB)
Storage and Connectivity
Storage
Internal Memory> Approx. 1.72MB
External Drives: USB flash drive
Connectivity
DC IN: 12V
Headphones: Standard stereo phone jack
Microphone: Yes
Sustain Pedal: Yes
AUX IN: Yes Stereo Mini Jack
AUX OUTPUT: Standard stereo phone JACKS [L/L+R] [R]
USB TO DEVICE: Yes
USB TO HOST: Yes
Sound System
Amplifiers: 6W + 6W
Speakers: 12cm x 2
Power Supply
AC Adapter: V PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A)
Batteries: Six 1.5 V “AA” size alkaline (LR6), manganese (R6) or six 1.2 V “AA” size Ni-MH rechargeable batteries (HR6)
Power Consumption: 9 W (When using PA-150 AC adaptor)
Auto Power Off: Yes
Accessories:
Owner’s Manual
AC adaptor (PA-150 (PSR-E473)/ PA-300C (PSR-EW425) or an equivalent recommended by Yamaha)
Music Rest
