Zoom
B6 FEATURES
- 4 DI models: 2 tube and 2 solid state models
- Integrated A/B switcher for seamless instrument switching
- Ultimate Zoom FX processor technology with amp modeling
- Integrated pedal board with 9 stomp switches
- IR load function for speaker cabinet simulation
- 4.3˝ color LCD touch-screen interface
- Chain up to 6 effects (including amp emulation)
- Two variable-impedance inputs for electric and acoustic bass
- New Play Mode Footswitch provides instant access to different play modes
- Easy-to-see backlit panel with color-coded stomp effects
- Built-in USB audio interface (2-in / 2-out)
- Rhythm patterns and looper
- Compatible with Zoom Guitar Lab
- Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab for B6 app
- Accessibility functionality for the visually impaired with Handy Guitar Lab for B6 app

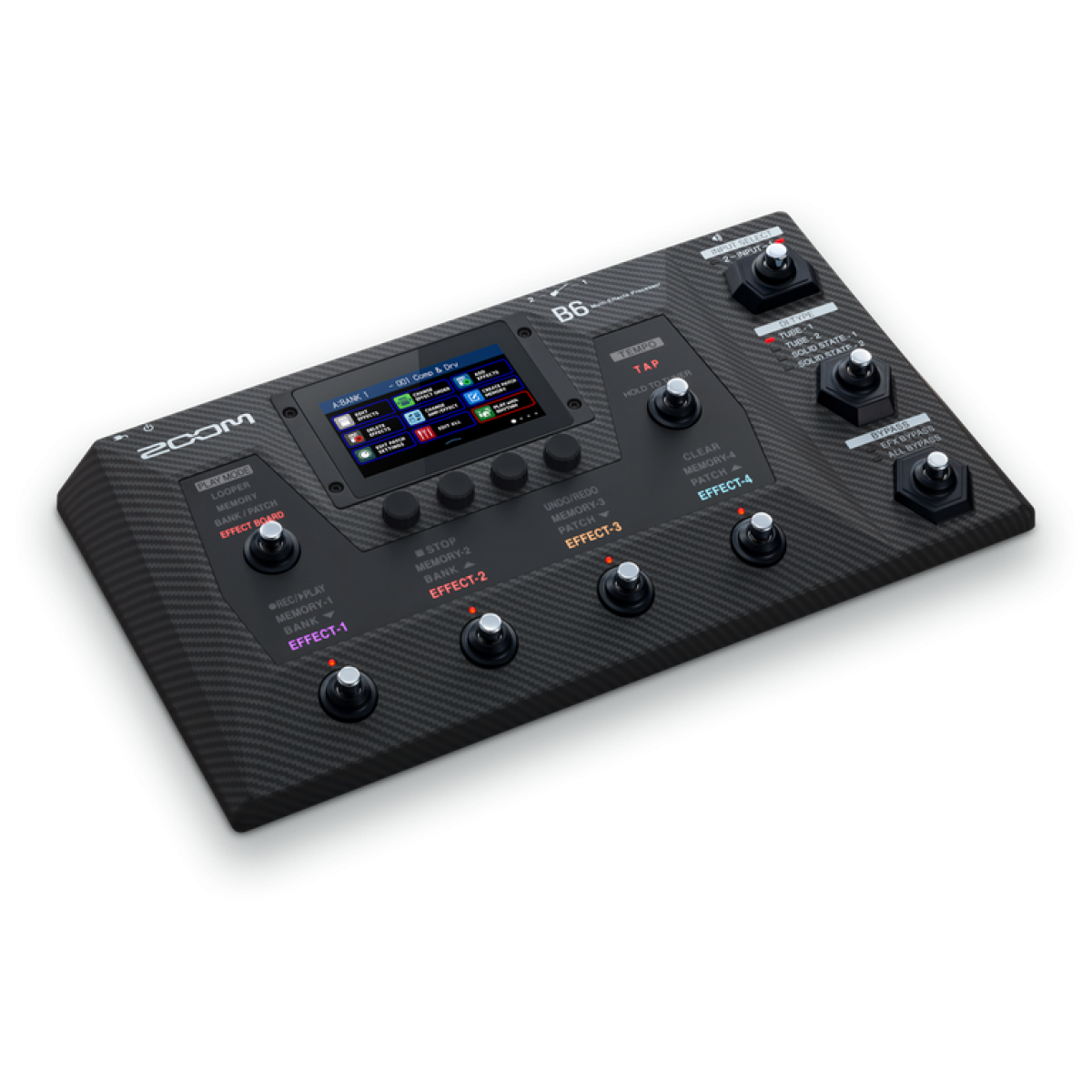

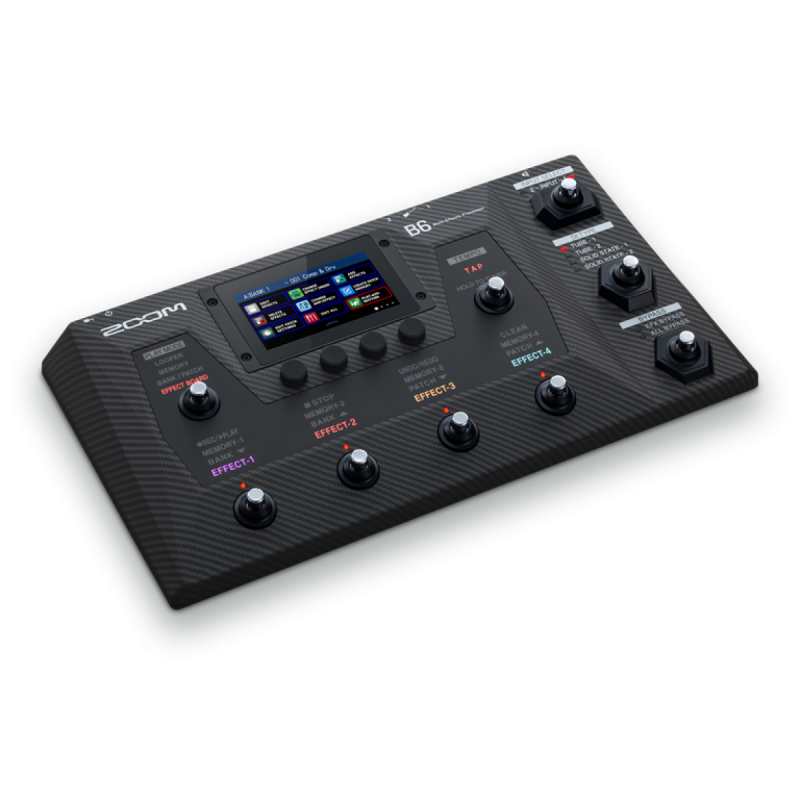

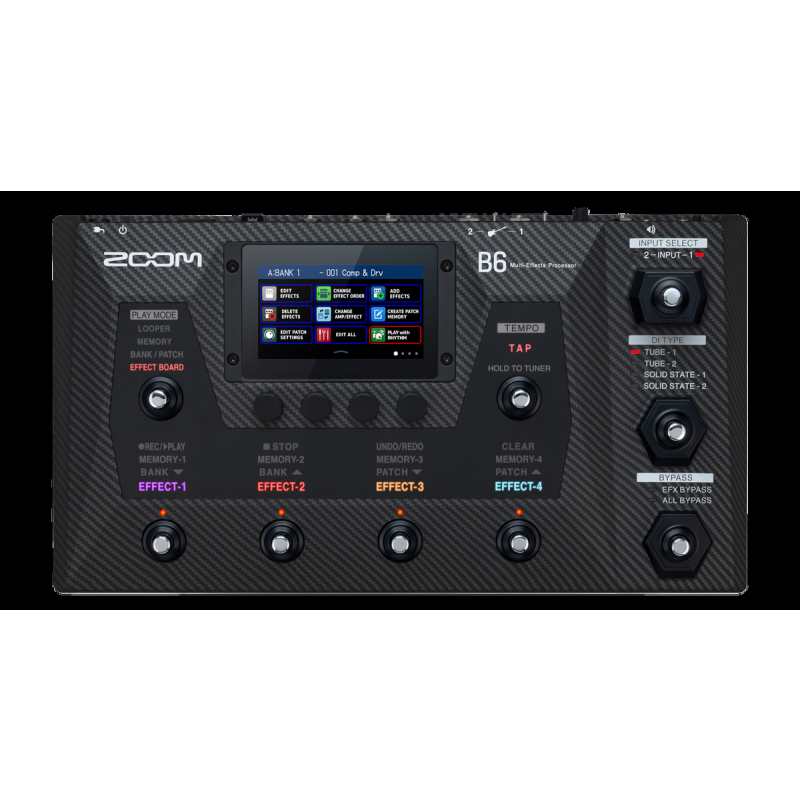

THE ZOOM B6
WITH 4 WORLD-CLASS DI BOXES, THE B6 IS OUR MOST ADVANCED MULTI-EFFECTS BASS PROCESSOR EVER
FOR BASS PLAYERS ONLY
With four DI models and advanced multi-effects, the B6 gives you freedom to explore entirely new sounds.
SUPER-FAT BOTTOM END
Our new analog circuit, combined with the DI section vastly improves the low-frequencies of your instrument.
SUPER-FINE TOP END
With an 88.2 kHz effects processor, double the rate of others, the B6 has your high end covered.
FOUR ICONIC DI MODELS
We meticulously modeled four iconic DI boxes to give you a wide variety of tonal options.
BUILT FOR YOUR SIGNIFICANT OTHER
Separate inputs allow you to A/B switch from electric bass to synth or acoustic bass, and back again.
Both inputs let you change the impedance from 1M to 10M ohms, giving you a cleaner tone for upright basses equipped with piezo pickups.
DETAILED AMP MODELING
The B6 features 11 of the best amp models in history, plus a couple of new ones.
SPECS
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 6
USER PATCHES: 240
SAMPLING FREQUENCY: 88.2KHz
A/D CONVERSION: 24-bit 128x oversampling
D/A CONVERSION: 24-bit 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz ～ 40 kHz +0.5 dB –0.5dB（10 kΩ load）
DISPLAY: 4.3″ TFT color LCD (480 x 272 pixels)
INPUTS
INPUTS 1/2: Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line)：1 / 10 MΩ（Select by Switch）
RETURN: Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line): 1 MΩ
AUX IN: Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 10 kΩ
OUTPUTS
AMP OUT/PHONES Standard mono phone jack
Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)
Headphones 24 mW + 24 mW (at 32 Ω load)
OUTPUT XLR jack
Impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
GND LIFT (Select by switch)
SEND Standard stereo phone jack
Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)
NOISE FLOOR (RESIDUAL NOISE)
AMP OUT/PHONES -96.0 dBu
OUTPUT -100.0 dBu
SEND -99.0 dBu
CONTROL INPUT FP02M input
POWER AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
USB Port: USB 2.0 Micro-B/Supported cable type: Micro-B
Guitar Lab: USB 1.1 Full Speed
Audio Interface: USB 2.0 Full Speed, 44.1 kHz(32-bit)/88.2kHz(16-bit), 2 in, 2 out
– Use a USB cable that supports data transfer. USB bus power is not supported
SD CARD
STANDARDS Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
LOOPER 44.1 kHz/ 16-bit stereo WAV
IR 44.1 – 192kHz, 16/24/32-bit WAV
REMOTE ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS 228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT 1.89 kg
Note: 0 dBu = 0.775 V
