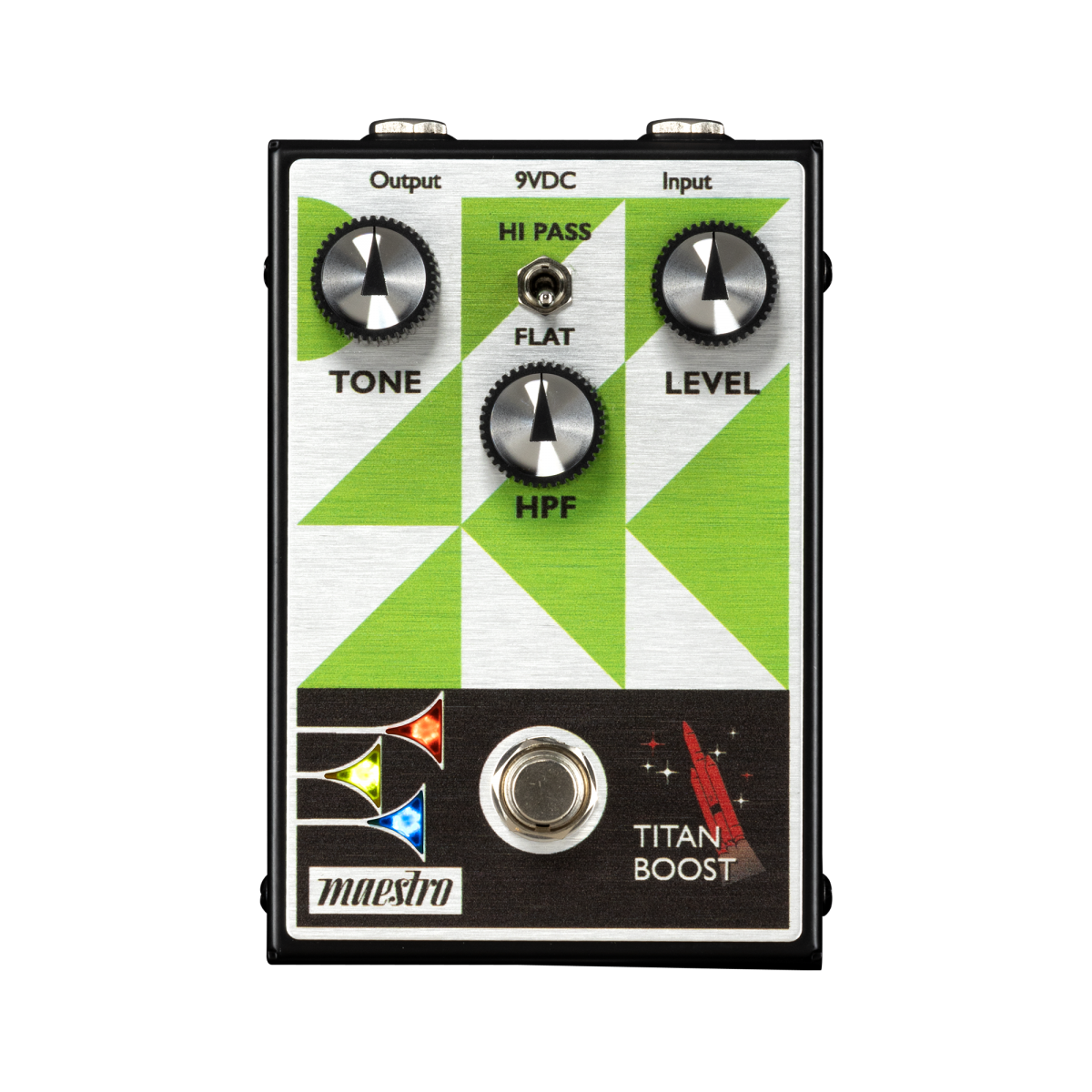

Maestro Titan Boost
The Ultimate Tone-Sculpting Boost Pedal
The Maestro Titan Boost provides over 25 dB of clean boost, so it can easily drive any tube amp into natural overdrive. Even better, it’s designed to be the ultimate tone-sculpting boost. Equipped with a classic Tone control and a variable HI-Pass filter, any high-frequency shrillness can be easily dialed out, and low-end muddiness can be well tamed. The Titan Boost creates the perfect boosted tone, regardless of guitar, pickups, or pickup switch position. The intuitive 3-knob control layout lets you quickly set the desired Tone (which functions as a traditional tone control/variable low-pass filter), HPF (variable high-pass filter), and adjust the Level of the output volume and boost. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
ELECTRONICS PEDAL
Switches
True Bypass footswitch, Flat/Hi-Pass Mode toggle switch
Led Indicators
Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Signal Processing
All-Analog
Power Requirements
9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
Current Draw
38.6 mA
Power On Switch
Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
Input Impedance
400 kOhms
Output Impedance
280 Ohms
Switching Type
True Bypass
Dimensions
5.04" x 3.45" x 2.50" (128.0 mm x 87.6 mm x 63.5 mm)
Weight
Net: 1.20 lb. (544.3 gm.) Gross: 1.56 lb. (707.6 gm.)
