Optimal sound tailored to your environment
The sound produced by speakers is sometimes affected by the surrounding environment.

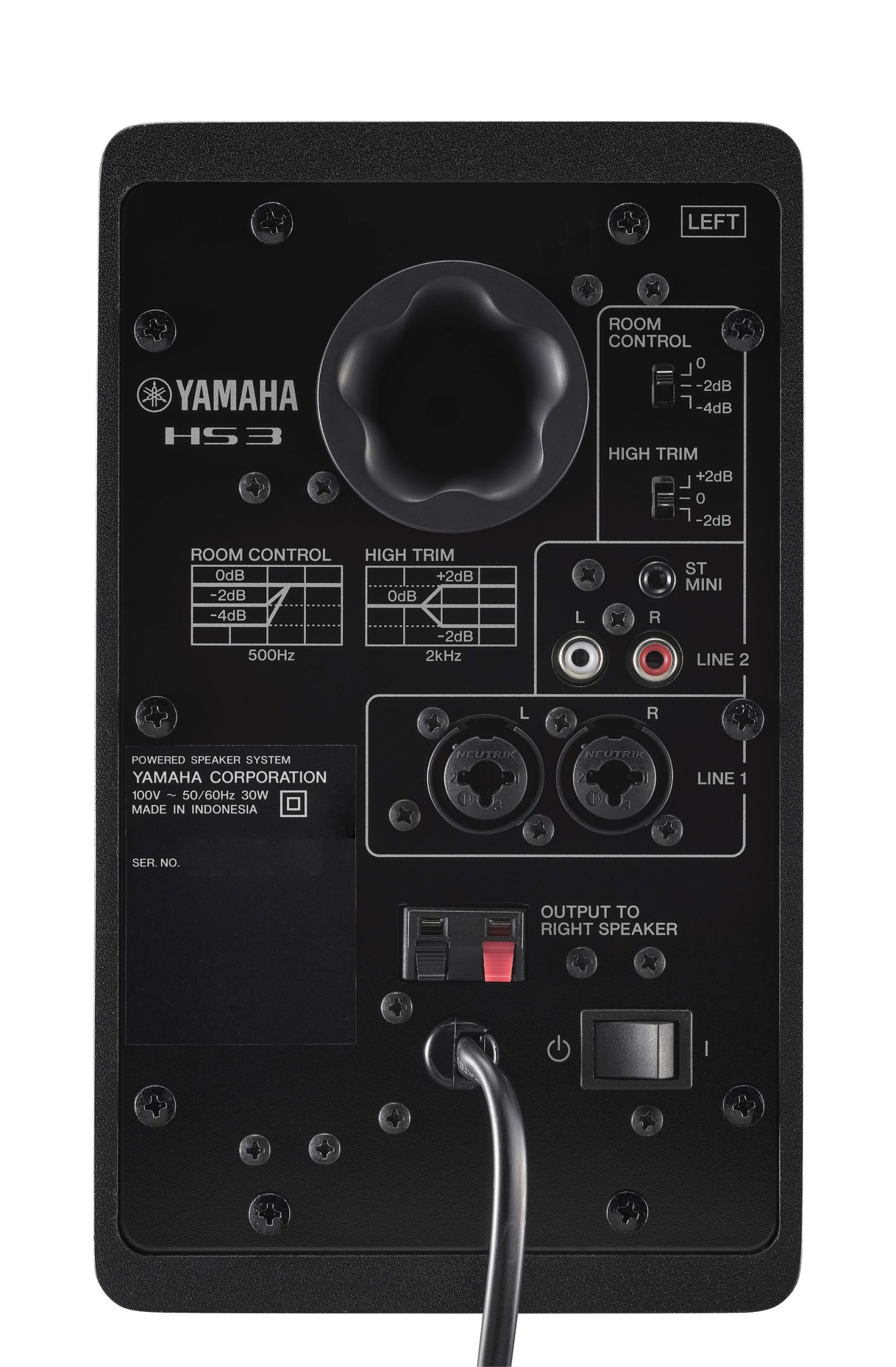

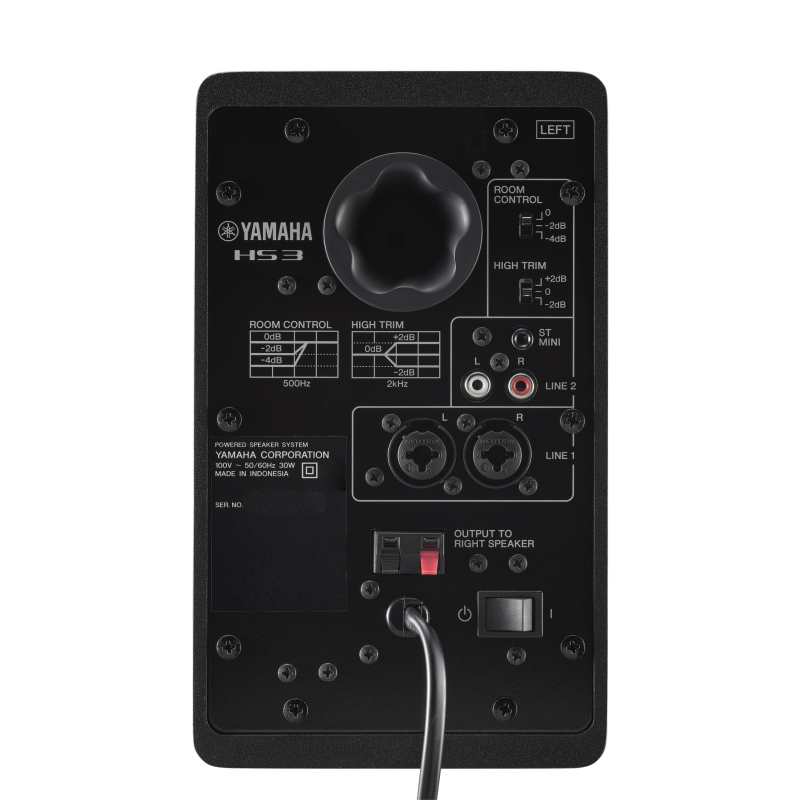

The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.
Inputs and controls to fit any use case
The rear panel of the HS3 and HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features—power button, volume knob, and headphone connector—are located in the front for easy access.
Compact and portable
The compact size of the HS3 and HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

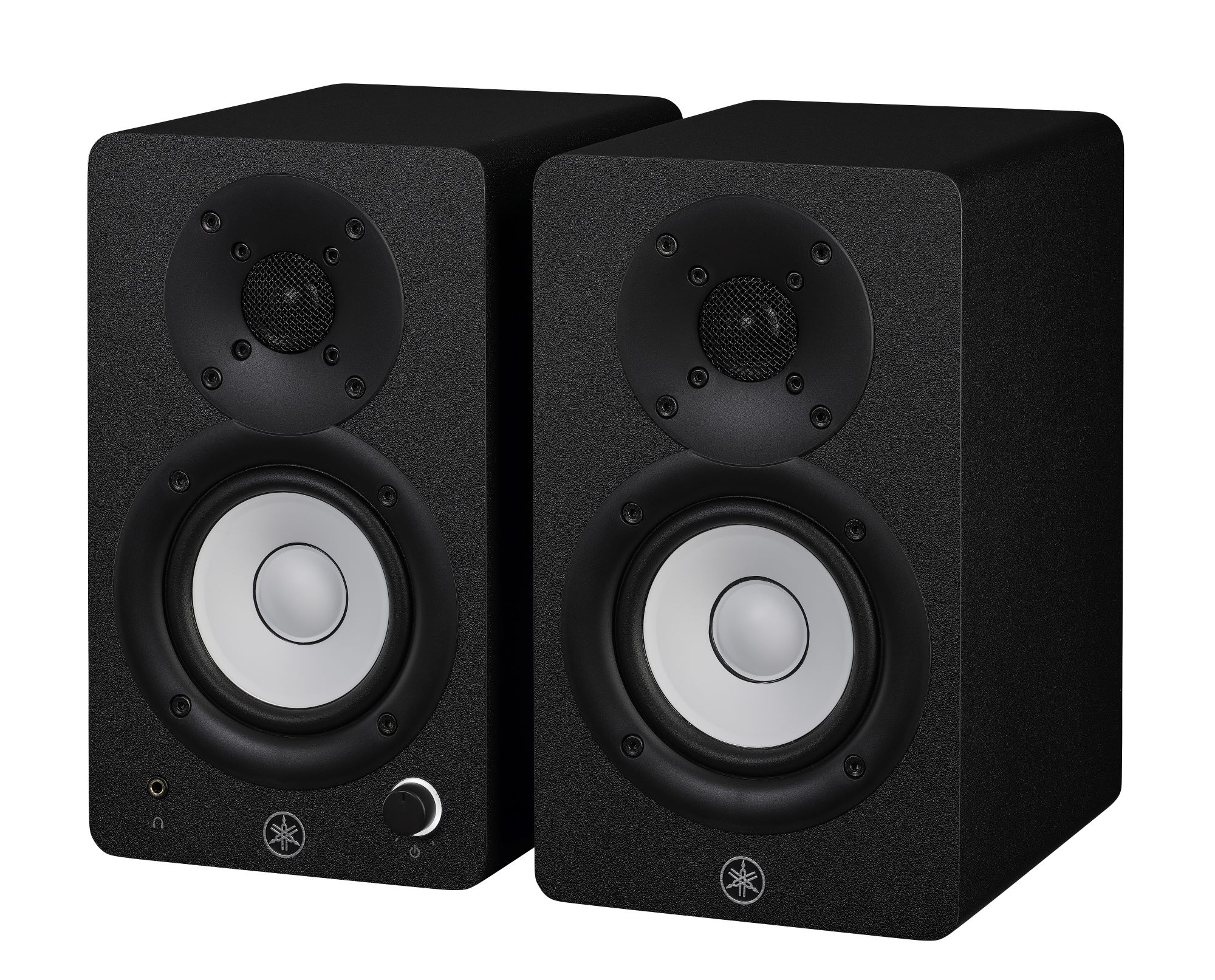

HS3 Powered Studio Monitors
High-quality compact studio monitors for the uncompromising creator
2-way bass-reflex powered speaker with 3.5″ cone woofer and 0.75″ dome tweeter
70 Hz – 22 kHz frequency response (-10 dB)
26 W + 26 W output power (Dynamic, RL=6 Ω)
ROOM CONTROL and HIGH TRIM response controls
XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
Stereo mini – RCA cable, speaker cable, and anti-slip pad included
Packaging: Pair
General specifications
Speaker type – 2-way powered speaker, Bass-reflex type
Frequency response (-10dB) – 70 Hz – 22 kHz
Frequency response (-3dB) – 85 Hz – 20 kHz
Crossover – 3.2 kHz
Maximum Output Level (Measured peak, IEC noise@1m) – 100 dB SPL
Components HF – 0.75″ Dome
Components LF – 3.5″ Cone
Nominal impedance – 6 ?
I/O connectors – [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
Output power – 26 W + 26 W (Dynamic, RL=6 ?), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 ?)
Input sensitivity – LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
Input Level – LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
Input impedance – LINE 1 (COMBO): 20 k?, LINE 2 (RCA, ST Mini): 10 k?
Controls – Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
Indicators – Power ON (White LED)
Power requirements – Depending on area of purchase; 100-240 V, 50/60 Hz (*)
Power consumption – 15 W
Cabinet material – MDF
Dimensions
W – L Side: 132 mm (5.2″), R Side: 132 mm (5.2″)
H – L Side: 223 mm (8.8″), R Side: 223 mm (8.8″)
D – L Side: 189 mm (7.4″), R Side: 177 mm (7.0″)
Net weight – L Side: 2.8 kg (6.2 lb), R Side: 2.1 kg (4.6 lb)
Accessories – Stereo Mini – RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
Packaging – Pair
- While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.
